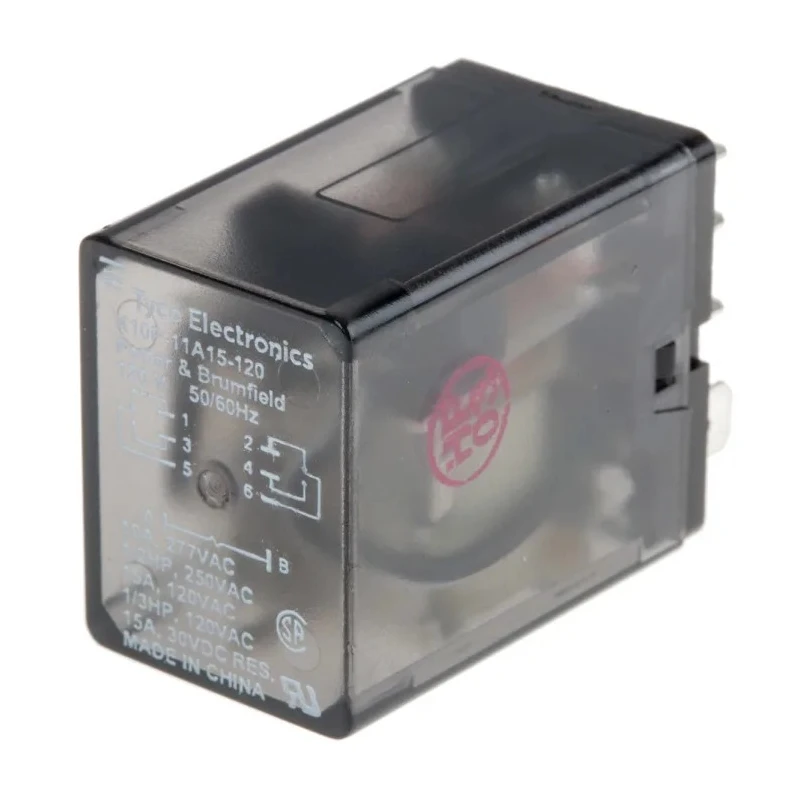

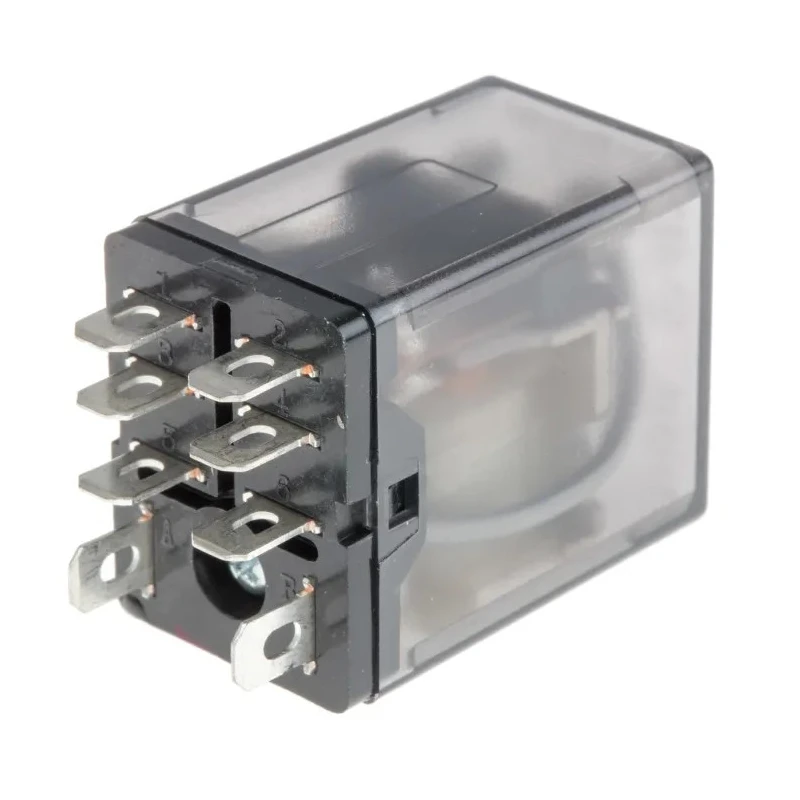

TE Connectivity Power Relay 120V AC Coil, 15A Switching Current, DPDT Contact Configuration K10P-11A15-120
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 34.9mm |
| Length | 28.2mm |
| Model | K10P-11A15-120 |
| Width | 21.8mm |
| Contact Material | Silver Alloy |
| Series | K10 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 15A |
| Terminal type | Quick Connect |
| Standards/Approvals | UL, CSA, UR |
| Coil Resistance | 3.9kΩ |
| Coil Voltage | 120V ac |
| Switching AC Voltage | 600V ac |
Key Features
- The relay operates with a coil voltage of 120V AC ensuring reliable electromagnetic switching.
- DPDT (Double Pole Double Throw) contact configuration allows versatile switching applications.
- It supports a switching current rating of 15A for handling significant electrical loads.
- Constructed with silver alloy contacts for durable and efficient conductivity.
- Complies with UL, CSA, UR standards ensuring quality and safety in use.
- Compact dimensions of 34.9mm height, 28.2mm length, and 21.8mm width for space-saving installations.
- Operating temperature range from -45°C to +70°C suitable for harsh environments.
- Quick connect terminal type allows fast and secure electrical connections.
Product Description
TE Connectivity K10P-11A15-120 Power Relay is a high-quality miniature general purpose relay suited for electrical and automation systems. It features a 120V AC coil voltage and supports a switching current of 15 amperes, making it suitable for controlling sizable electrical loads in industrial, HVAC, manufacturing, and automation applications.
This relay offers a Double Pole Double Throw (DPDT) contact configuration, facilitating dual-switching circuits in compact form. Its silver alloy contacts provide reliable conductivity and longevity, while the rapid quick connect terminals streamline installation and maintenance processes.
Designed to operate efficiently in temperature ranges from -45°C to +70°C, this relay ensures stable performance even under demanding environmental conditions. Measuring 34.9mm in height, 28.2mm in length, and 21.8mm in width, it fits well in compact control panels.
It holds certifications including UL, CSA, and UR, attesting to its adherence to safety and performance standards. The coil resistance of 3.9kΩ and coil power of 1.35VA contribute to its optimized energy consumption.
The relay operates with a coil voltage of 120V AC ensuring reliable electromagnetic switching. DPDT (Double Pole Double Throw) contact configuration allows versatile switching applications. It supports a switching current rating of 15A for handling significant electrical loads.
Constructed with silver alloy contacts for durable and efficient conductivity. Complies with UL, CSA, UR standards ensuring quality and safety in use. Compact dimensions of 34.9mm height, 28.2mm length, and 21.8mm width for space-saving installations.
Operating temperature range from -45°C to +70°C suitable for harsh environments. Quick connect terminal type allows fast and secure electrical connections. Coil resistance is rated at 3.9kΩ with 1.35VA coil power consumption.
This power relay is widely used in industrial automation, HVAC systems, manufacturing equipment, and other electrical control applications where reliable switching under moderate to high currents is essential. Its miniature size and robust construction make it highly suitable for both new installations and replacement in existing control panels.
Explore more Power Relay products and accessories at EnvMart to support your electrical and industrial automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 120V AC, enabling reliable electromagnetic switching.
This model supports a maximum switching current of 15A, suitable for handling significant electrical loads.
The K10P-11A15-120 relay features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile switching applications.
This power relay measures 34.9mm in height, 28.2mm in length, and 21.8mm in width, making it compact for installations.
The operating temperature range for this relay is from -45°C to +70°C, making it suitable for harsh environments.
This relay uses quick connect terminals, which allow for fast and secure electrical connections.
The contacts of this relay are constructed from silver alloy, providing reliable conductivity and longevity.
This relay complies with UL, CSA, and UR standards, ensuring quality and safety in its use.
The coil resistance of the K10P-11A15-120 is rated at 3.9kΩ.
This relay can switch AC voltages up to 600V AC.
This power relay is widely used in industrial automation, HVAC systems, and manufacturing equipment where reliable switching is essential.
The K10P-11A15-120 belongs to the K10 series of relays.
