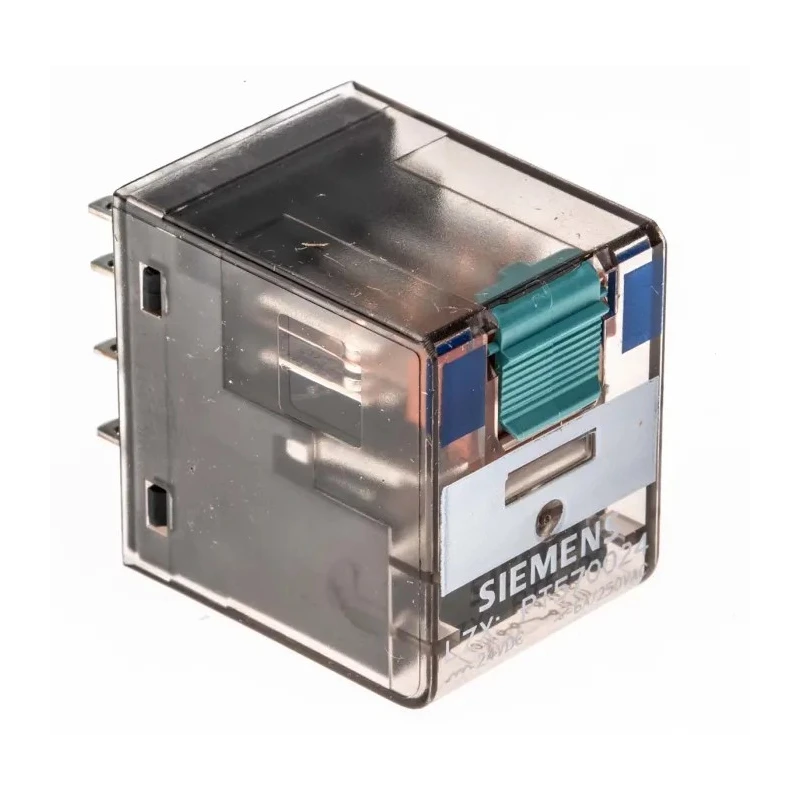

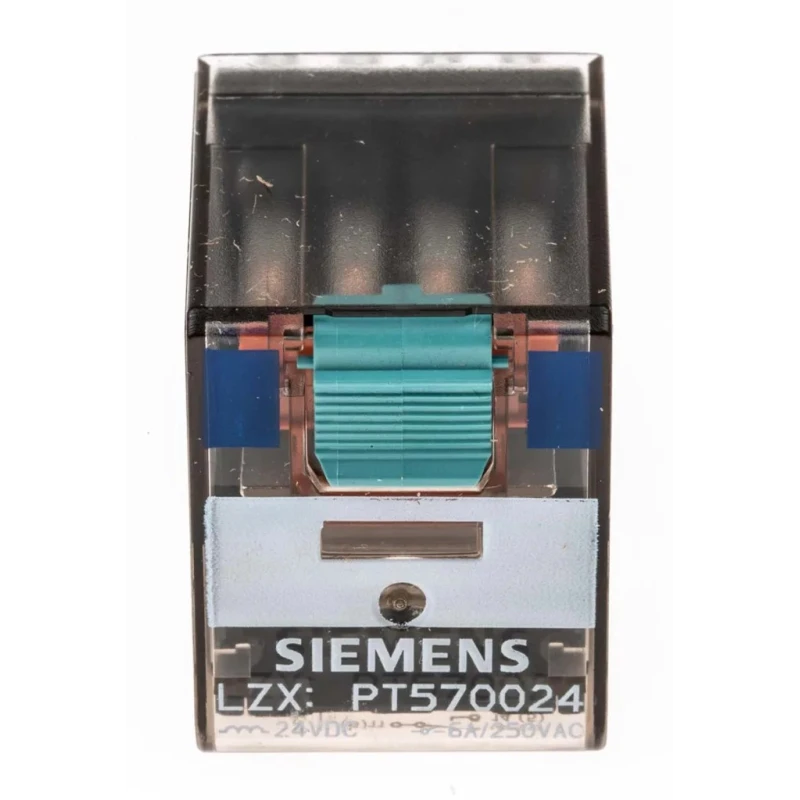

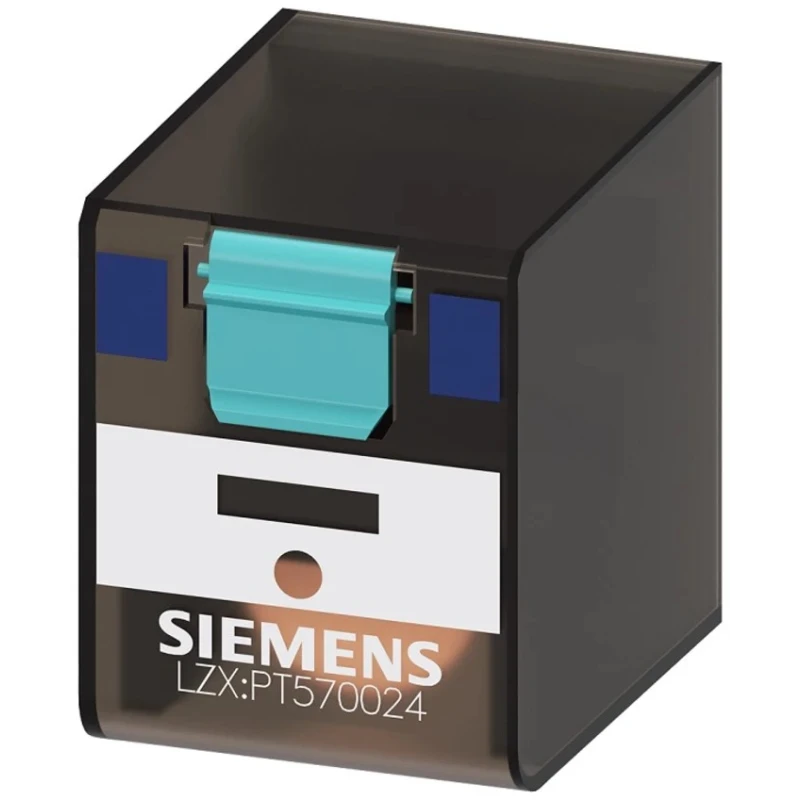

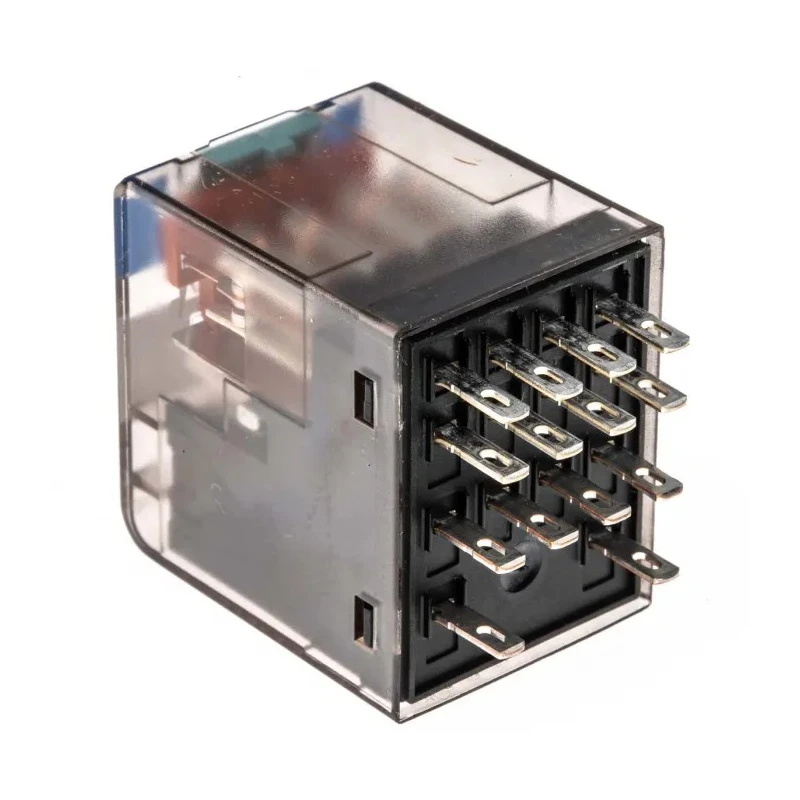

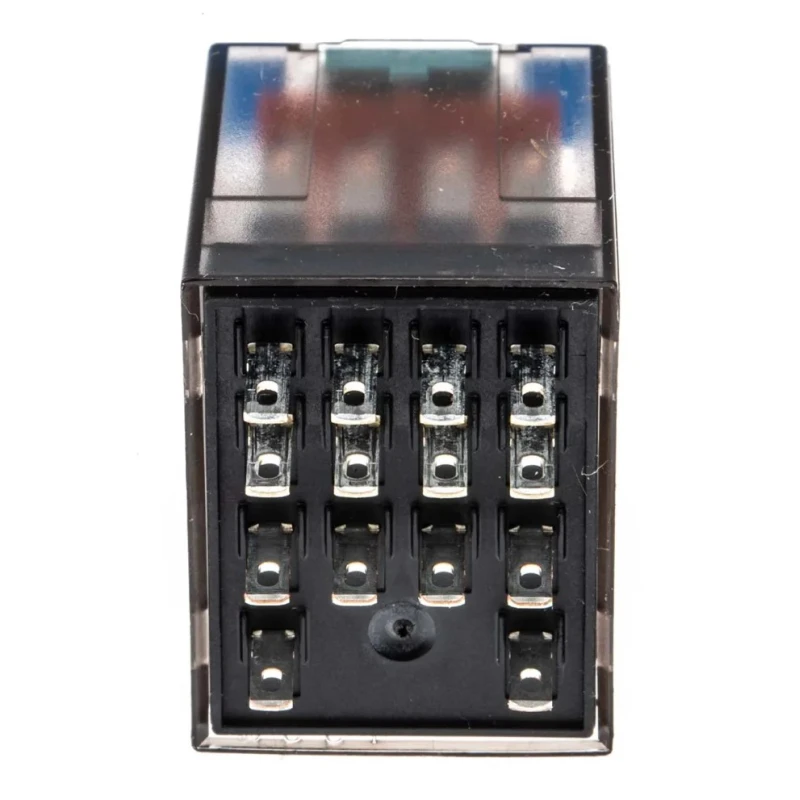

Siemens Power Relay 24V DC Coil 6A Switching Current 4PDT LZX:PT570024

Siemens LZX:PT570024 Power Relay is designed with a 24V DC coil voltage and offers a maximum switching current of 6A, configured as a 4PDT relay. This non-latching relay is ideal for controlling electrical circuits on printed circuit boards (PCBs) and is well suited for industrial, automation, automotive, and audio amplification applications.

The relay features screw-type terminals providing stable electrical connectivity. Its compact form factor, measuring 22.5mm long by 28mm wide and 28mm high, saves valuable installation space in complex system setups. With a coil power consumption of 741mW, it offers energy-efficient operation to reduce power usage.

This relay operates reliably within an ambient temperature range of -40°C to 70°C, ensuring consistent performance under various environmental conditions. The contact material is a silver nickel alloy, known for its excellent electrical conductivity and durability, enhancing the relay’s lifespan.

Designed for switching both 24V DC and 24V AC voltages, this component provides versatile usage across different electrical control scenarios. The non-latching mechanism ensures the relay returns to its resting state automatically when current flow is interrupted, which minimizes power consumption and simplifies control logic.

The LZX series meets multiple international approvals including UL, VDE, CE, EAC, and UKCA, reflecting compliance with important safety and quality standards. The product is manufactured in Austria, providing assurance of high manufacturing standards.

This power relay features a screw terminal for secure, stable electrical connections. Compact dimensions of 22.5mm length, 28mm width, and 28mm height ensure space efficiency in installations. Supports a coil power consumption of 741mW for energy-efficient operation.

Operating temperature range from -40°C to 70°C enables reliable performance in diverse environments. Contact material is a durable silver nickel alloy promoting long-lasting conductivity. Non-latching functionality automatically resets contact position when coil de-energizes.

Compatible with switching voltages of 24V DC and 24V AC for versatile applications. Meets international standards and approvals including UL, VDE, CE, EAC, and UKCA.

As a specialized power relay, the LZX:PT570024 is suitable for a variety of industrial and commercial sectors including automation systems, electronic control panels, audio equipment, and automotive electronics. It ensures efficient electrical switching and reliable circuit control under challenging conditions.
