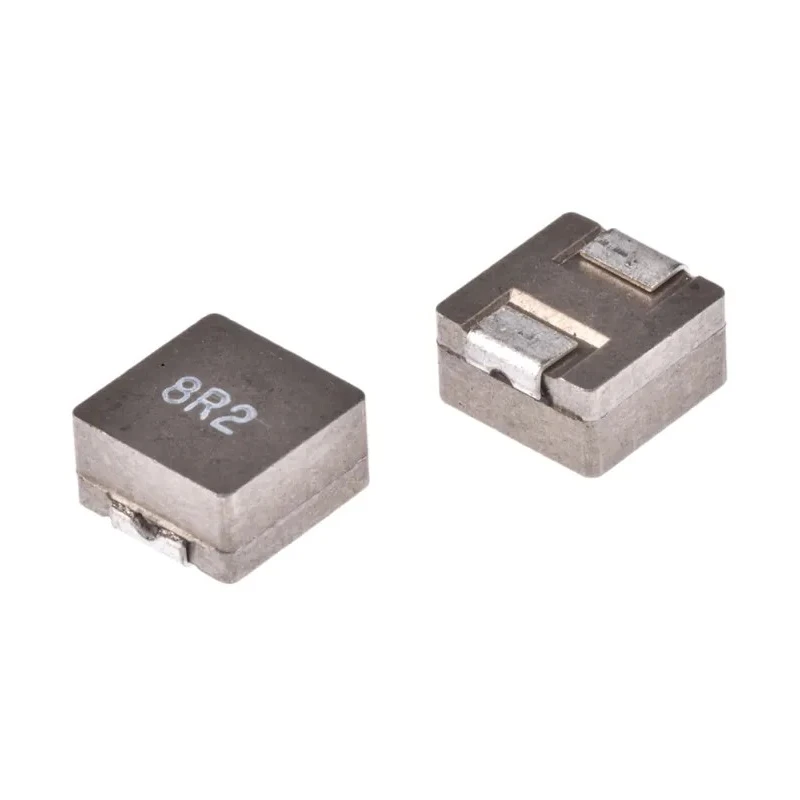

Bourns Shielded Wirewound Surface Mount Inductor with Powdered Iron Core 8.2 μH ±20 % 4.5 A Idc SRP6540

Bourns model SRP6540 is a shielded wirewound Surface Mount Inductor featuring a powdered iron core that delivers an inductance of 8.2 μH with a tolerance of ±20 % and a maximum DC current of 4.5 A. This component is specifically designed to minimize electromagnetic interference through its magnetically shielded construction, making it ideal for sensitive electronic circuitry.

The inductor comes in a 6540 package size, with dimensions tailored for surface mount technology, including a length of 6.5 mm, height of 4 mm, and depth of 7.2 mm. It is molded for mechanical stability and high reliability in harsh operating environments.

It can operate across a wide temperature range, from -55°C to 125°C, suitable for automotive and industrial applications where temperature extremes are common. The maximum DC resistance is 50.5 mΩ, ensuring efficient current flow with minimal losses.

This RoHS compliant inductor is widely used in power electronics, especially in DC/DC converters and power supply circuits for portable equipment, delivering stable performance under demanding load conditions.

The inductor is magnetically shielded to reduce electromagnetic interference. Core material is powdered iron for high saturation current and durability. Compact surface mount 6540 package enables integration in small PCB footprints.

Moulded construction enhances mechanical robustness and reliability. Wide operating temperature range from -55°C to 125°C ensures versatility. Maximum DC resistance of 50.5 mΩ to optimize efficiency.

With these features, the Bourns SRP6540 is well-suited for industrial, automotive, and consumer electronics manufacturing contexts where power inductors are critical components. Explore the full range of inductors and passive components at EnvMart to find optimized solutions for your electronic designs.
