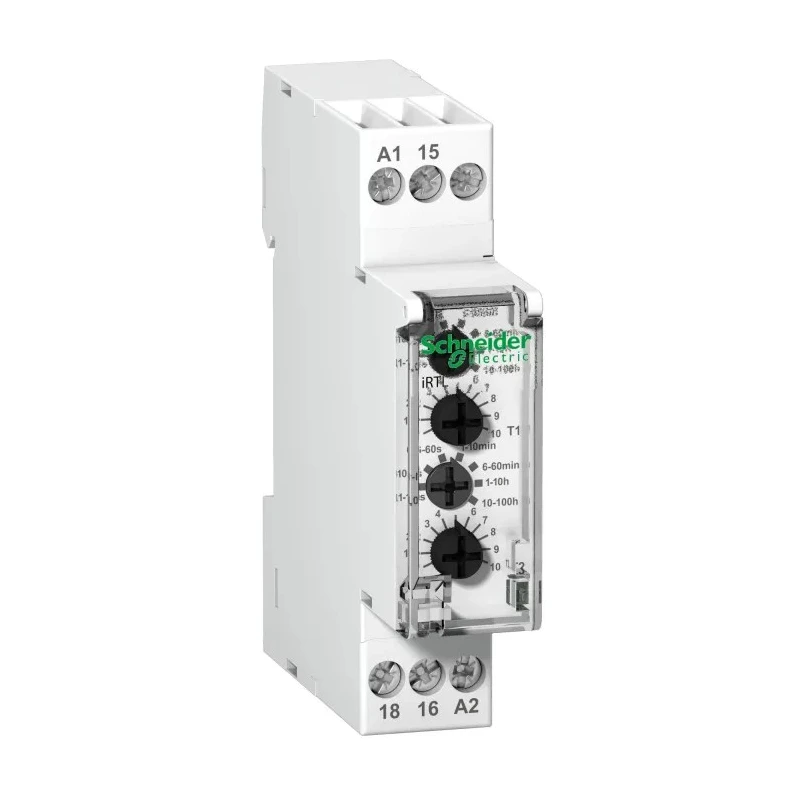

Schneider Electric IRTL Series DIN Rail Timer Relay, 1-Contact, 24 V dc 24V ac, 240 V ac, 0.1 to 360000 s, SPDT A9E16069
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Height | 81mm |
| Length | 66mm |
| Model | A9E16069 |
| IP Rating | IP40 |
| Width | 18mm |
| Mount Type | DIN Rail |
| Series | IRTL |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -5°C |
| Time Range | 0.1 to 360000 s |
| Terminal type | Tunnel |
| Standards/Approvals | RoHS |
| Number of Contacts | 1 |
| Switching Voltage | 240V ac |
| Contact Current | 8A |
| Supply DC Voltage | 24 V dc |
| Timing Adjustment | Knob |
| Supply AC Voltage | 24, 240V ac |
| Schneider Electric IRTL Series Timer Relay, SPDT Switch ConfigurationBrand | Schneider Electric |
Key Features
- Equipped with a single SPDT contact for versatile switching.
- Operates on 24 V DC or 24 to 240 V AC supply voltage.
- Compact DIN rail mount design with dimensions 66mm x 18mm x 81mm.
- Contact current rated at 8A for robust performance.
- Timing adjustment via user-friendly knob control.
- Environmentally protected with IP40 rating for dust resistance.
- Operates reliably between -5°C to 55°C ambient temperatures.
- Tunnel type terminals provide secure wiring connections.
Product Description
Schneider Electric A9E16069 is a high-performance DIN Rail Timer Relay from the IRTL Series, designed for precise time delay control in electrical and industrial automation systems. This relay features a single changeover (SPDT) contact, allowing flexible switching options within circuits.
The timer relay supports a wide operating time range from 0.1 seconds to 360000 seconds (100 hours), making it suitable for various timing applications. Power can be supplied via 24 V DC or 24 to 240 V AC, providing compatibility with diverse control system voltages.
Its compact dimensions (Length 66mm, Width 18mm, Height 81mm) enable easy mounting on standard DIN rails, conserving panel space. The relay's contact rating of 8 amps supports moderate load switching requirements without compromise.
Users can adjust the timing settings easily through the front knob, ensuring convenient configuration during installation or maintenance. The IP40 protection rating safeguards the relay's internal components from solid particles, improving durability in industrial environments.
This timer relay operates efficiently within ambient temperatures ranging from -5°C to 55°C. Its tunnel terminal design ensures secure and reliable electrical connections, reducing potential wiring faults.
Manufactured in France, this product complies with RoHS standards, reflecting Schneider Electric’s commitment to environmental responsibility. Equipped with a single SPDT contact for versatile switching. Operates on 24 V DC or 24 to 240 V AC supply voltage.
Compact DIN rail mount for space-efficient installation. Timing range from 0.1 to 360000 seconds for precise control. Contact current capacity of 8 amps for reliable load handling. IP40 rated for protection against dust ingress.
Operational temperature range between -5°C and 55°C. Tunnel type terminals for secure electrical connections.
This Schneider Electric IRTL Series Timer Relay is ideal for industrial automation, electrical panels, HVAC systems, manufacturing controls, and other commercial applications requiring reliable timed switching. Explore more quality Timer Relays and related automation components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This timer relay has a timing range from 0.1 seconds to 360000 seconds (100 hours), allowing for precise control in various applications.
It operates on 24 V DC or 24 to 240 V AC supply voltage, providing compatibility with a variety of control systems.
The relay features a single changeover (SPDT) contact configuration, which allows for versatile switching options within circuits.
The contact current rating for this model is 8 amps, suitable for moderate load switching requirements.
This model has compact dimensions of 66mm in length, 18mm in width, and 81mm in height, making it suitable for DIN rail mounting.
The relay has an IP40 rating, which provides protection against dust ingress, enhancing its durability in industrial environments.
It operates efficiently within an ambient temperature range of -5°C to 55°C, making it suitable for various environments.
Timing adjustments can be made easily via a user-friendly knob control located on the front of the relay.
It features tunnel type terminals, which ensure secure and reliable electrical connections, reducing potential wiring faults.
This product complies with RoHS standards, reflecting the manufacturer's commitment to environmental responsibility.
This relay is manufactured in France, ensuring adherence to quality standards during production.
It is ideal for industrial automation, electrical panels, HVAC systems, and manufacturing controls, among other commercial applications requiring timed switching.
