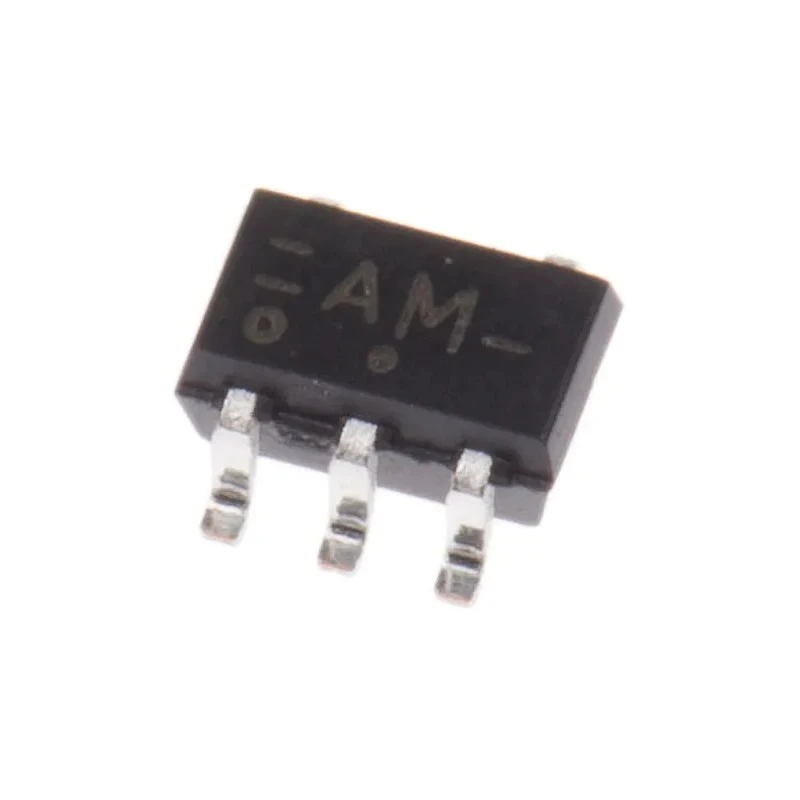

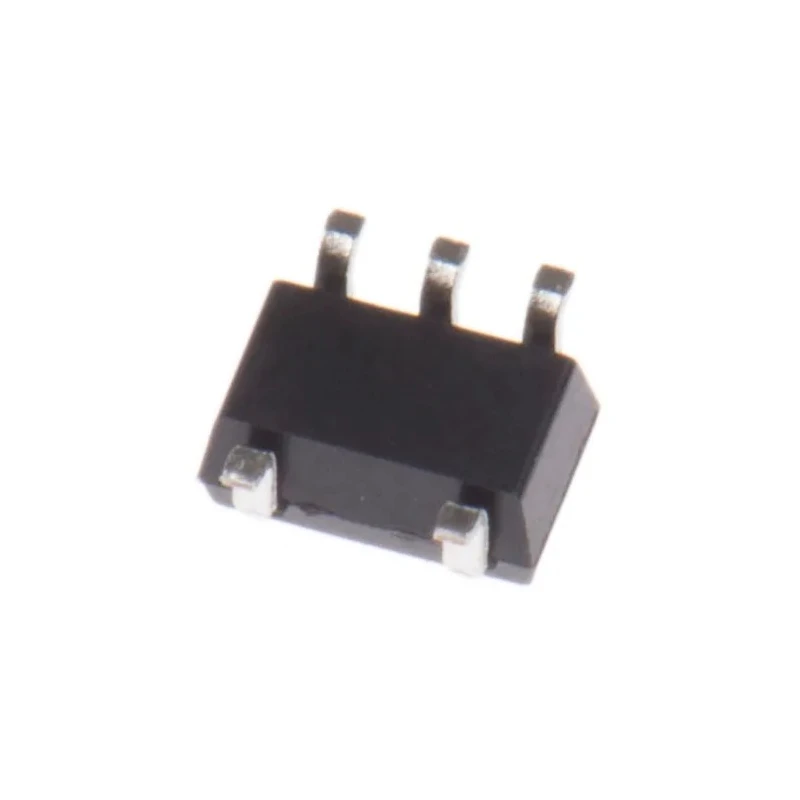

Nexperia Buffer & Line Driver, 3 State, Non-Inverting, 5-Pin TSSOP 74AHC1G125GW,125

The Nexperia 74AHC1G125GW,125 is a high-performance buffer and line driver IC featuring a non-inverting, 3-state output design ideal for electronic interface and signal buffering applications. Packaged in a compact 5-pin TSSOP surface mount form factor, this IC provides efficient signal transmission with minimal propagation delay of 14.5 nanoseconds at capacitive load.

Operating from a low supply voltage range of 2 to 5.5 volts, it supports CMOS input and output stages for compatibility with modern digital circuitry. The device offers a single channel output capable of sourcing or sinking currents up to ±8 milliamps, ensuring robust driving capability for line interface tasks.

It supports a wide temperature range from -40°C to 125°C, making it suitable for diverse industrial and commercial electronic environments. Its low quiescent supply current of 40 microamperes contributes to energy-saving designs. The IC complies with RoHS environmental standards and is manufactured in Malaysia.

Operates within a supply voltage range of 2 to 5.5 volts. Single channel with CMOS input and 3-state CMOS output. Compact 5-pin TSSOP surface mount package. Propagation delay time of 14.5ns at capacitive load. Wide operating temperature range: -40°C to 125°C.

Low supply current of 40μA. Maximum output current of ±8mA. RoHS compliant with Malaysia country of origin.

This buffer and line driver IC is essential for industrial, electronics manufacturing, signal conditioning, and embedded system applications where reliable line interfacing and buffering is required. Explore more semiconductor interface ICs from EnvMart to fit specialized project needs.
