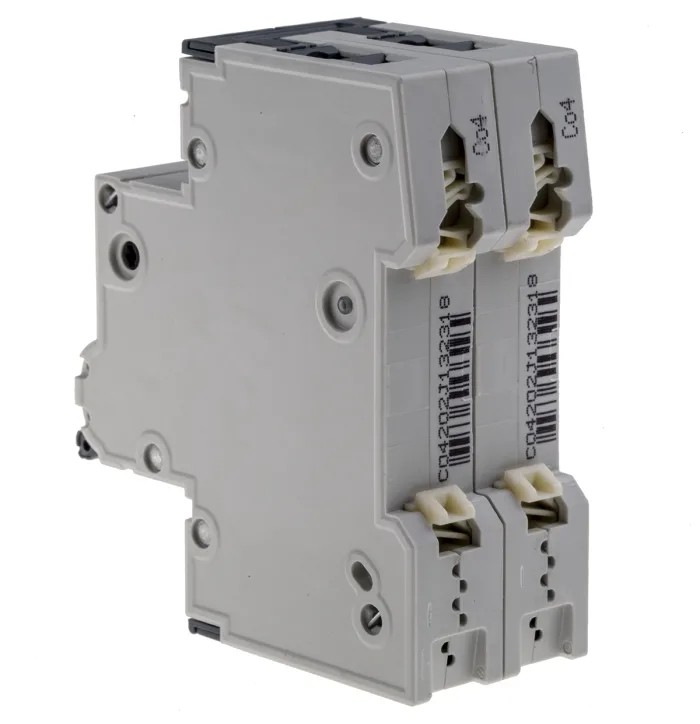

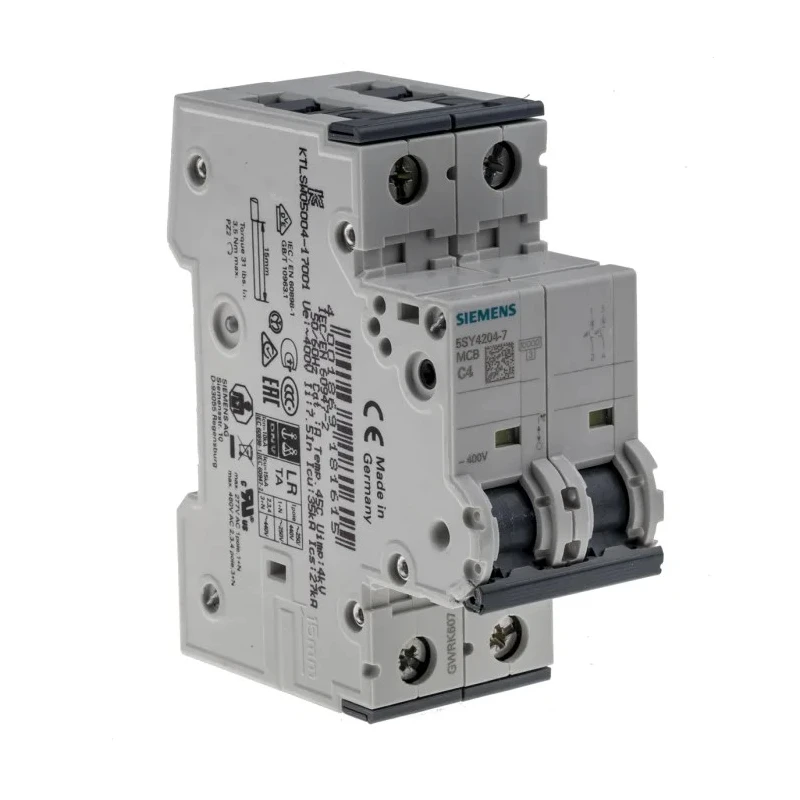

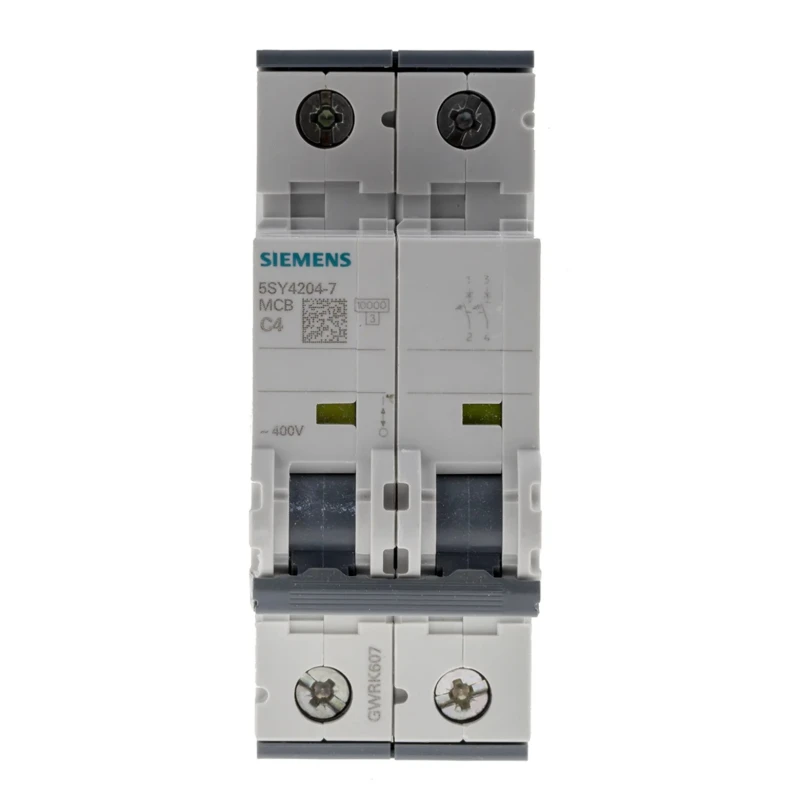

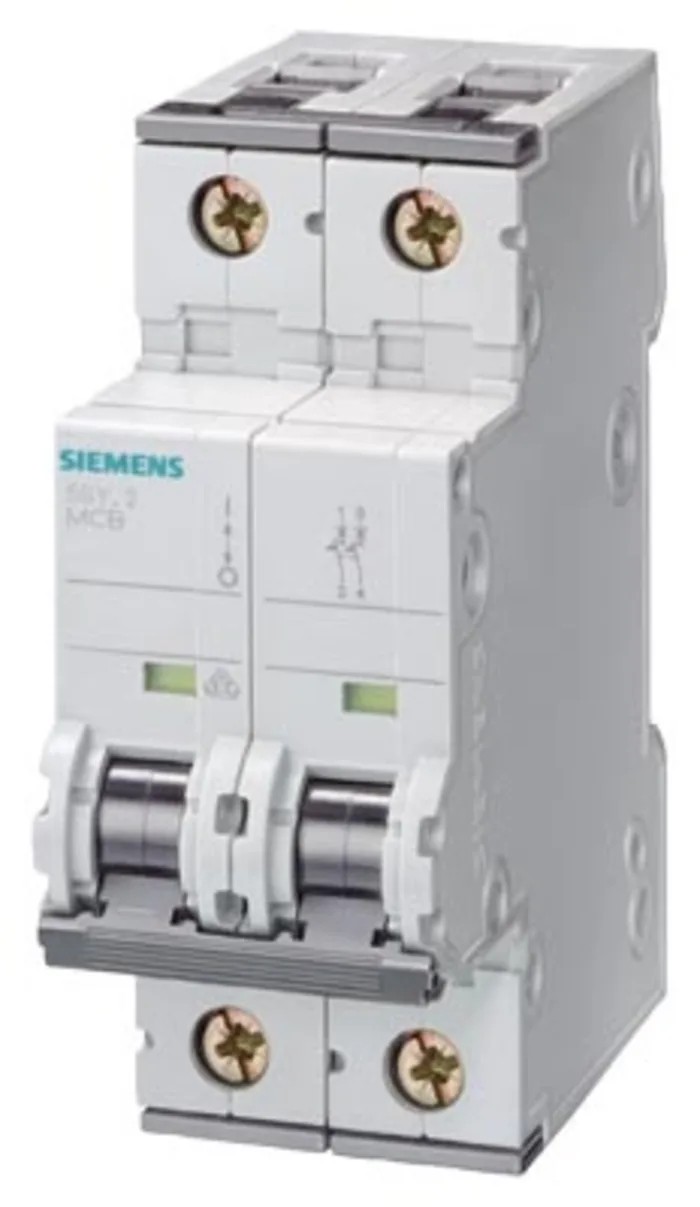

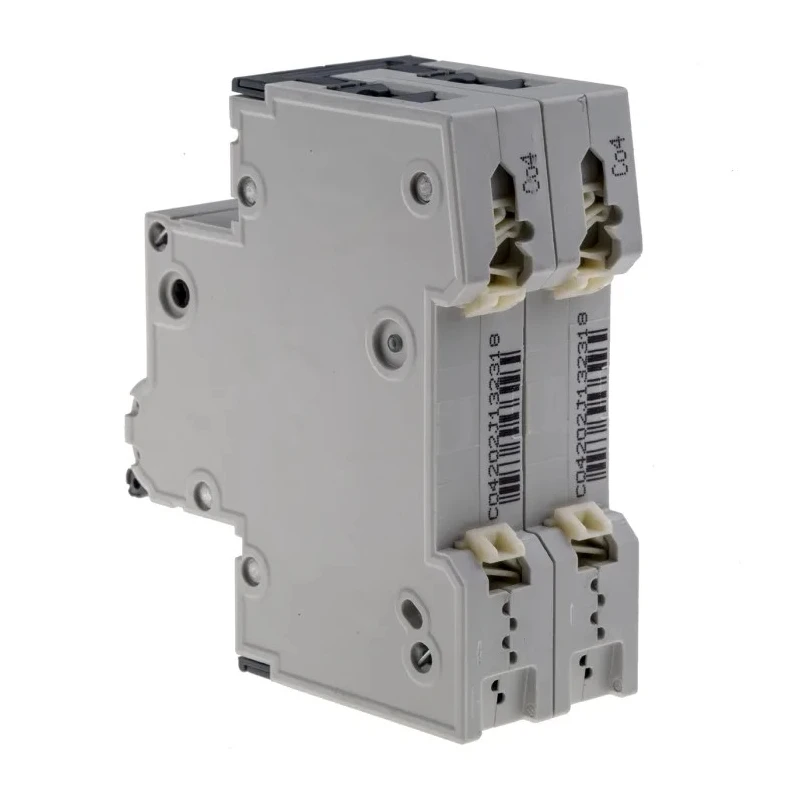

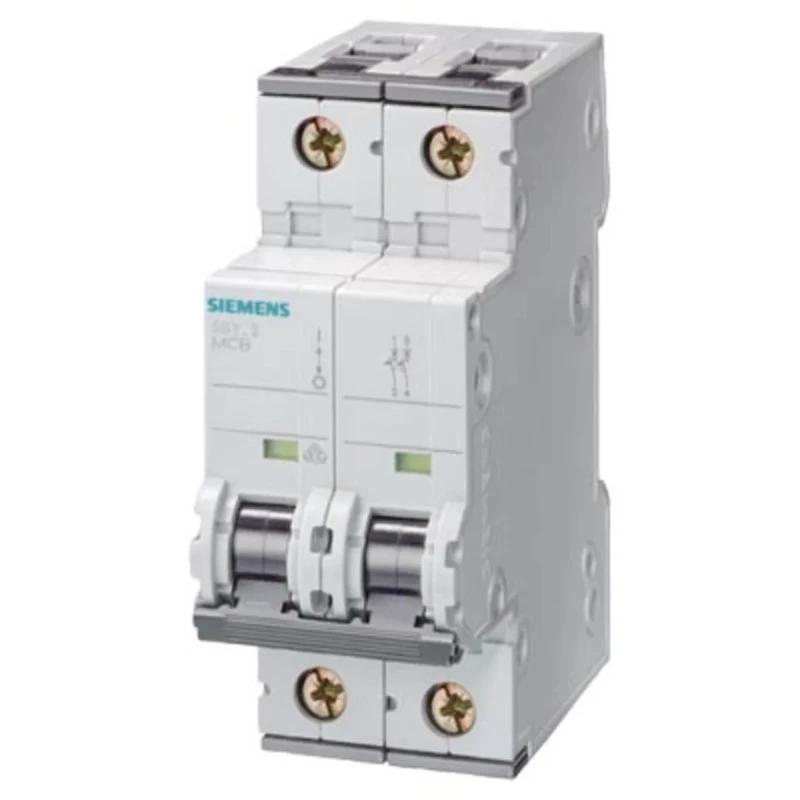

Siemens SENTRON Miniature Circuit Breaker, 2-Pole, 4A, Type C, 400V AC, 60V DC, 10kA Breaking Capacity 5SY4204-7
Specifications
| Country of Origin | Germany |
|---|---|
| Range | SENTRON |
| Brand | Siemens |
| Height | 90mm |
| Model | 5SY4204-7 |
| Depth | 76mm |
| IP Rating | IP20 |
| Width | 36mm |
| Mount Type | DIN Rail |
| Current Rating | 4A |
| Series | 5SY4 |
| Breaking Capacity | 10kA |
| Number of Poles | 2 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2/UL1077 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 60V dc |
| Tripping Characteristics | Type C |
| Better World Claim | Extended Product Life |
Key Features
- Rated for 400V AC and 60V DC operation.
- Features a robust breaking capacity of 10kA for high fault current interruptions.
- DIN Rail mountable for quick and secure installation in electrical panels.
- Compact dimensions of 36mm width, 90mm height, and 76mm depth fit limited space environments.
- Constructed to IEC/EN 60898-1 and IEC/EN 60947-2/UL1077 standards ensuring compliance and safety.
- Type C characteristic trips at 5 to 10 times the rated current, suitable for general use including residential and industrial settings.
- IP20 rated enclosure providing protection against solid objects larger than 12mm.
- Capable of operating in ambient temperatures ranging from -25°C to +55°C.
Product Description
Siemens 5SY4204-7 Miniature Circuit Breaker is a high-quality 2-Pole device rated at 4 amperes with Type C tripping characteristics, designed for electrical circuit protection applications. It supports operation at 400 volts AC and 60 volts DC and offers a breaking capacity of 10 kiloamperes, making it suitable for interrupting high fault currents effectively.
This MCB is engineered for DIN rail mounting, facilitating straightforward installation and integration into electrical distribution panels. With compact dimensions measuring 36mm in width, 90mm in height, and 76mm in depth, it is ideal for installations where space is limited.
Compliant with IEC/EN 60898-1 and IEC/EN 60947-2/UL1077 standards, this Siemens SENTRON series MCB guarantees safety and performance in residential, commercial, and industrial environments. The Type C trip curve allows the breaker to trip when current reaches 5 to 10 times the rated amperage, providing reliable protection against overloads and short circuits.
The device features an IP20 rating, protecting against solid objects larger than 12mm, and operates efficiently within a temperature range of -25 degrees Celsius to +55 degrees Celsius, ensuring versatile environmental adaptability.
Manufactured in Germany, this MCB delivers extended product life and durability, aligning with sustainability and quality standards. It is suitable for use in electrical automation, industrial production lines, residential wiring, and commercial constructions.
Rated for 400V AC and 60V DC operation. 10kA breaking capacity for superior safety. DIN Rail mountable design for quick installation. Compact size fits confined electrical panels. Compliance with international electrical standards.
Type C trip curve suited for various load types. IP20 rated protection against solid objects. Wide operating temperature range. Manufactured in Germany for quality assurance. Explore the extensive category of Miniature Circuit Breakers at EnvMart to find compatible products and trusted brand solutions for your electrical safety requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for operation at 400V AC and 60V DC.
This model features a breaking capacity of 10kA, suitable for interrupting high fault currents.
The dimensions are 36mm in width, 90mm in height, and 76mm in depth.
It is designed for DIN rail mounting, allowing for quick and secure installation in electrical panels.
It has Type C tripping characteristics, which means it trips at 5 to 10 times the rated current.
This unit has an IP20 rating, providing protection against solid objects larger than 12mm.
It complies with IEC/EN 60898-1 and IEC/EN 60947-2/UL1077 standards.
It operates efficiently within a temperature range of -25°C to +55°C.
This product is manufactured in Germany.
It is a 2-pole circuit breaker.
It is suitable for residential wiring, commercial constructions, and industrial production lines.
This model belongs to the SENTRON series.
