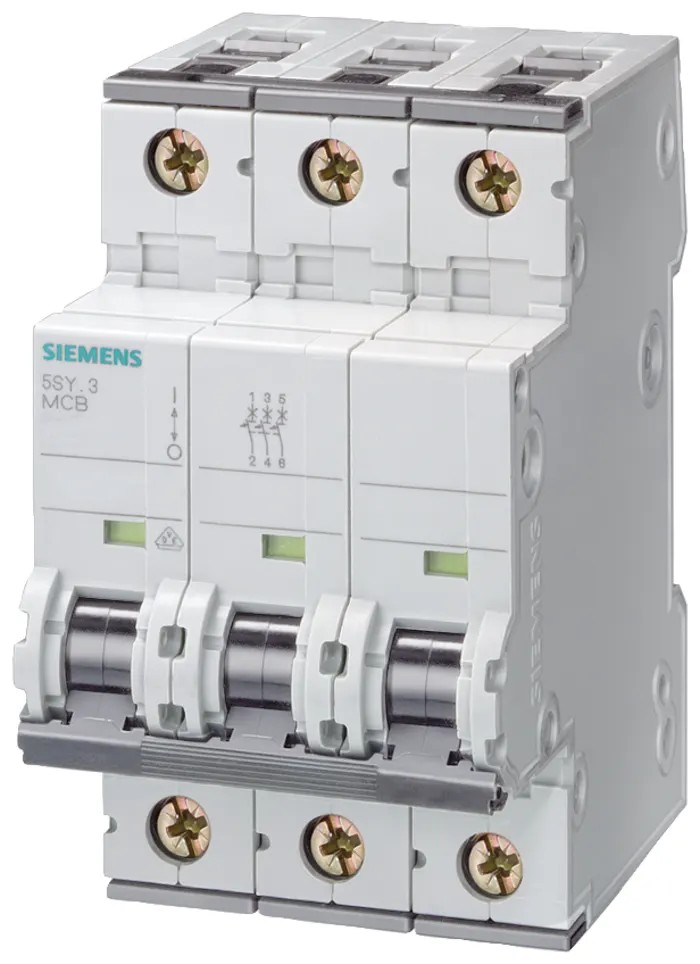

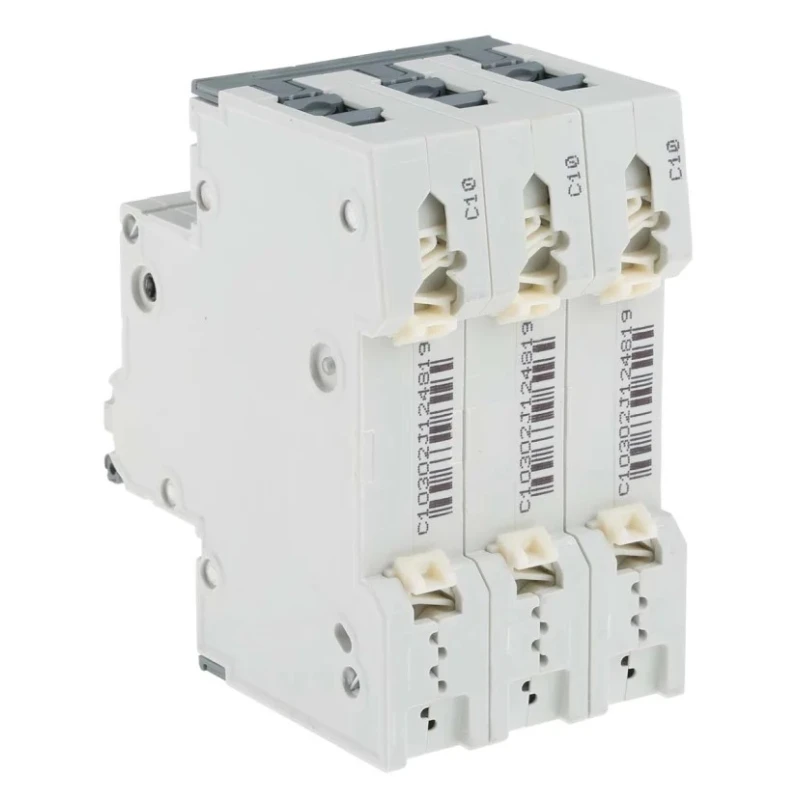

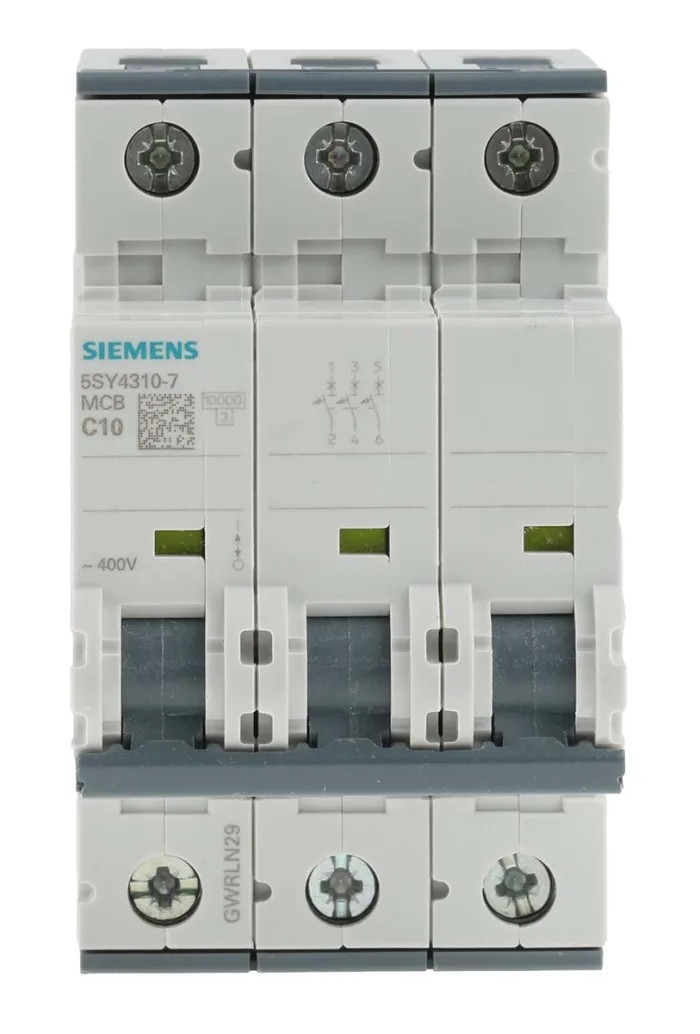

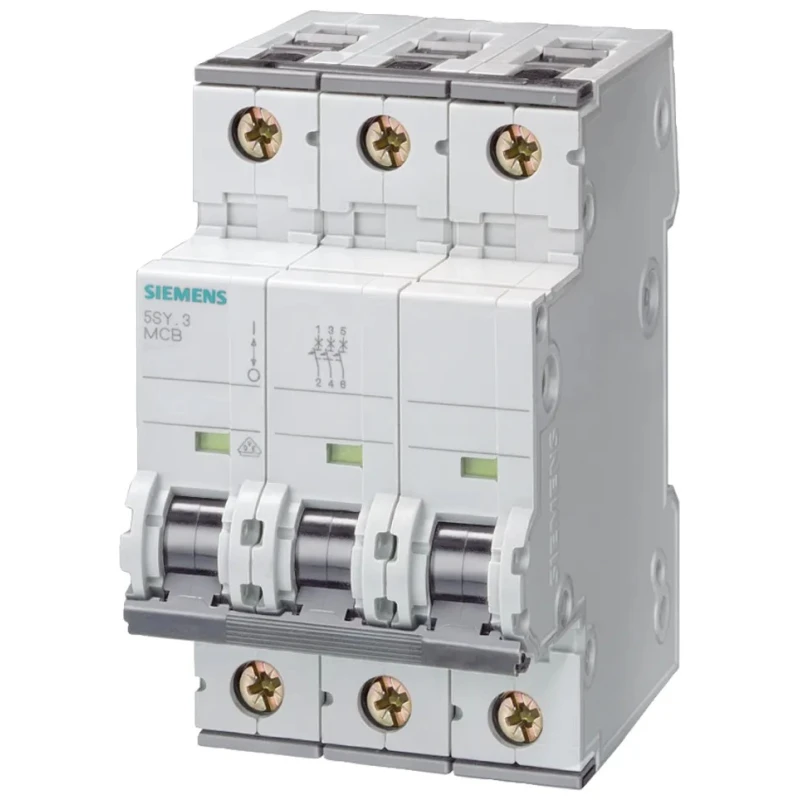

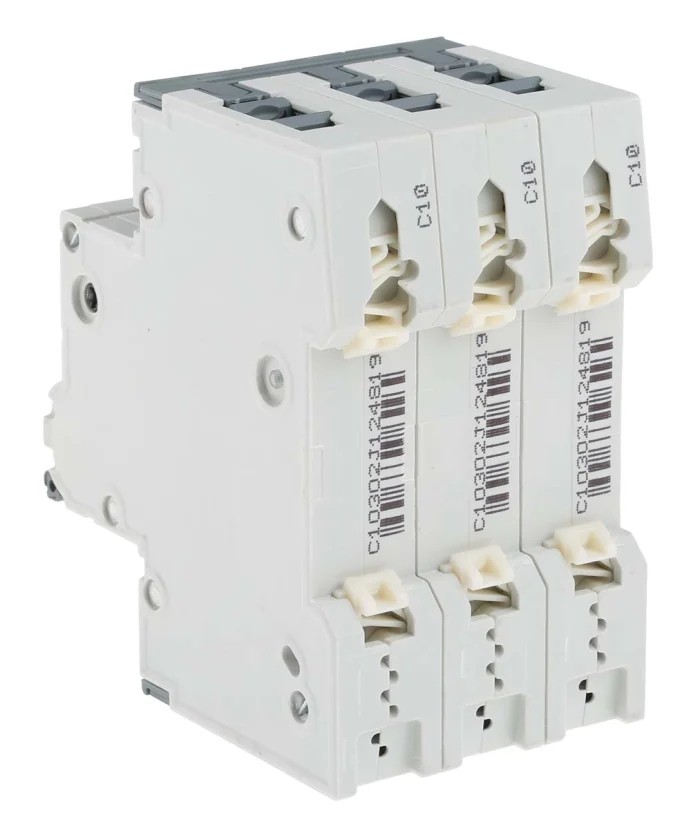

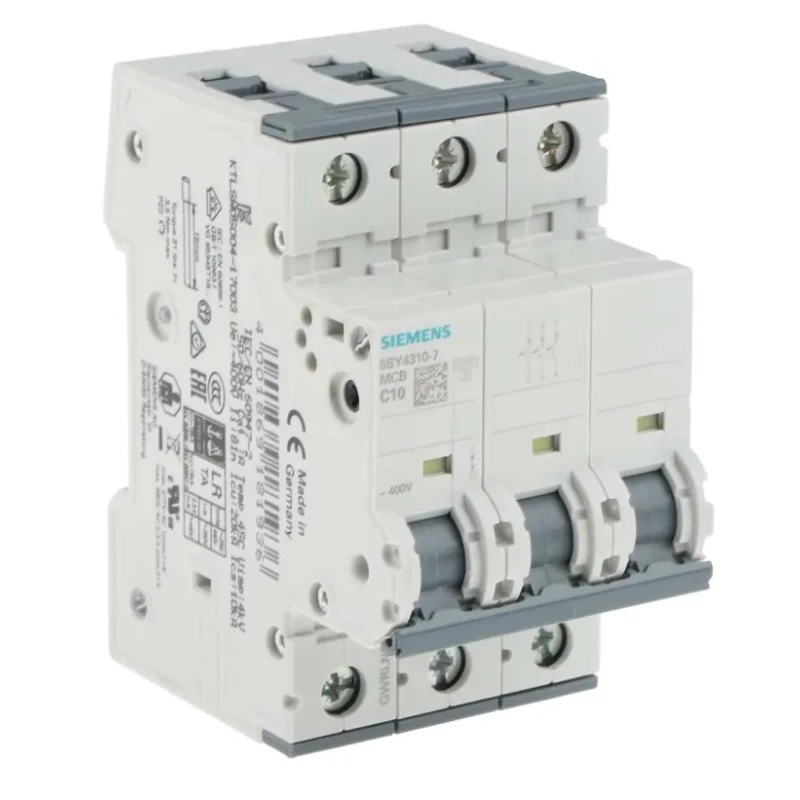

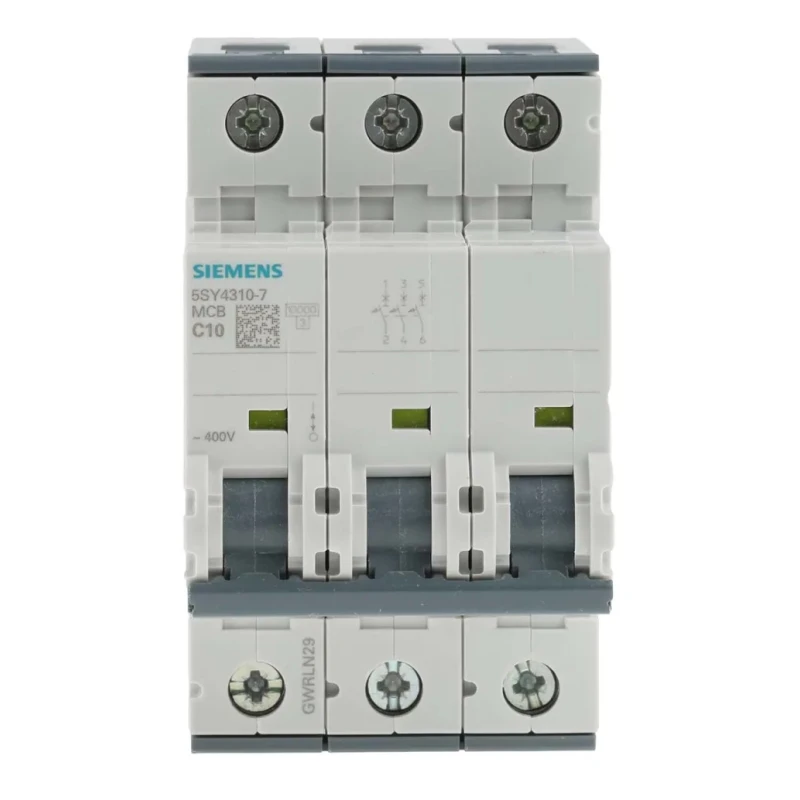

Siemens SENTRON 3-Pole Miniature Circuit Breaker 10A Type C 400V AC 60V DC 10 kA 5SY4310-7
Specifications
| Country of Origin | Germany |
|---|---|
| Range | SENTRON |
| Brand | Siemens |
| Height | 90mm |
| Model | 5SY4310-7 |
| Depth | 76mm |
| IP Rating | IP20 |
| Width | 53mm |
| Mount Type | DIN Rail |
| Current Rating | 10A |
| Series | 5SY4 |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2/UL1077 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 60V dc |
| Tripping Characteristics | Type C |
| Better World Claim | Extended Product Life |
Key Features
- Provides reliable circuit protection with a 10A current rating.
- Type C tripping characteristics suitable for moderate inductive loads.
- Rated for 400V AC and 60V DC operation.
- Breaking capacity of 10 kA ensures safe interruption of fault currents.
- Compact DIN rail mount with IP20 protection rating.
- Suitable for industrial and commercial electrical applications.
- Mechanical lifespan of 10,000 switching cycles for durability.
- Wide operating temperature range from -40°C to +70°C.
Product Description
The Siemens SENTRON 5SY4310-7 Miniature Circuit Breaker is a 3-pole protection device ideal for industrial and commercial electrical circuits. It features a 10A current rating with type C tripping characteristics, allowing it to handle moderate inductive loads such as motors and fluorescent lighting. Rated for 400V AC and 60V DC, it offers versatile application compatibility.
Designed for safety and durability, this circuit breaker provides a breaking capacity of 10 kA, which ensures rapid and safe interruption of fault currents, protecting equipment and personnel. The compact design allows for easy DIN rail mounting, and the IP20 rating offers effective protection against accidental contact.
With a mechanical lifespan of 10,000 switching cycles, this Siemens MCB guarantees long-term performance even in demanding environments. Operating effectively in temperatures ranging from -40°C to +70°C, it suits harsh industrial conditions. The device complies with major international standards IEC/EN 60898-1 and IEC/EN 60947-2/UL1077.
Manufactured in Germany, this MCB aligns with Siemens' commitment to quality and sustainability, featuring extended product life as part of its Better World claim. It accepts wires with cross-sections from 0.75mm² to 35mm² (18 to 4 AWG), facilitating flexible installation.
Reliable 10A current rating with Type C tripping. Universal AC/DC voltage ratings: 400V AC, 60V DC. High breaking capacity of 10 kA for fault protection. Standardized DIN rail mounting with IP20 safety rating. Durable mechanical lifespan of 10,000 cycles.
Wide temperature range operation from -40°C to +70°C. Compliance with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077 standards. Produced in Germany, ensuring high-quality manufacturing. Suitable for industrial electrical circuit protection.
Supports wire sizes 0.75mm² to 35mm². Explore more products in the Miniature Circuit Breaker category at EnvMart for your electrical protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a reliable current rating of 10A, suitable for various applications.
It is rated for 400V AC and 60V DC operation, providing versatility in electrical applications.
The breaking capacity is 10 kA, ensuring safe interruption of fault currents.
This unit features Type C tripping characteristics, suitable for moderate inductive loads.
It has an IP20 protection rating, which provides effective protection against accidental contact.
This model has a mechanical lifespan of 10,000 switching cycles, ensuring long-term performance.
The dimensions are 90mm in height, 76mm in depth, and 53mm in width.
It is designed for standard DIN rail mounting, facilitating easy installation.
It accepts wire sizes from 0.75mm² to 35mm² (18 to 4 AWG), allowing for flexible installation options.
It operates effectively in a wide temperature range from -40°C to +70°C, suitable for harsh environments.
It complies with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077 standards, ensuring safety and reliability.
This circuit breaker is manufactured in Germany, aligning with Siemens' commitment to quality.
