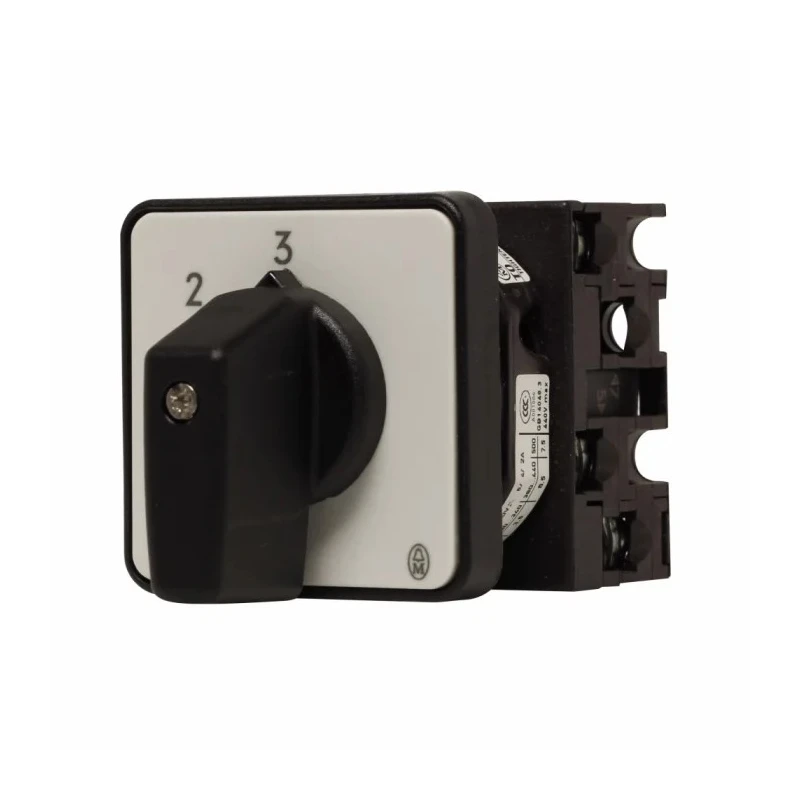

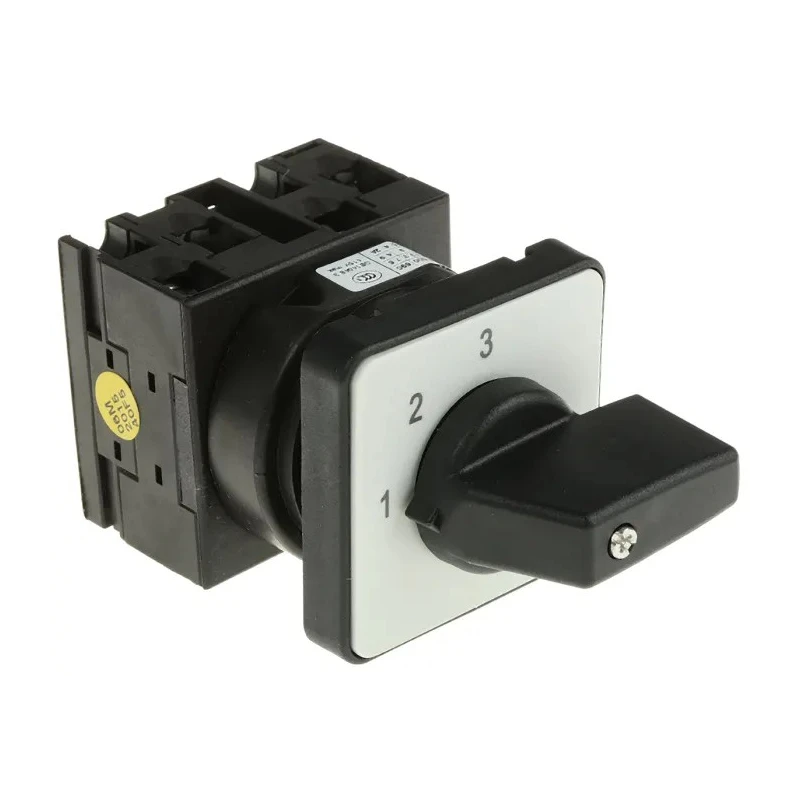

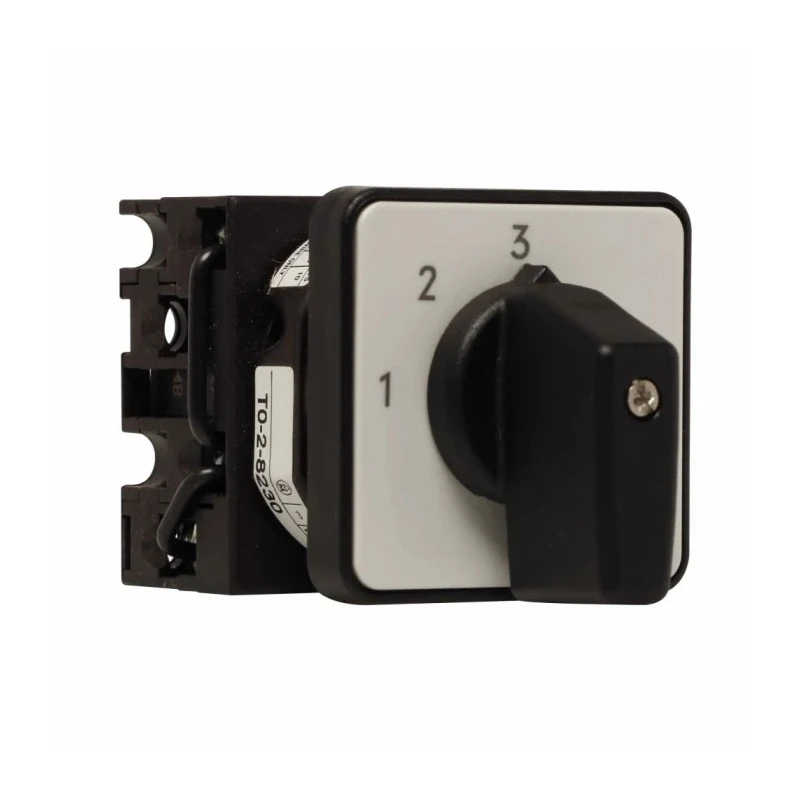

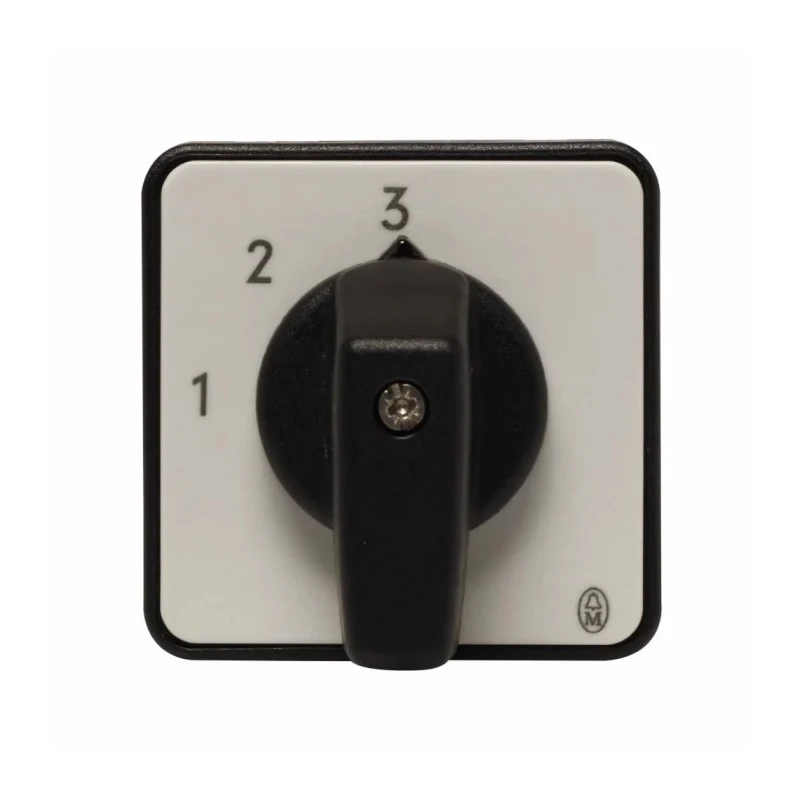

Eaton Rotary Cam Switch 3 Position 45° Toggle Actuator 20A IP65 78627334 T0-2-8230/E/EZ-P1(RS257-9637)
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Eaton |
| Operating Temperature | - 25 to +50°C |
| Length | 48mm |
| Model | 78627334 T0-2-8230/E/EZ-P1(RS257-9637) |
| Depth | 100mm |
| IP Rating | IP65 |
| Width | 48mm |
| Mount Type | Flush |
| Series | T0 |
| Maximum Operating Temperature | 50°C |
| Actuator Type | Toggle |
| Number of Positions | 3 |
| Minimum Operating Temperature | -25°C |
| Operating Current | 20A |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Hazardous Area Certification | IECEx |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60947 |
| Mechanical Life | 1000000Operations |
| Contact Voltage | 690V ac |
| Contact Current | 20A |
| Angle of Throw | 45 ° |
| Eaton 4 Position 60 °, Toggle Actuator 20 ABrand | Eaton |
Key Features
- The switch is rated IP65 for dust and low-pressure water jet protection.
- Compact dimensions of 48mm length, 48mm width, and 100mm depth for versatile installation.
- Screw terminals provide secure connections resistant to vibration.
- Designed for flush mounting with a maximum panel thickness of 5mm.
- Mechanical life exceeds 1,000,000 operations for long-lasting durability.
- Suitable for operating temperatures from -25°C to 50°C.
- Conforms to IEC/EN 60947 standards with IECEx hazardous area certification.
- Black thumb-grip handle and silver escutcheon plate for safe, ergonomic operation.
Product Description
Eaton 78627334 T0-2-8230/E/EZ-P1(RS257-9637) rotary cam switch is a high-quality electrical component designed to safely isolate systems in combined power supply applications. This 3-position switch features a precise 45° toggle actuator rated for 20 amperes, making it ideal for use in demanding environments such as warehouses and airports where individual conveyor belts and other systems require independent control.
The switch's IP65 rating ensures excellent protection against dust ingress and water jets, suitable for harsh industrial conditions. With compact dimensions of 48mm length, 48mm width, and 100mm depth, it can be installed in areas with limited space while maintaining safety and functionality.
The device employs screw terminals to guarantee secure and vibration-resistant electrical connections. It supports flush mounting with a maximum panel thickness of 5mm and includes a black thumb-grip handle with a silver escutcheon plate for ergonomic and reliable actuation. Its mechanical life spans over 1,000,000 operations, ensuring extended service life and minimal maintenance.
This cam switch complies with IEC/EN 60947 standards and carries IECEx hazardous area certification, making it suitable for applications requiring certified performance. The switch's operating temperature range from -25°C to 50°C suits various industrial and commercial settings.
The switch allows the use of a padlock in the off position to prevent accidental activation, enhancing safety during repairs. Its compact size and durable construction make it suitable for integration in conveyor systems, machine controls, and electrical isolation tasks.
The IP65 protection rating safeguards against dust and low-pressure water jets, increasing reliability in challenging environments.
This Eaton cam switch is a dependable choice for electrical and automation systems in industrial, manufacturing, and commercial facilities. For more options, explore related Cam Switches and actuator products within our electrical switches category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch is rated for an operating current of 20A and a contact voltage of 690V AC.
It has an IP65 rating, providing protection against dust ingress and low-pressure water jets.
The dimensions are 48mm in length, 48mm in width, and 100mm in depth.
The mechanical life of this switch exceeds 1,000,000 operations, ensuring long-lasting performance.
It operates within a temperature range of -25°C to +50°C.
This model is designed for flush mounting with a maximum panel thickness of 5mm.
It features a toggle actuator with a precise 45° angle of throw.
The switch employs screw terminals for secure and vibration-resistant connections.
Yes, it carries IECEx hazardous area certification, making it suitable for such applications.
It conforms to IEC/EN 60947 standards.
Yes, a padlock can be used in the off position to prevent accidental activation.
This switch has 3 positions for versatile control applications.
