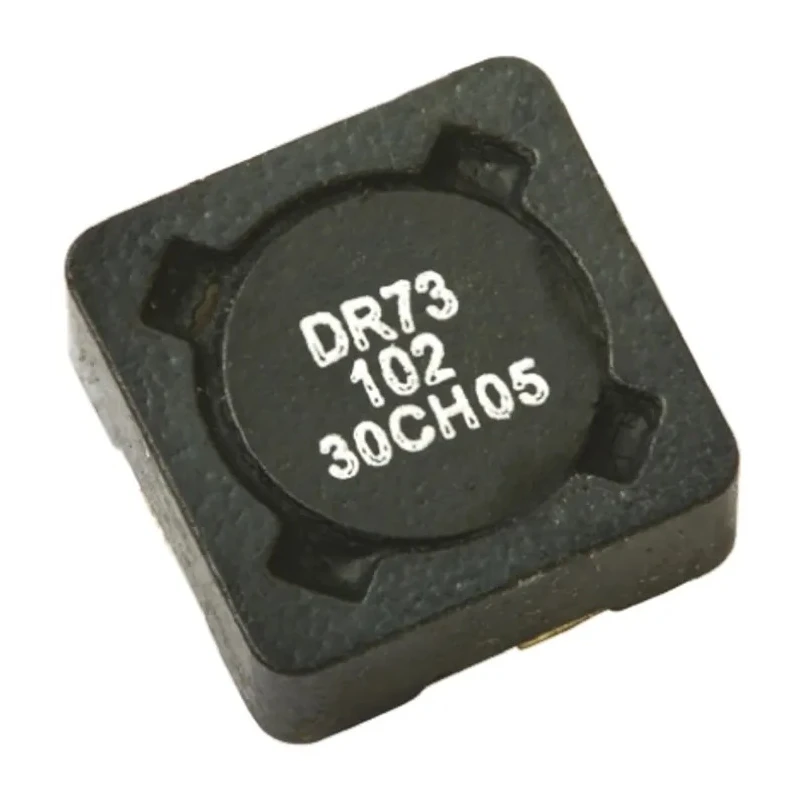

Eaton Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±20% 2.47 A IDC 0703 DR73-100-R

Free Delivery in India | Lowest Global Shipping Charges

Eaton Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±20% 2.47 A IDC 0703 DR73-100-R

Name: Eaton Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±20% 2.47 A IDC 0703 DR73-100-R
Brand: Eaton
SKU: 367438
Price: 0.99 USD
Availability: InStock



Category Surface Mount Inductor Brand Eaton Condition New

Specifications

Country of Origin	China
Brand	Eaton
Height	3.55mm
Length	7.6mm
Model	DR73-100-R
Depth	7.6mm
Packaging	Reel
Series	DR
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	10μH
Standards/Approvals	RoHS
Package/Case	0703
Maximum DC Current	2.47A
Pin Count	2
Maximum DC Resistance	65.6mΩ
Inductance Tolerance	±20 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	100kHz
Inductor Construction	Wirewound

Key Features

Constructed with a ferrite core for magnetic shielding.
Surface mount package size 0703 suitable for compact PCB layouts.
Maximum operating temperature of 125°C ensures reliability.
Low maximum DC resistance of 65.6 mΩ reduces power loss.
RoHS compliant with moulded wirewound construction for durability.
Designed for noise filtering and high power density applications.
Compatible with DC-DC converters, LCD panels, and portable devices.
Has a maximum self-resonant frequency of 100 kHz for effective EMI suppression.

Product Description

Eaton DR73-100-R shielded wirewound surface mount inductor features a ferrite core and a 0703 case size, designed for reliable performance in electronic circuits. This inductor provides an inductance of 10 μH ±20% with a maximum DC current rating of 2.47 A, making it ideal for applications requiring magnetic shielding and high efficiency.

With a low DC resistance of 65.6 mΩ and a maximum operating temperature of 125°C, this inductor ensures stable operation under demanding conditions. The surface mount termination style and compact dimensions of 7.6 mm length, 3.55 mm height, and 7.6 mm depth facilitate easy integration into compact PCB assemblies.

The DR series inductors are widely used in computers, DVD players, portable devices, LCD panels, and various DC-DC converters including buck, boost, forward, and resonant types. Their magnetic shielding and noise filtering capabilities enhance electromagnetic interference (EMI) performance in these systems.

The product is moulded for durability and shipped in reel packaging to support automated manufacturing processes. Constructed with a ferrite core for magnetic shielding. Compact 0703 surface mount package suitable for high-density PCB layouts.

Rated for a maximum DC current of 2.47 A with low DC resistance for power efficiency. Maximum operating temperature of 125°C for robust performance. Wirewound inductors designed for noise filtering in power electronics. Applications include computers, LCD panels, and various DC-DC converters.

RoHS compliant and moulded for mechanical protection. Supplied on reel packaging for efficient manufacturing integration.

This Eaton DR73-100-R inductor is ideal for industrial electronics, telecommunications, consumer electronics, and automotive power systems where EMI suppression and efficient energy storage are critical.
