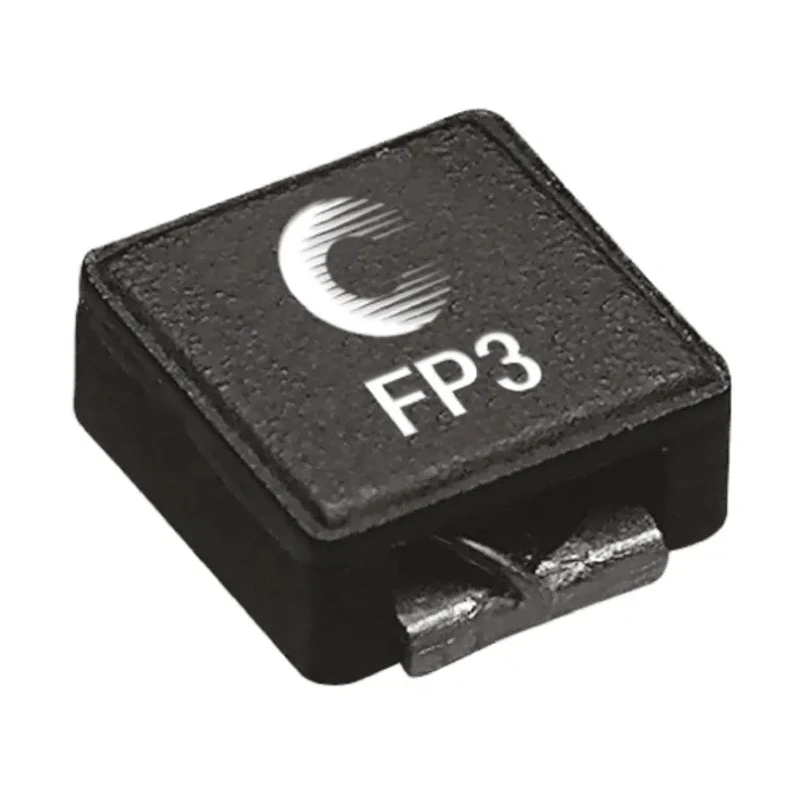

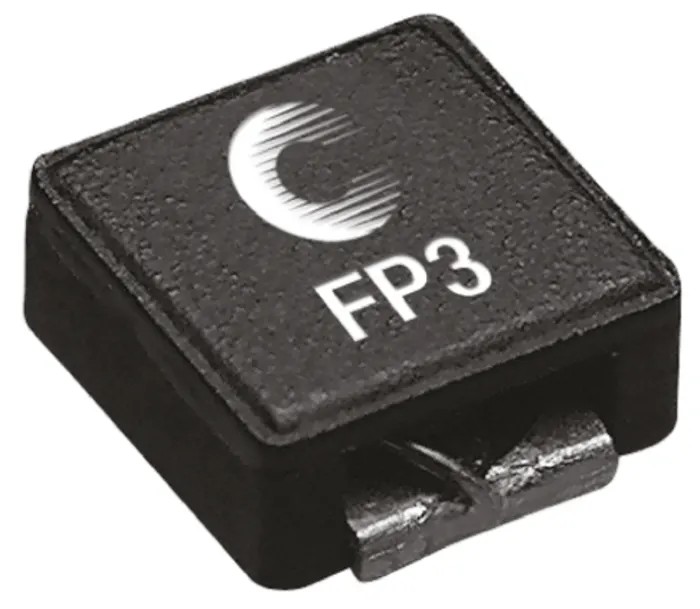

Eaton Wirewound Surface Mount Inductor 15 μH ±15% 2.5 A Shielded Composite Iron Powder Core FP3-150-R

The Eaton FP3-150-R is a wirewound surface mount inductor featuring a shielded composite iron powder core, delivering an inductance of 15 μH with ±15% tolerance and a maximum DC current rating of 2.5 A. This inductor belongs to the FLAT-PAC 3 series, known for its low profile design and high current capacity, making it suitable for demanding electronic applications.

Measuring 7.25 mm in length, 6.7 mm in depth, and 3 mm in height, it is housed in the 0703 package case designed for surface mount technology, which enables reliable automated PCB assembly with its 2-pin termination style. The construction uses a high-temperature powdered iron material with a non-organic binder, enhancing resistance to aging and thermal endurance with operating temperature limits from -40°C to 155°C.

The inductor features shielding to minimize electromagnetic interference ensuring stable circuit performance. Its electrical characteristics include a maximum DC resistance of 127 milliohms and a maximum self resonant frequency of 2 MHz, supporting various high-frequency applications.

Typical applications for this inductor range from computer electronics and portable power devices to DC-DC converters and energy storage systems. It also serves well in input-output filter circuits requiring high reliability and efficiency.

This product is RoHS compliant, molded for durability, and supplied on a reel to facilitate efficient automated insertion during manufacturing processes. Compact 0703 surface mount package suitable for high-density PCB layouts.

Shielded wirewound construction ensures reduced electromagnetic interference. Composite iron powder core provides thermal stability and durability. High maximum operating temperature of 155°C suitable for robust applications.

Low DC resistance of 127 mΩ minimizes power losses. Rated maximum current of 2.5 amps for moderate power circuits. RoHS compliance supports environmental standards and regulations. Suitable for electronics, computing, and power conversion uses.

Packaged on reels for streamlined production processes. Explore additional reliable inductors and electronic components in the Surface Mount Inductors category on EnvMart.
