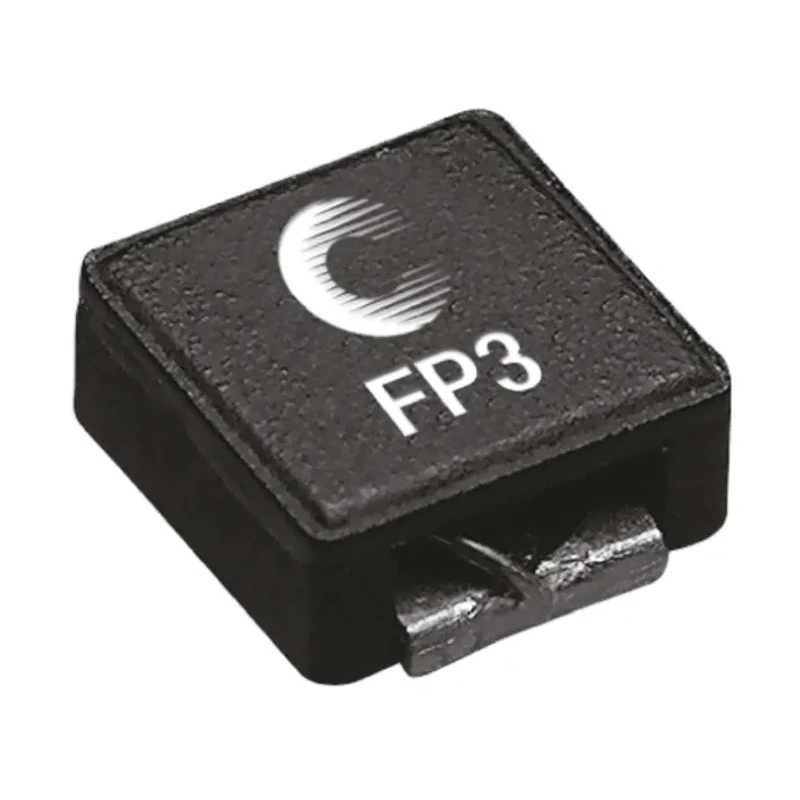

Eaton Shielded Wirewound Surface Mount Inductor FLAT-PAC 3 Series 15 μH ±15 %, 2.5 A, Composite Iron Powder Core FP3-150-R

Free Delivery in India | Lowest Global Shipping Charges

Eaton Shielded Wirewound Surface Mount Inductor FLAT-PAC 3 Series 15 μH ±15 %, 2.5 A, Composite Iron Powder Core FP3-150-R

Name: Eaton Shielded Wirewound Surface Mount Inductor FLAT-PAC 3 Series 15 μH ±15 %, 2.5 A, Composite Iron Powder Core FP3-150-R
Brand: Eaton
SKU: 367421
Price: 1.88 USD
Availability: InStock



Category Surface Mount Inductor Brand Eaton Condition New

Specifications

Country of Origin	China
Brand	Eaton
Height	3mm
Length	7.25mm
Model	FP3-150-R
Depth	6.7mm
Packaging	Reel
Series	FLAT-PAC 3
Maximum Operating Temperature	155°C
Minimum Operating Temperature	-40°C
Core Material	Composite Iron Powder
Inductance	15μH
Standards/Approvals	RoHS
Package/Case	0703
Maximum DC Current	2.5A
Pin Count	2
Maximum DC Resistance	127mΩ
Inductance Tolerance	±15 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	2MHz
Inductor Construction	Wirewound

Key Features

Constructed with a composite iron powder core, providing high stability and low aging.
Designed for surface mounting with a 0703 package case size.
Maximum operating temperature is 155°C, suitable for demanding electronic environments.
Offers a low profile with dimensions of 7.25 mm length, 6.7 mm depth, and 3 mm height.
Includes shielding to reduce electromagnetic interference and ensure signal integrity.
Moulded wirewound construction enhances reliability and durability in high current applications.
Has a maximum DC resistance of 127 mΩ, ensuring efficient current flow.
Meets RoHS compliance standards for environmental safety.

Product Description

Eaton FP3-150-R is a shielded wirewound surface mount inductor from the FLAT-PAC 3 series, engineered to deliver reliable performance with a 15 μH inductance ±15 % tolerance and a maximum DC current rating of 2.5 A. This inductor uses a composite iron powder core that provides excellent stability and resistance to aging, supporting prolonged usage in electronics and power management systems.

The compact 0703 package size features dimensions of 7.25 mm length, 6.7 mm depth, and 3 mm height, providing a low-profile solution ideal for space-constrained designs. With moulded wirewound construction and shielding, this component reduces electromagnetic interference, enhancing overall circuit performance.

The inductor supports a broad operating temperature range from -40°C to 155°C, suitable for industrial, computing, portable power devices, DC-DC converters, and energy storage applications. It also offers a maximum self-resonant frequency of 2 MHz to maintain consistent inductive performance at high frequencies.

Additional features include a maximum DC resistance of 127 mΩ, RoHS compliance, and surface mount termination style facilitating ease of assembly on printed circuit boards. This product originates from China and adheres to environmental standards, making it suitable for stringent regulatory requirements.

Composite iron powder core enhances stability and longevity. Low profile 0703 surface mount package suitable for dense PCB layouts. High current capability rated at 2.5 A. Wide operating temperature range from -40°C to 155°C.

Shielding reduces electromagnetic interference effects. Wirewound construction improves durability and performance. Maximum DC resistance of 127 mΩ for low power loss. RoHS compliant ensuring environmental safety. Maximum self-resonant frequency at 2 MHz for high frequency circuits.

Suitable for applications including computers, portable power devices, DC-DC converters, and energy storage.
