Eaton xEffect Miniature Circuit Breaker 2-Pole 25A Type C 400V AC 6 kA Breaking Capacity 239105 FAZ6-C25/2

Free Delivery in India | Lowest Global Shipping Charges

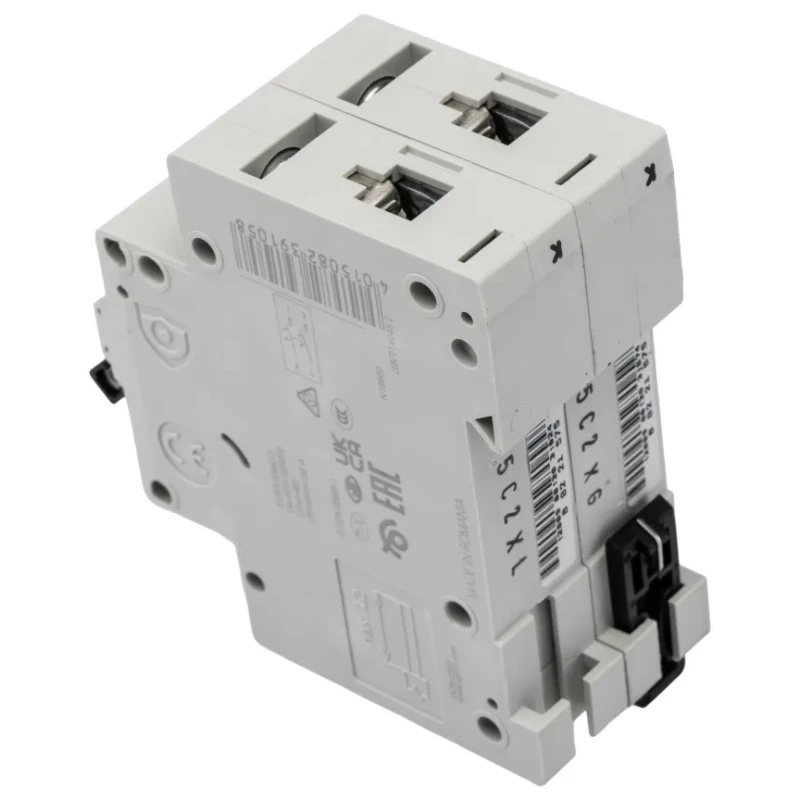

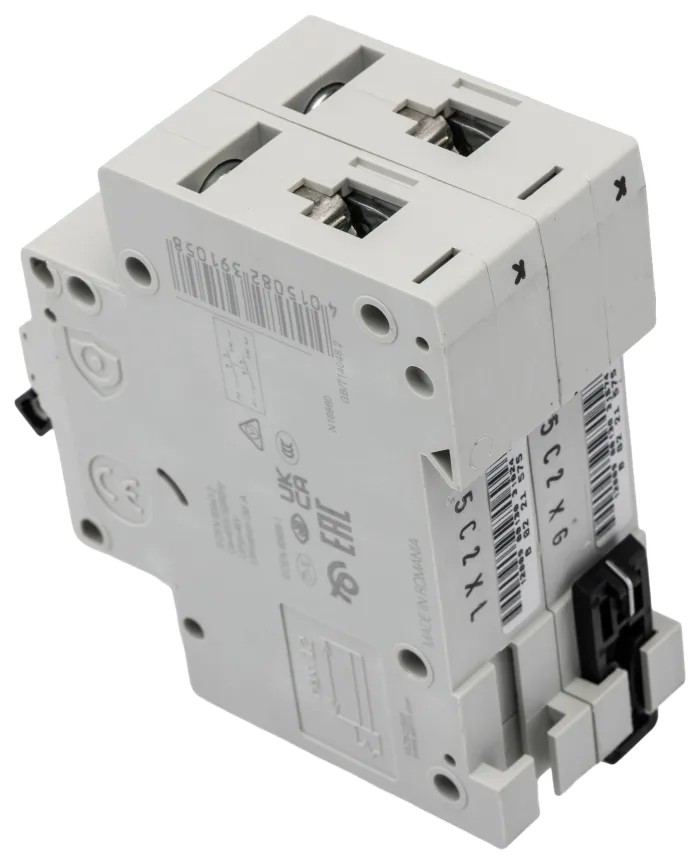

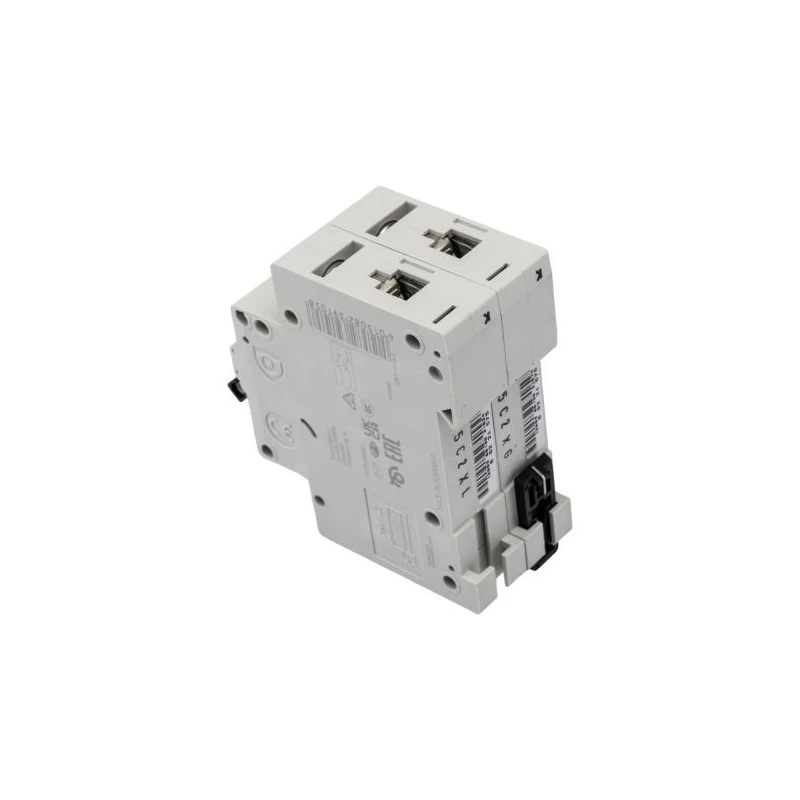

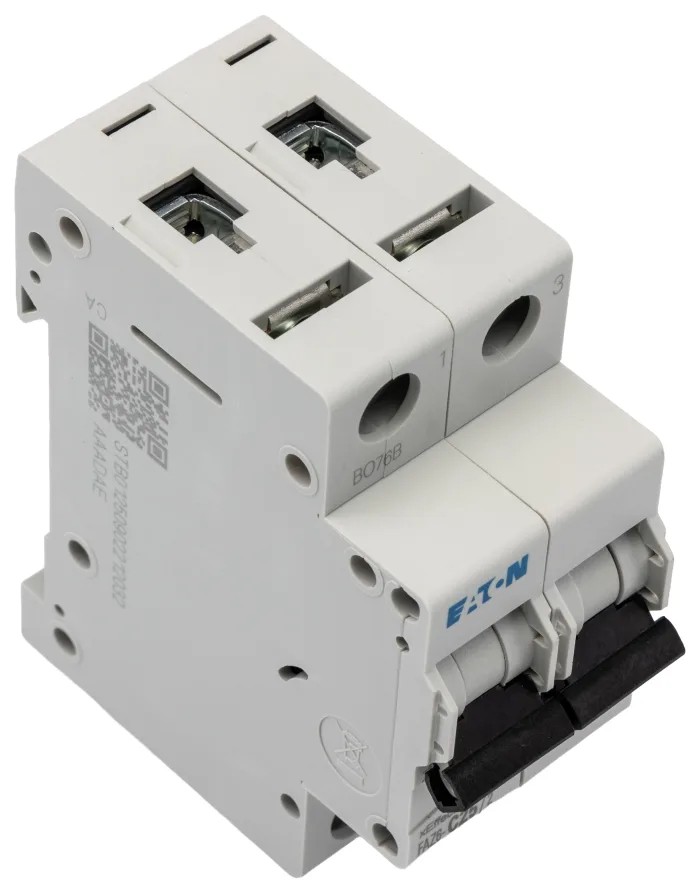

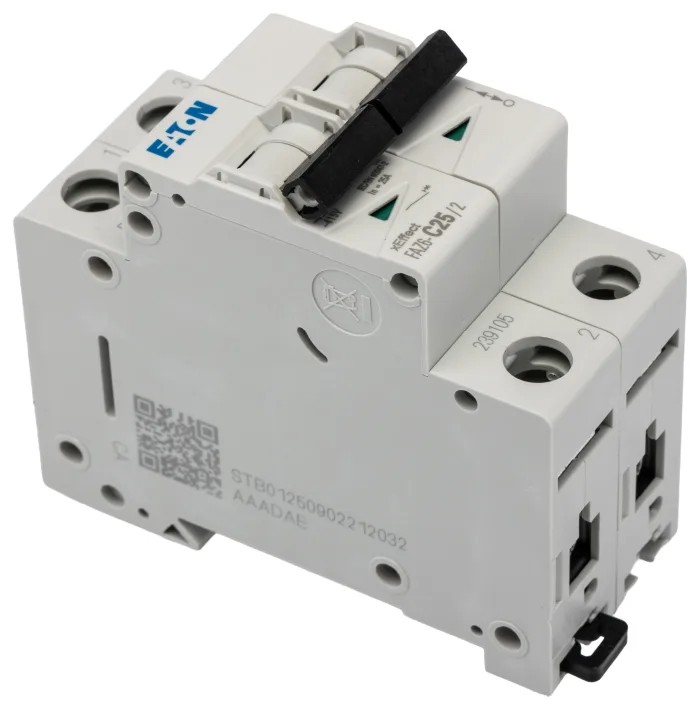

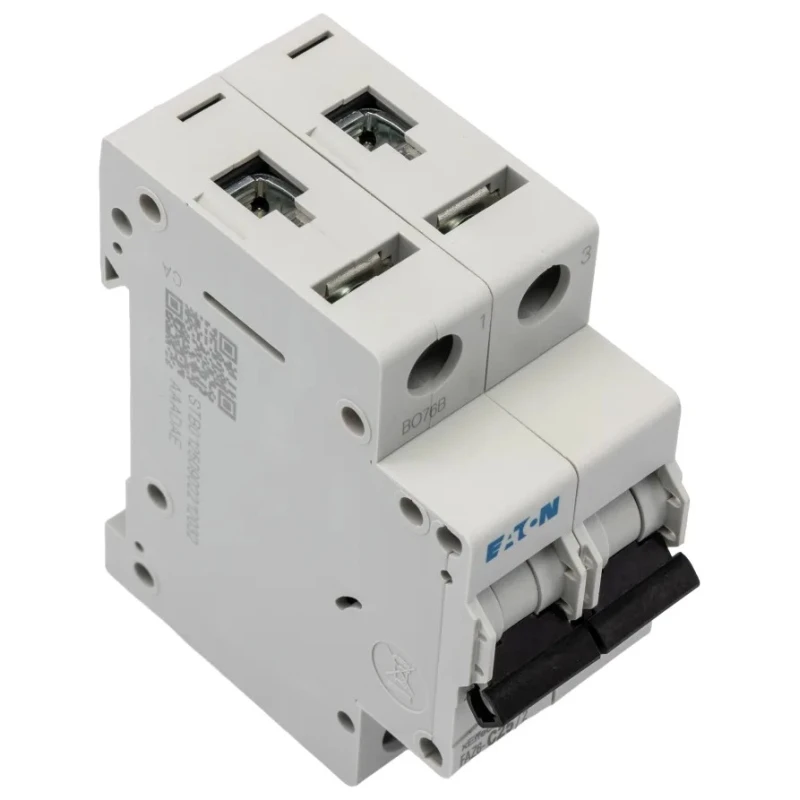

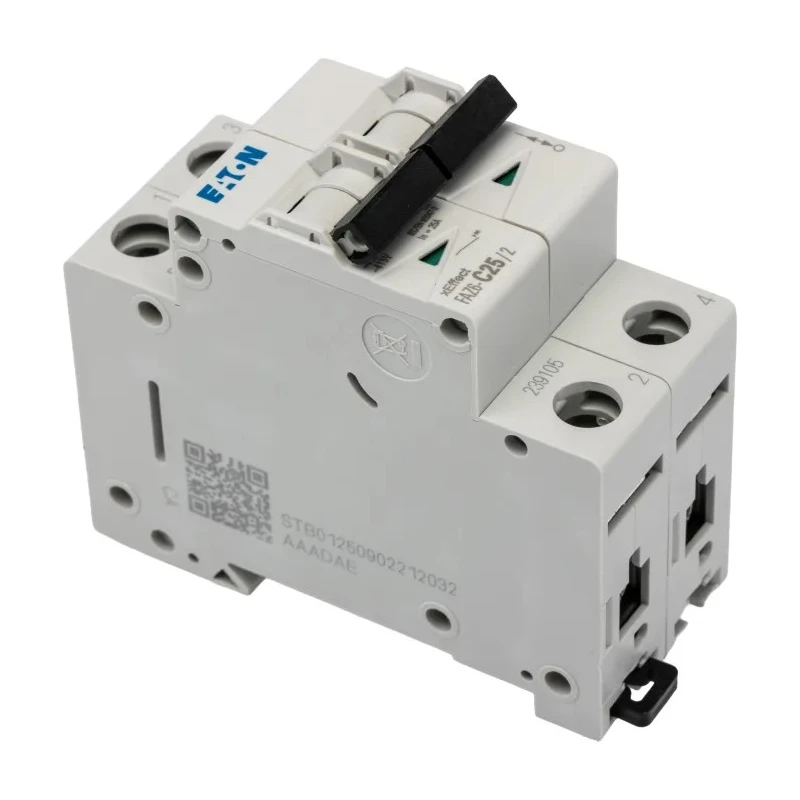

Eaton xEffect Miniature Circuit Breaker 2-Pole 25A Type C 400V AC 6 kA Breaking Capacity 239105 FAZ6-C25/2

Name: Eaton xEffect Miniature Circuit Breaker 2-Pole 25A Type C 400V AC 6 kA Breaking Capacity 239105 FAZ6-C25/2
Brand: Eaton
SKU: 367302
Price: 77.11 USD
Availability: InStock



Category Miniature Circuit Breaker Brand Eaton Condition New

Specifications

Country of Origin	India
Range	xEffect
Brand	Eaton
Model	239105 FAZ6-C25/2
Depth	62mm
IP Rating	IP20
Width	17.5mm
Mount Type	DIN Rail
Current Rating	25A
Series	xEffect
Breaking Capacity	6kA
Number of Poles	2
Standards/Approvals	EN 60898, IEC
Rated AC Voltage	400V ac
Tripping Characteristics	Type C
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch
Break Time	Instantaneous

Key Features

Provides 6 kA breaking capacity for effective fault current interruption.
Compact DIN rail mount design with IP20 protection rating.
Instantaneous break time with thermal magnetic tripping mechanism.
Suitable for commercial, industrial, and residential electrical installations.
Compatible with solid and multi-wired conductors from 1 mm² to 25 mm².
Operating temperature range from -25 °C to 75 °C for versatile environments.
Toggle switch actuator allows for easy reset and control.
Complies with EN 60898 and IEC standards for quality and safety.

Product Description

Eaton 239105 FAZ6-C25/2 Miniature Circuit Breaker is a robust electrical protection device rated at 25A with 2 poles. Designed for DIN rail mounting and featuring a Type C tripping characteristic, it safeguards circuits operating up to 400V AC.

This MCB boasts a 6 kA breaking capacity enabling it to safely interrupt high fault currents, protecting electrical systems from damage. Its compact form factor with dimensions of 17.5mm width and 62mm depth ensures space-efficient installation in distribution boards.

The device features a thermal magnetic tripping mechanism with instantaneous break time for reliable activation under fault conditions. Its toggle switch actuator permits easy manual reset and operation.

Engineered to accommodate conductor cross sections from 1 mm² to 25 mm², it supports both solid and multi-stranded wiring configurations. It operates efficiently within an ambient temperature range of -25 °C to 75 °C, suitable for a broad spectrum of environments.

This miniature circuit breaker adheres to EN 60898 and IEC standards and is IP20 rated, ensuring durability and safety in commercial, industrial, and residential applications. It is ideal for protecting circuits with motors, transformers, and load management in automation systems.

Provides 6 kA breaking capacity for effective fault current interruption. Compact DIN rail mount design with IP20 protection rating. Instantaneous break time with thermal magnetic tripping mechanism. Suitable for commercial, industrial, and residential electrical installations.

Compatible with solid and multi-wired conductors from 1 mm² to 25 mm². Operating temperature range from -25 °C to 75 °C for versatile environments. Toggle switch actuator allows for easy reset and control. Complies with EN 60898 and IEC standards for quality and safety.

Eaton Miniature Circuit Breakers are a dependable choice for safeguarding electrical installations against overloads and short circuits. Explore the Eaton range at EnvMart to find reliable circuit protection solutions suitable for diverse industrial and residential requirements.
