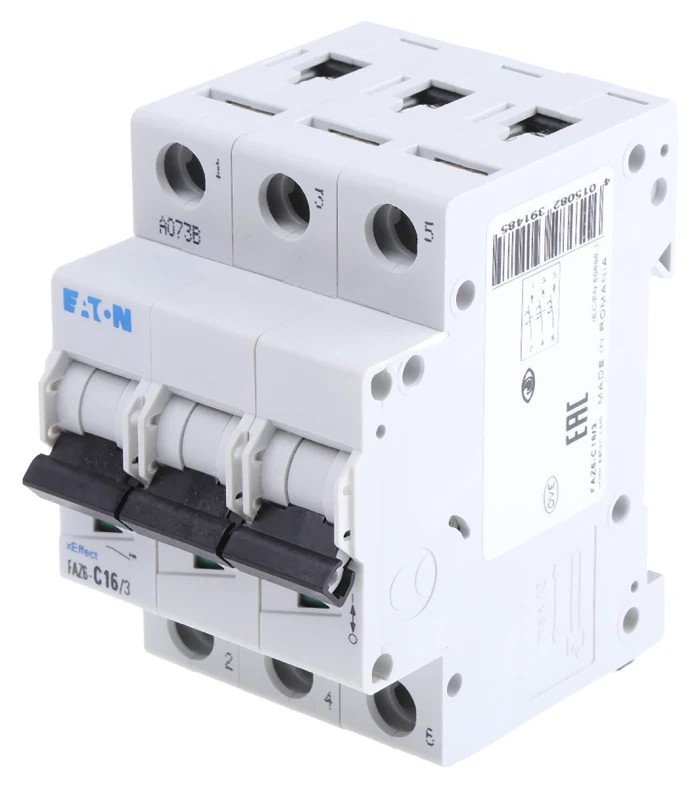

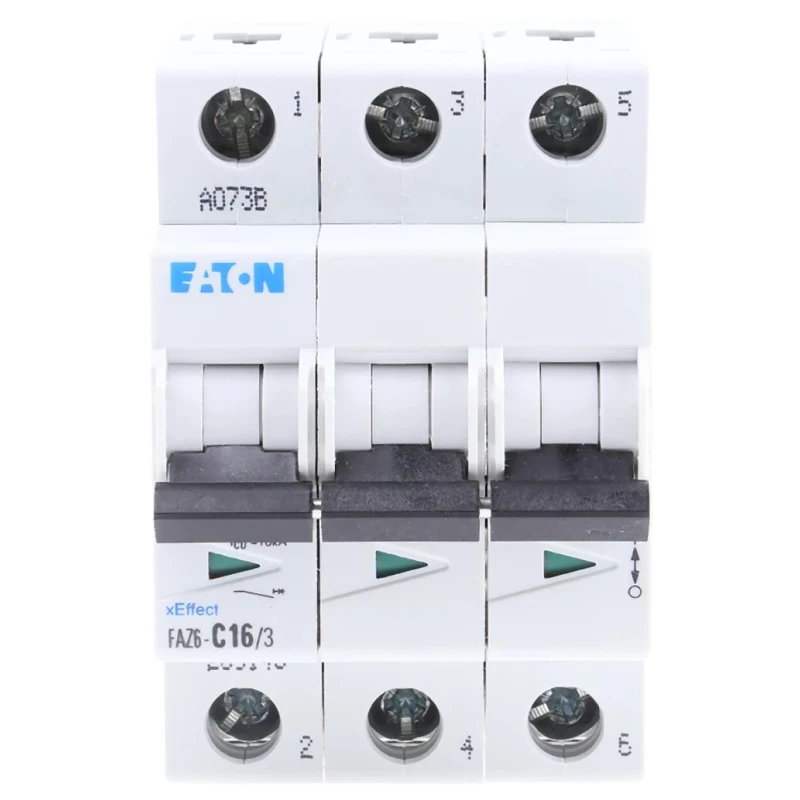

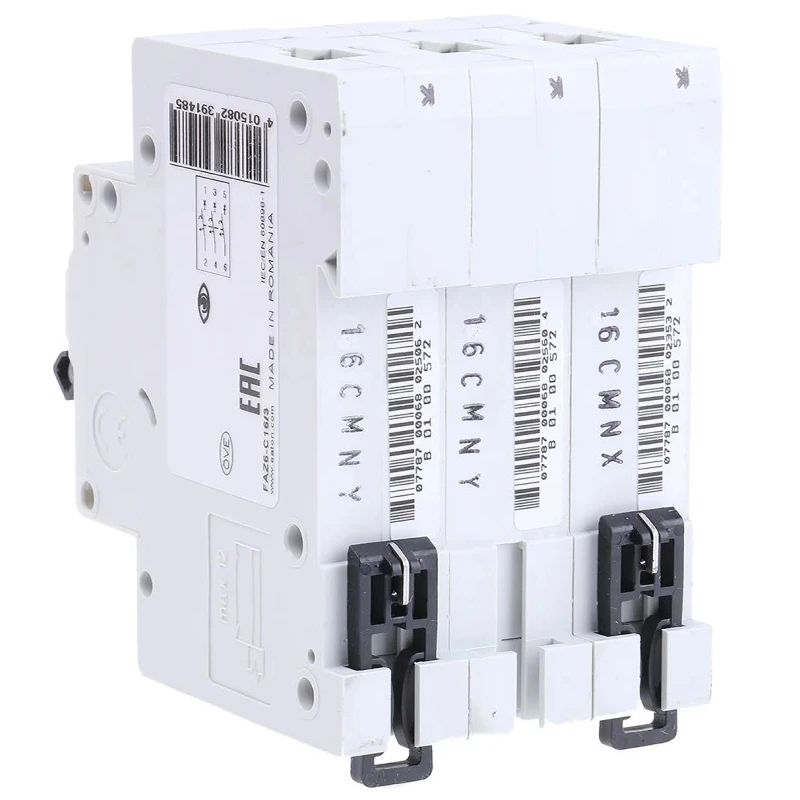

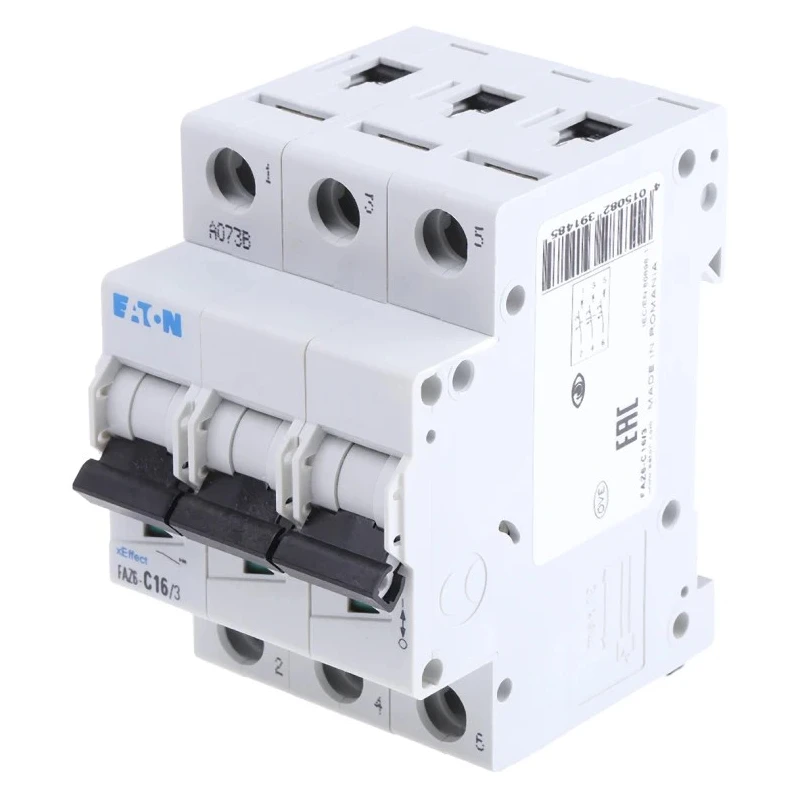

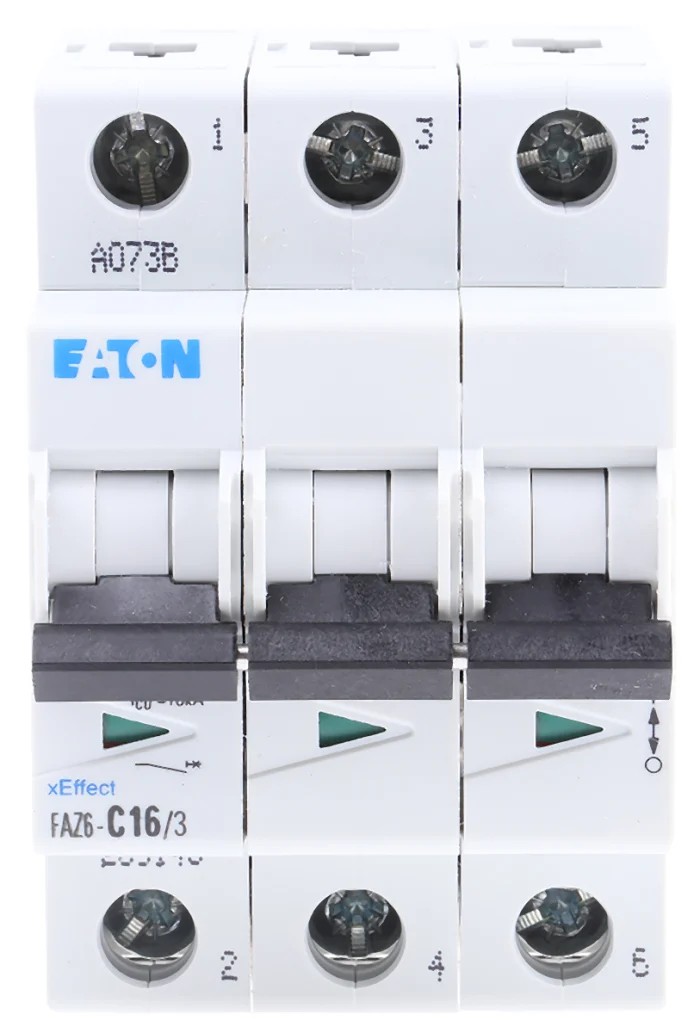

Eaton xEffect Series Miniature Circuit Breaker, 3-Pole, 16A, Type C, 400V AC, 6 kA Breaking Capacity 239148 FAZ6-C16/3

Free Delivery in India | Lowest Global Shipping Charges

Eaton xEffect Series Miniature Circuit Breaker, 3-Pole, 16A, Type C, 400V AC, 6 kA Breaking Capacity 239148 FAZ6-C16/3

Name: Eaton xEffect Series Miniature Circuit Breaker, 3-Pole, 16A, Type C, 400V AC, 6 kA Breaking Capacity 239148 FAZ6-C16/3
Brand: Eaton
SKU: 367294
Price: 136.2 USD
Availability: InStock



Category Miniature Circuit Breaker Brand Eaton Condition New

Specifications

Country of Origin	India
Range	xEffect
Brand	Eaton
Model	239148 FAZ6-C16/3
Depth	73mm
IP Rating	IP20
Width	53.1mm
Mount Type	DIN Rail
Current Rating	16A
Series	xEffect
Breaking Capacity	6kA
Number of Poles	3
Standards/Approvals	IEC, EN 60898
Rated AC Voltage	400V ac
Tripping Characteristics	Type C
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch
Break Time	Instantaneous
3 pole type C circuit breaker,10kA 16ABrand	Moeller
Eaton MCB3P, 16A Curve CBrand	Moeller

Key Features

Protects three-phase electrical equipment from short circuits and overloads.
Type C tripping acts between 5 to 10 times the rated current for motor and lighting applications.
Compact design with dimensions suitable for DIN rail mounting.
Thermal magnetic tripping provides rapid response to faults and overload protection.
Durable toggle switch reset actuator for easy operation.
Meets IEC and EN 60898 standards ensuring high reliability.
IP20 rated for protection against solid objects and fingers.
Instantaneous breaking time ensures fast disconnection during faults.

Product Description

Eaton 239148 FAZ6-C16/3 miniature circuit breaker is designed for reliable protection of three-phase electrical installations and equipment. It is rated for 16 amperes with Type C tripping characteristics, providing enhanced protection by tripping under currents between five and ten times its rated capacity, ideal for small electric motors and fluorescent lighting.

This 3-pole circuit breaker operates at a rated AC voltage of 400V and offers a breaking capacity of 6 kiloamperes, effectively safeguarding electrical circuits from short circuits and overloads. Its compact dimensions of 80 mm length, 53.1 mm width, and 73 mm depth facilitate space-efficient DIN rail mounting, contributing to organized electrical panel layouts.

The device employs a thermal magnetic tripping mechanism combining a bimetal strip for thermal overload protection and a magnetic trip for instantaneous reaction to short circuits. The toggle switch actuator allows convenient manual reset after tripping events. Its IP20 rating provides protection against finger access and solid foreign objects, increasing safety in industrial and commercial use cases.

The MCB complies with IEC and EN 60898 standards, ensuring adherence to international quality and safety norms, making it suitable for electrical engineering, manufacturing, and industrial automation applications where reliable circuit protection is critical.

Protects three-phase electrical systems from faults. Type C tripping for surge-prone loads. DIN rail mounting for easy installation. Thermal magnetic mechanism ensures dual protection. Toggle switch for easy manual reset.

Compact dimensions to optimize panel space. Compliant with IEC and EN standards. IP20 protection rating for safety.
