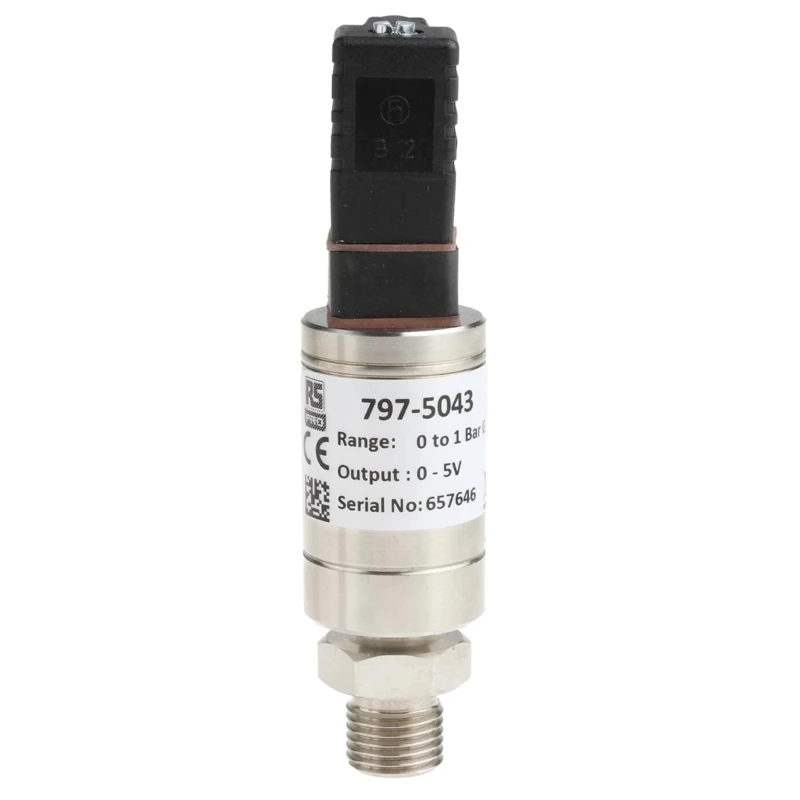

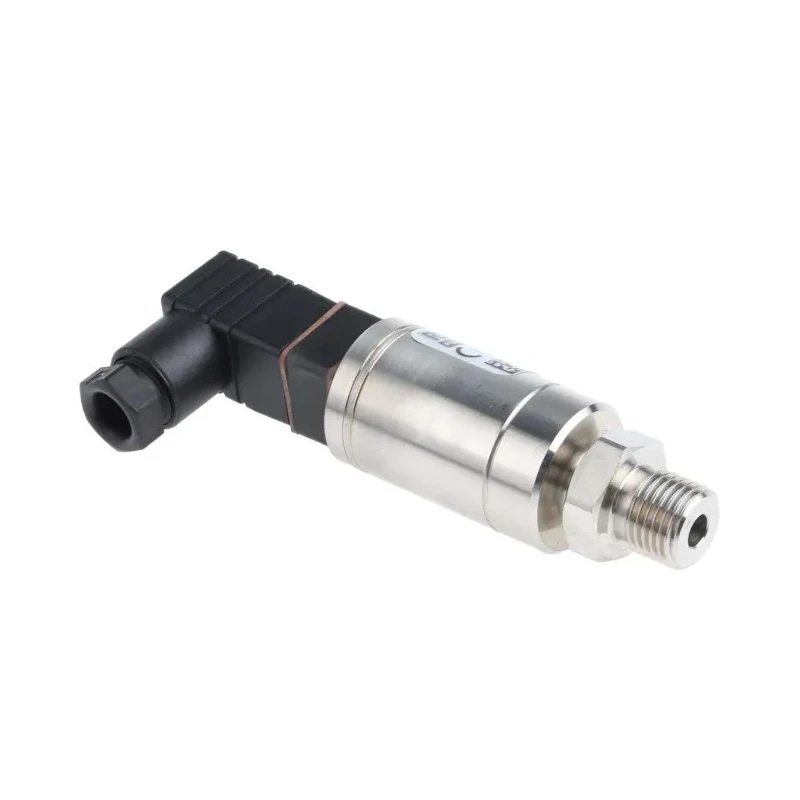

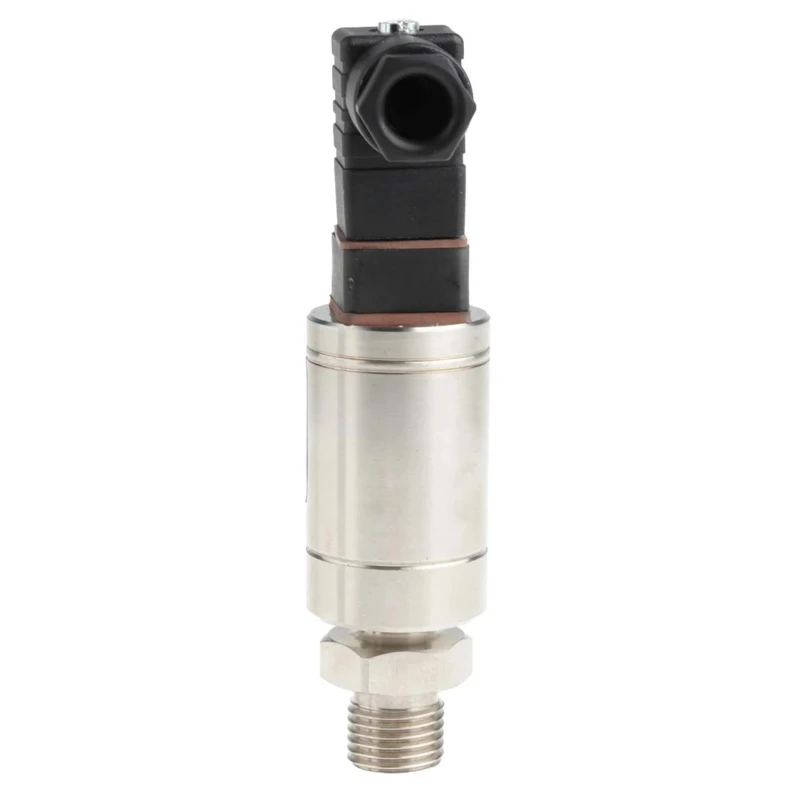

RS PRO Industrial Voltage Output Pressure Sensor, Gauge Reading, 0 bar Min, 1 bar Max, Stainless Steel Housing 797-5043

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Industrial Voltage Output Pressure Sensor, Gauge Reading, 0 bar Min, 1 bar Max, Stainless Steel Housing 797-5043

Name: RS PRO Industrial Voltage Output Pressure Sensor, Gauge Reading, 0 bar Min, 1 bar Max, Stainless Steel Housing 797-5043
Brand: RS PRO
SKU: 372556
Price: 264.81 USD
Availability: InStock



Category Pressure Sensor Brand RS PRO Condition New

Specifications

Country of Origin	China
Accuracy	±0.25 %
Brand	RS PRO
Model	797-5043
IP Rating	IP65
Mount Type	Threaded
Housing Material	Stainless Steel
Output type	Voltage
Maximum Operating Temperature	135°C
Minimum Operating Temperature	-20°C
Terminal type	DIN
Standards/Approvals	CE EMC directive EN 61326-1:2013
Maximum Pressure Measurement	1bar
Minimum Pressure Measurement	0bar
Maximum Supply Voltage	32V dc
Minimum Supply Voltage	9V
Pressure Reading Type	Gauge
Media Measured	Air, Gas, Hydraulic Fluid, Liquid, Water
Standards/Approvals CE EMC directive EN 61326-1	2013
RS PRO Pressure Sensor, 0bar Min, 1bar Max, Analogue OutputBrand	RS PRO

Key Features

The sensor uses a piezo-resistive thick film ceramic sensor for accurate pressure detection.
It offers a ±0.25% accuracy and can measure air, gas, hydraulic fluid, liquid, and water media.
Compact and rugged design with BSP 1/4 and M12 4-pin connector ensures easy installation and durability.
Operating temperature ranges from -20°C to 135°C and it has an IP65 rating for ingress protection.
Designed for industrial automation, process control, and temperature testing facilities applications.
Compatible with supply voltages between 9V and 32V DC and features a threaded mount type.
Stainless steel 316L housing and Viton O-ring seals provide excellent corrosion resistance and media compatibility.
Offers insulation resistance greater than 50M Ohms at 50 Vdc, ensuring operational reliability.

Product Description

RS PRO 797-5043 is an industrial-grade Pressure Sensor with a voltage output designed for gauge pressure readings ranging from 0 bar minimum to 1 bar maximum. It features a piezo-resistive thick film ceramic sensor housed in stainless steel 316L, providing excellent corrosion resistance and media compatibility including air, gas, hydraulic fluid, liquid, and water.

This sensor is compact and rugged, suitable for various industrial applications such as process control, temperature testing facilities, automation, and industrial measurement. The device uses BSP 1/4 mounting thread and an M12 4-pin connector for secure and simple integration into systems.

The accuracy of ±0.25% ensures precise measurements critical for sensitive industrial processes. It supports supply voltages from 9V to 32V DC and operates reliably within a temperature range of -20°C to 135°C. The IP65 rating protects the sensor from dust ingress and water jets, facilitating use in harsh environments.

The sensor's media-wetted parts include stainless steel housing, ceramic Al2O3 96% diaphragm, and Viton O-rings, ensuring durability and long service life. It has an operational lifespan exceeding 100 million cycles and insulation resistance above 50M Ohms at 50 Vdc, guaranteeing high reliability and safety in demanding industrial environments.

Typical use cases encompass automation systems, process control setups, laboratory and industrial measurements, and temperature testing scenarios. The threaded mount design allows flexible installation positioning to suit various industrial setups.

The sensor features a piezo-resistive thick film ceramic sensor. It has a compact, rugged stainless steel 316L housing. Operating temperature range is -20°C to 135°C. It has an IP65 ingress protection rating. Accurate to ±0.25% for reliable pressure sensing.

Compatible with air, gas, hydraulic fluid, liquid, and water media. Supply voltage ranges from 9V to 32V DC. Mount type is threaded with BSP 1/4 and M12 4-pin connector. Operational life exceeds 100 million cycles. Explore the RS PRO range at EnvMart for high-quality industrial measuring instruments and sensors trusted worldwide by professionals for accuracy and durability.
