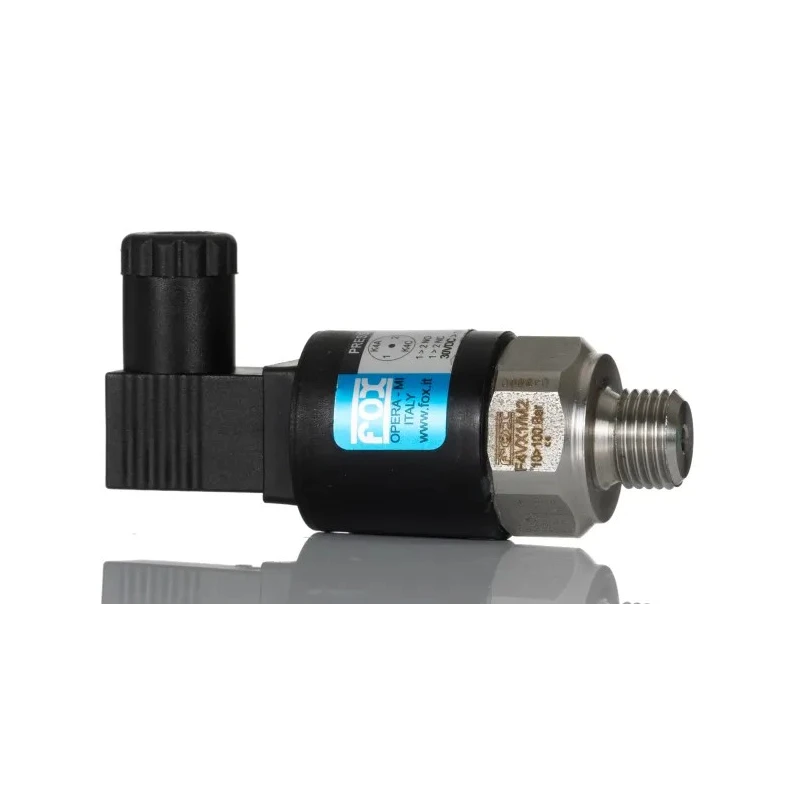

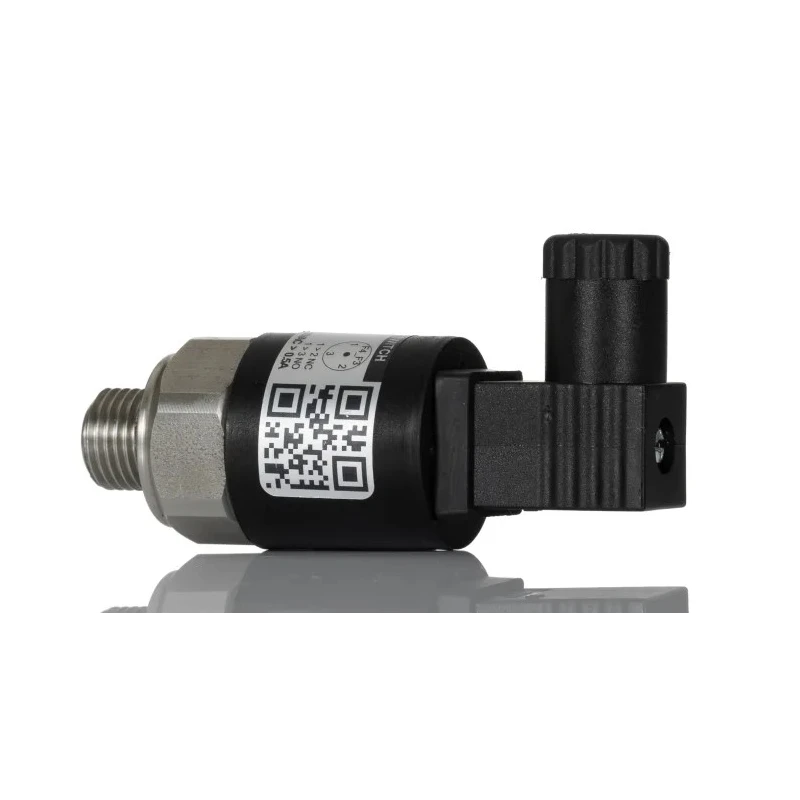

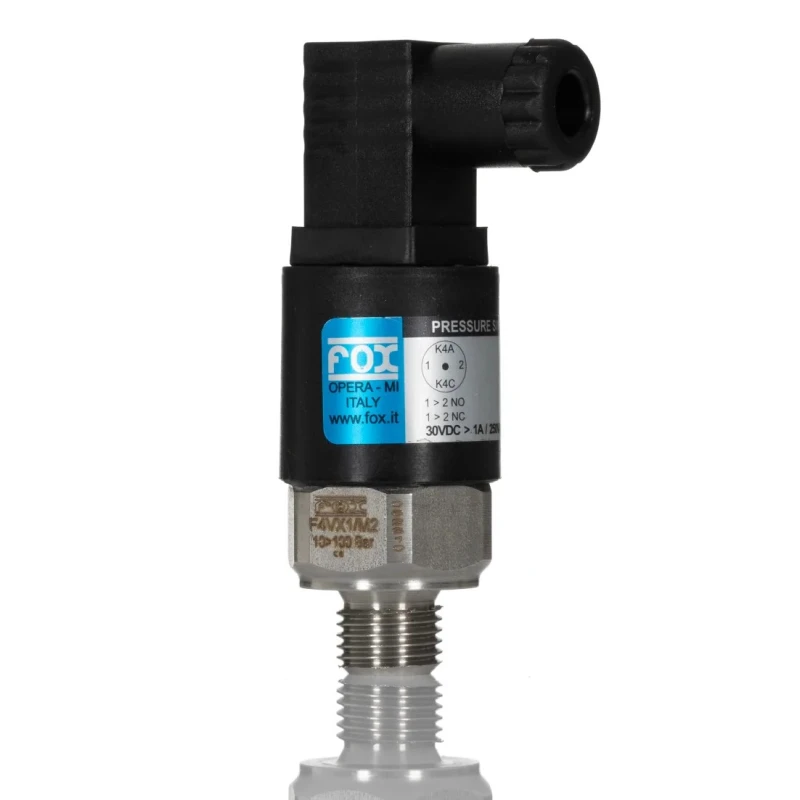

RS PRO Stainless Steel Pressure Sensor 10 bar to 100 bar, 4% Accuracy, DIN Terminal, IP65 Rated 880-2292
Specifications
| Country of Origin | Italy |
|---|---|
| Accuracy | 4 %FS |
| Brand | RS PRO |
| Model | 880-2292 |
| IP Rating | IP65 |
| Mount Type | Any Position |
| Housing Material | Steel |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | DIN |
| Standards/Approvals | DIN 43650 |
| Maximum Pressure Measurement | 100bar |
| Minimum Pressure Measurement | 10bar |
| Maximum Supply Voltage | 25V |
Key Features
- Constructed from robust stainless steel for durability and corrosion resistance.
- Operates within temperature range -25°C to 85°C for versatile use cases.
- Equipped with DIN 43650 terminal for standardized electrical connection.
- IP65 rated housing ensures effective protection against dust and water ingress.
- Adjustable switching pressure enabled by a central screw for customizable set points.
- Can be mounted in any position providing installation flexibility.
- Mechanical stop to prevent over-pressurization damage.
- Ideal for industrial automation, hydraulic systems, and pneumatic controls.
Product Description
RS PRO 880-2292 is a stainless steel pressure sensor suitable for both hydraulic and pneumatic systems, capable of measuring pressures ranging from 10 bar to 100 bar with an accuracy of 4% of full scale. Featuring a robust steel housing with an IP65 rating, it ensures durability and protection in various industrial environments.
The device includes a DIN 43650 electrical connection and can be mounted in any position, providing versatile installation options. Its adjustable switching pressure, set via a central screw, allows precise control and monitoring of pressure conditions. A built-in mechanical stop protects the sensor from damage caused by over-pressurization.
This pressure sensor operates reliably in temperatures from -25°C to 85°C and is designed for applications in manufacturing, automation, hydraulic and pneumatic tooling, and other industrial uses where accurate pressure sensing is critical.
Robust stainless steel construction for long-lasting performance. Wide pressure measurement range with 4% accuracy for precise monitoring. IP65 rated housing providing dust and water resistance. Standard DIN 43650 terminal connection ensuring compatibility.
Flexible mounting options for varied industrial setups. Adjustable pressure switching with mechanical overpressure protection. Suitable for both pneumatic and hydraulic applications.
Experience reliable pressure sensing and control with the RS PRO 880-2292 sensor. Explore more products in the Pressure Sensor category at EnvMart for industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures pressures ranging from 10 bar to 100 bar.
It has an accuracy of 4% of full scale (FS).
The sensor is equipped with a DIN 43650 terminal for standardized electrical connections.
It has an IP65 rating, providing protection against dust and water ingress.
It operates reliably within a temperature range of -25°C to 85°C.
Yes, it can be mounted in any position, offering flexible installation options.
The housing is constructed from robust stainless steel, ensuring durability and corrosion resistance.
Yes, it includes a built-in mechanical stop to prevent damage from over-pressurization.
It is suitable for industrial automation, hydraulic systems, and pneumatic controls.
The maximum supply voltage is 25V.
It complies with the DIN 43650 standards.
The switching pressure can be adjusted via a central screw, allowing for customizable set points.
