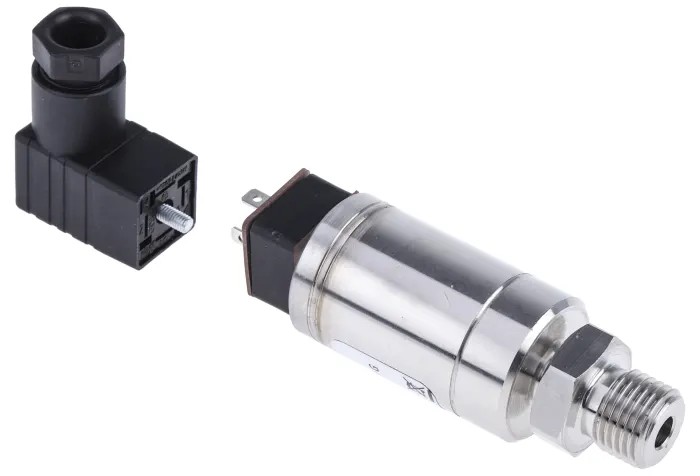

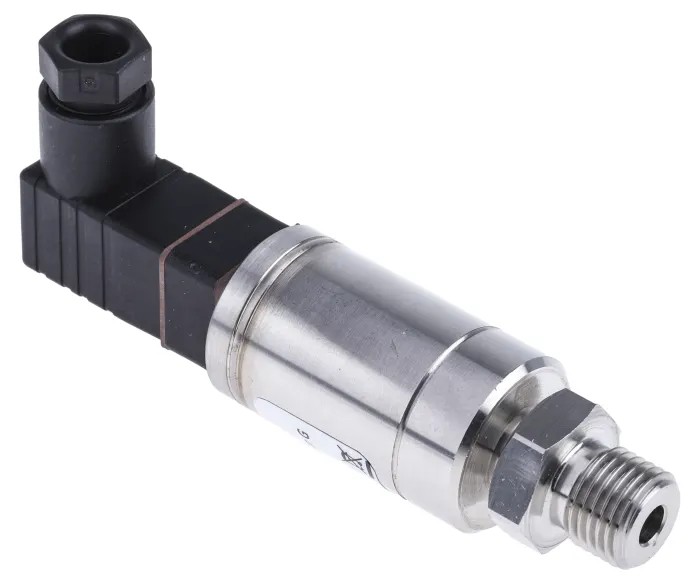

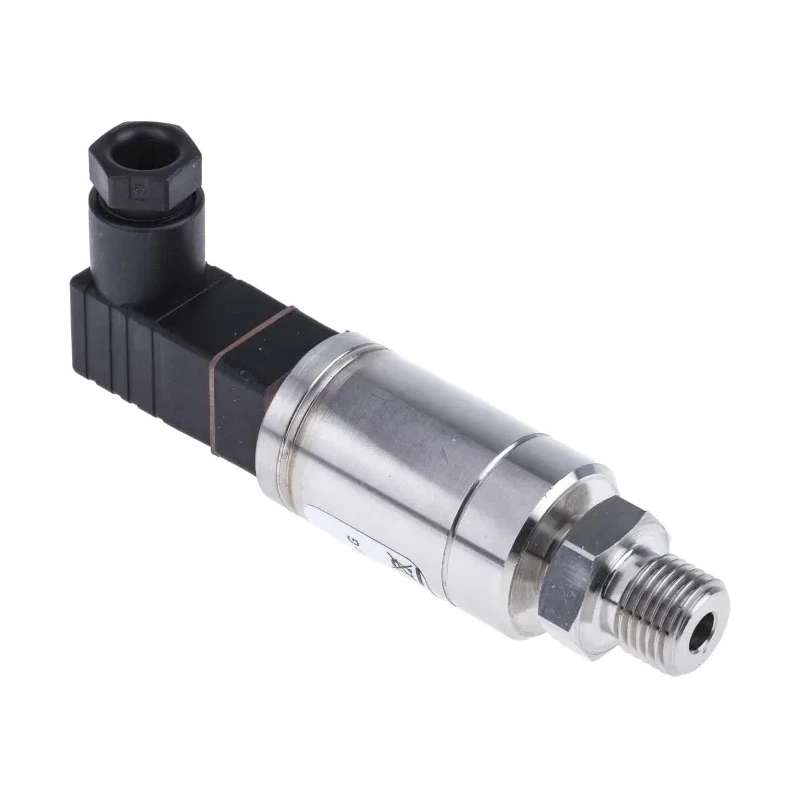

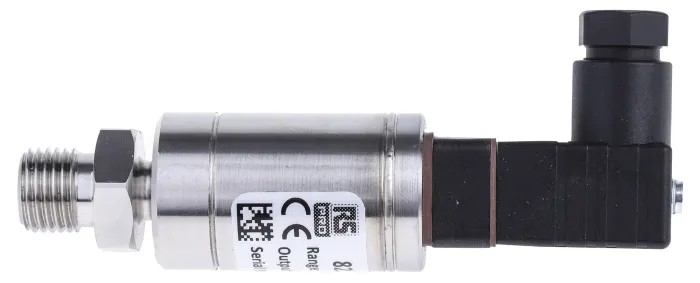

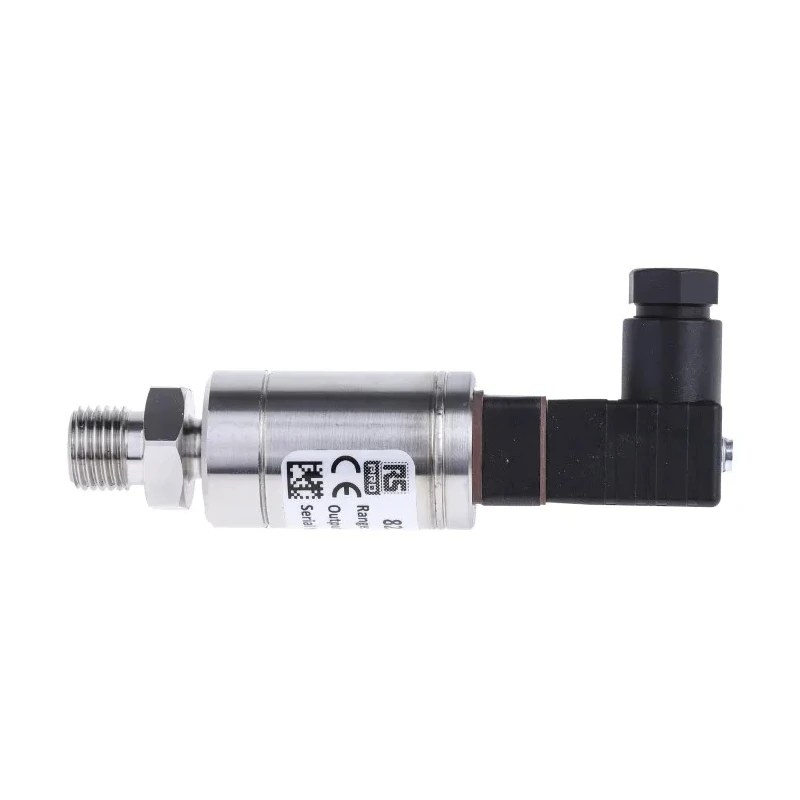

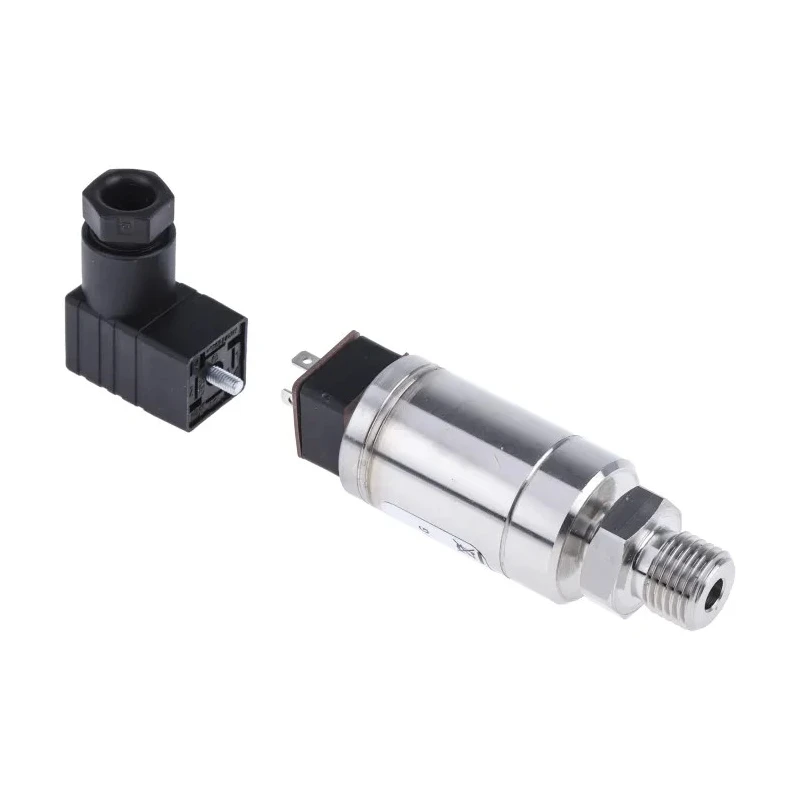

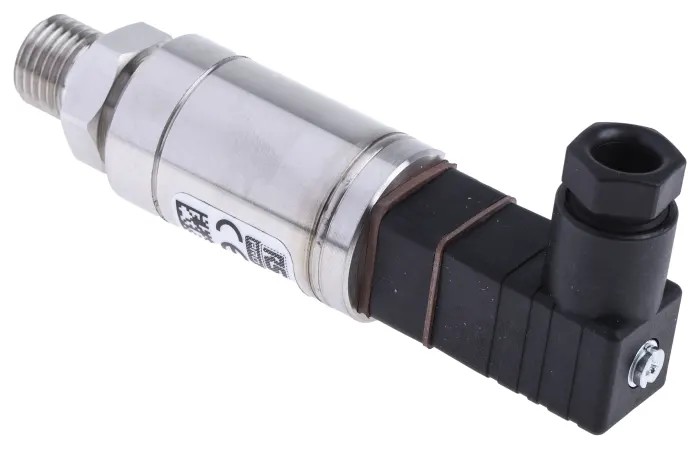

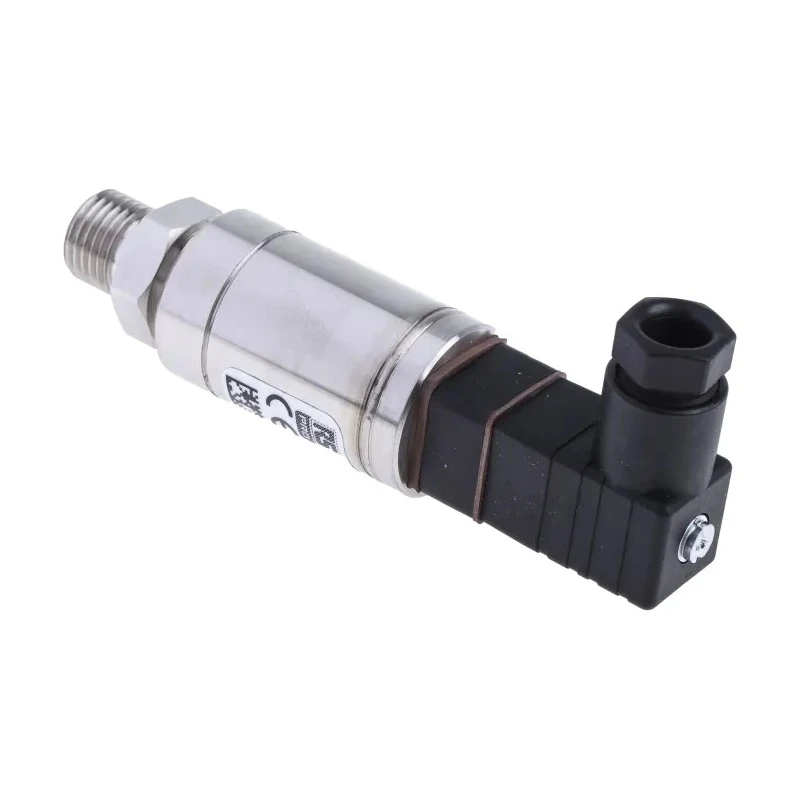

RS PRO Pressure Sensor, Voltage Output 0 bar to 16 bar, Gauge Reading, Threaded Mount, Stainless Steel Housing 828-5745
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | RS PRO |
| Model | 828-5745 |
| IP Rating | IP65 |
| Mount Type | Threaded |
| Housing Material | Stainless Steel |
| Output type | Voltage |
| Maximum Operating Temperature | 135°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | DIN |
| Standards/Approvals | CE EMC directive EN 61326-1:2013 |
| Maximum Pressure Measurement | 16bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 32V dc |
| Minimum Supply Voltage | 9V |
| Pressure Reading Type | Gauge |
| Media Measured | Air, Gas, Hydraulic Fluid, Liquid, Water |
| Standards/Approvals CE EMC directive EN 61326-1 | 2013 |
| RS PRO Pressure Sensor, Current Output 0 bar 16 bar, Relative ReadingBrand | RS PRO |
Key Features
- Piezo-resistive thick film ceramic sensor ensures accurate pressure measurement.
- Compact and rugged design suitable for industrial applications.
- Compatible with air, gas, hydraulic fluid, liquid, and water media.
- DIN terminal type with M12 4-pin connector for secure connections.
- Operating temperature range from -20°C to 135°C supports various environments.
- High accuracy with ±0.25% measurement tolerance.
- Stainless Steel 316L housing and Viton O-ring seals provide durability and chemical resistance.
- IP65 rated for protection against dust and water jets.
Product Description
RS PRO 828-5745 is a high-quality pressure sensor designed to convert pressure levels into voltage signals for gauge pressure measurement ranging from 0 bar to 16 bar. Its robust stainless steel 316L housing with ceramic Al2O3 diaphragm provides excellent media compatibility and resistance to harsh industrial environments.
This Pressure Sensor incorporates a piezo-resistive thick film ceramic sensor deliver reliable and precise readings with an accuracy of ±0.25%. The unit is suitable for measuring pressures in various media including air, gas, hydraulic fluids, liquids, and water.
Equipped with an M12 4-pin connector and DIN terminal type, it facilitates easy integration into control systems. Its threaded mount type ensures secure installation with flexibility in positioning. The sensor operates on supply voltages between 9V and 32V dc and meets CE EMC directive EN 61326-1:2013 standards.
With an operational temperature range from -20°C to 135°C and IP65 ingress protection, the sensor is capable of withstanding demanding industrial and automation scenarios. The Viton O-ring seals and stainless steel housing guarantee durability under rigorous conditions.
Applications include process control, automation systems, industrial measurement, and temperature testing facilities. The device offers a compact, rugged design and long operational life exceeding 100 million cycles, making it suitable for continuous industrial use.
Piezo-resistive thick film ceramic sensor provides high precision. Rugged stainless steel 316L housing ensures durability. Supports multiple media including air, gas, hydraulic fluid, liquid, and water. CE compliant with EMC directive EN 61326-1:2013.
IP65 rated for dust and water jet protection. Flexible mounting options with threaded design. Wide operating temperature range from -20°C to 135°C. Long operational life with over 100 million cycles. Compact and space-saving industrial sensor design.
Suitable for automation, industrial measurement, and process control. Explore the extensive range of industrial sensors and measuring instruments at EnvMart for reliable, precision-engineered solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures gauge pressure from 0 bar to 16 bar.
It is compatible with air, gas, hydraulic fluids, liquids, and water.
The accuracy of this sensor is ±0.25%.
The sensor operates within a temperature range of -20°C to 135°C.
It provides a voltage output.
This model features a threaded mount type for secure installation.
It requires a supply voltage between 9V and 32V DC.
The housing is made of stainless steel 316L, providing durability and chemical resistance.
It is equipped with an M12 4-pin connector and DIN terminal type for secure connections.
The sensor has an IP65 rating, providing protection against dust and water jets.
It complies with the CE EMC directive EN 61326-1:2013 standards.
It is suitable for process control, automation systems, industrial measurement, and temperature testing facilities.
