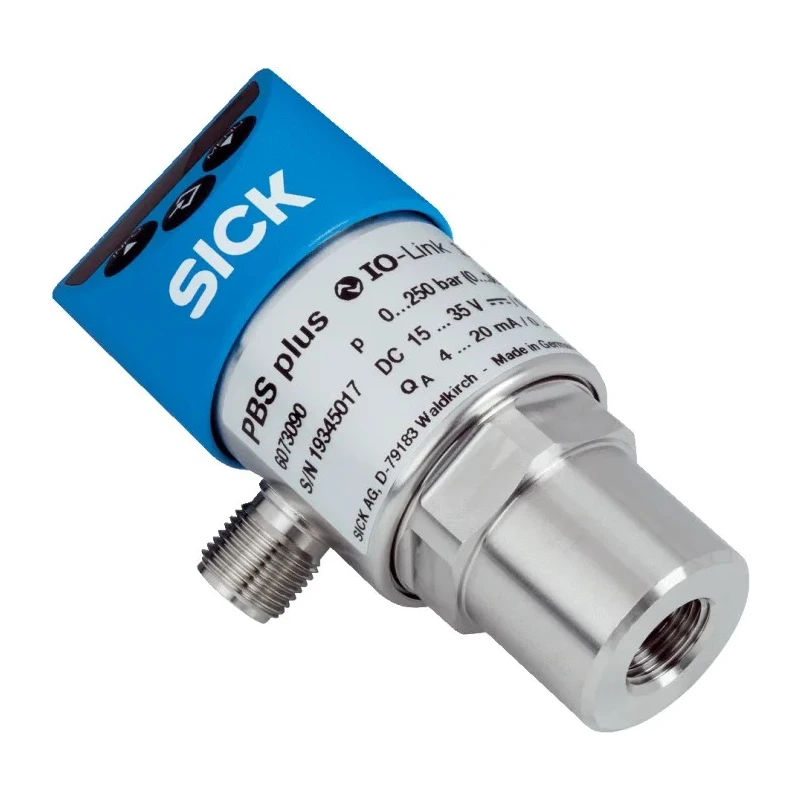

SICK PBS Plus Series Pressure Sensor PNP/NPN NO/NC Current/Voltage Output 0 bar to 250 bar Relative PBS2-RB250SG2SS0NMA0Z
Specifications
| Country of Origin | Germany |
|---|---|
| Accuracy | ±0.5 % |
| Brand | SICK |
| Response time | 5ms |
| Model | PBS2-RB250SG2SS0NMA0Z |
| IP Rating | IP67 |
| Mount Type | Threaded |
| Housing Material | Plastic, Stainless Steel |
| Output type | PNP/NPN NO/NC + Current/Voltage |
| Series | PBS Plus |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Interface Type | IO-Link |
| Maximum Pressure Measurement | 250bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 35V |
| Minimum Supply Voltage | 15V |
| Pressure Reading Type | Relative |
| Media Measured | Air, Gas, Hydraulic Fluid, Liquid, Oil, Water |
| Scalable analog output (5 | 1 turn down) |
| High measurement accuracy | ± 0.5% |
| Rugged design | stainless steel measuring cell |
Key Features
- The sensor features switchable PNP/NPN NO/NC outputs and scalable current/voltage analog output.
- It provides a high measurement accuracy of ±0.5% for precise pressure monitoring.
- Equipped with IO-Link interface for transmitting process data and diagnostics.
- Housing and display can be twisted and rotated for optimal mounting and ease of installation.
- Robust build with stainless steel measuring cell and IP67 rated protection for harsh environments.
- Suitable for measuring air, gas, hydraulic fluid, liquid, oil, and water media.
- Designed to operate in wide temperature range from -20°C to 85°C.
- Applications include hydraulic systems, CNC machine control, cooling systems, and hydrostatic level measurement.
Product Description
SICK PBS2-RB250SG2SS0NMA0Z is a high-precision pressure sensor from the PBS Plus series designed for measuring relative pressures from 0 bar up to 250 bar. It integrates switchable PNP/NPN NO/NC switching outputs with a scalable current/voltage analog output, providing versatile signal options for industrial control systems. The sensor’s highly accurate measurement (±0.5%) ensures reliable performance for a range of industrial applications.
The PBS Plus sensor features IO-Link communication capability, which transmits precise process data including pressure values in bar and allows for extensive diagnostics such as pressure peaks and ambient temperature monitoring. Its innovative housing design allows twisting at two points and the display rotation by 180° to facilitate optimum mounting in constrained spaces and reduce installation time.
Constructed with a stainless steel measuring cell and protected with a plastic and stainless steel housing, the sensor offers IP67 ingress protection, making it durable for demanding environments involving liquids, gases, or hydraulic fluids. The sensor operates reliably in temperatures from -20°C to 85°C and supports a supply voltage range of 15 V to 35 V.
Typical applications for the PBS Plus series pressure sensor include system pressure measurement in hydraulic machines, clamping pressure control in CNC machinery, monitoring cylinder pressure in presses, regulating pressure in lubricant and cooling systems, and performing hydrostatic level measurement. Its compact threaded mount and rugged construction support installation in various industrial, manufacturing, and process control settings.
The sensor outputs switchable PNP/NPN and current/voltage signals allowing flexible integration. High accuracy ensures precise monitoring vital for process control and safety. IO-Link interface supports modern data communication and diagnostic capabilities.
Robust IP67 rated housing protects the sensor from dust and water ingress. Wide operating temperature and media compatibility enable versatile industrial use.
The PBS Plus series is a reliable choice for demanding automation tasks requiring accurate pressure sensing combined with comprehensive communication functionalities. Explore related Pressure Sensors and control gear in the EnvMart catalog for complementary equipment solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure relative pressures from 0 bar to 250 bar.
It features a high measurement accuracy of ±0.5%.
It offers switchable PNP/NPN NO/NC outputs along with scalable current and voltage analog outputs.
The sensor operates in a temperature range from -20°C to 85°C.
This unit has an IP67 rating, providing protection against dust and water ingress.
It is suitable for measuring air, gas, hydraulic fluid, liquid, oil, and water.
The response time is 5 milliseconds.
It features a threaded mount type for installation.
The housing is made of plastic and stainless steel, ensuring durability.
It is equipped with an IO-Link interface for data transmission and diagnostics.
The sensor requires a supply voltage between 15 V and 35 V.
Typical applications include hydraulic systems, CNC machine control, cooling systems, and hydrostatic level measurement.
