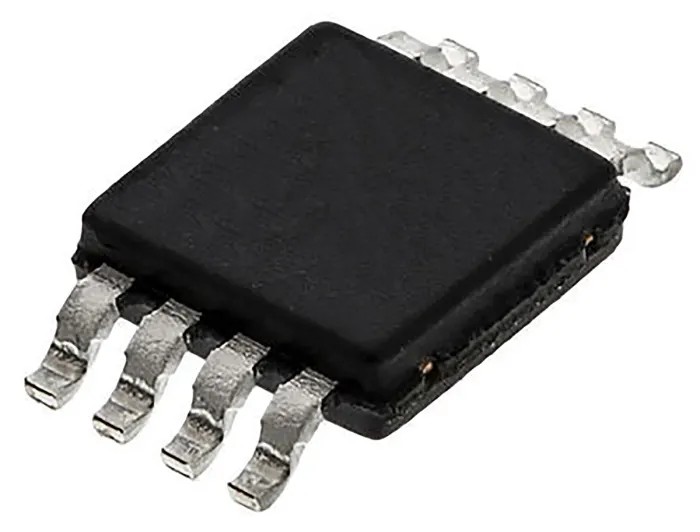

Microchip Operational Amplifier 1 MHz 8-Pin MSOP 6V MCP6L02T-E/MS
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 0.95mm |
| Length | 3mm |
| Model | MCP6L02T-E/MS |
| Width | 3mm |
| Mount Type | Surface |
| Supply Voltage range | 1.8V to 6V |
| Series | MCP6L02 |
| Output Current | 30mA |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Quiescent Current | 85 μA (typical) |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 2 pA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 0.6V/μs |
| Input Offset Current | 1 pA |
| Extended temperature range | -40°C to +125°C |
Key Features
- Features a gain bandwidth product of 1 MHz for reliable amplification.
- Operates with supply voltage ranging from 1.8 V to 6 V.
- Supports dual channels in an 8-pin MSOP surface mount package.
- Exhibits low quiescent current of 85 μA ensuring energy efficiency.
- Input bias current is 2 pA with input offset current of 1 pA for precision.
- Slew rate is 0.6 V/μs allowing accurate signal transitions.
- Works across a wide temperature range from -40°C to +125°C for harsh environments.
- RoHS compliant ensuring adherence to environmental standards.
Product Description
Microchip MCP6L02T-E/MS is an operational amplifier designed for general-purpose applications requiring stable and reliable signal amplification. It is packaged in an 8-pin MSOP surface mount format, allowing easy integration into compact electronic circuits.
This amplifier operates with a supply voltage range from 1.8 V to 6 V, making it versatile for low voltage and moderate voltage systems. With a gain bandwidth product of 1 MHz, it supports accurate amplification of signals in industrial, laboratory, and consumer electronics.
The device features a low quiescent current consumption of 85 μA typical, contributing to energy-efficient operation and suitable for battery-powered applications. It has a dual-channel configuration, enabling simultaneous amplification of two signals in a single package.
Precision is enhanced with an input bias current of 2 pA and an input offset current of 1 pA, while the input offset voltage is maintained at 5 mV, ensuring minimal error in signal processing. The slew rate of 0.6 V/μs supports faithful reproduction of rapidly changing signals.
Its operating temperature range extends from -40°C to +125°C, making the MCP6L02T-E/MS suitable for use in harsh and variable environmental conditions encountered in automotive, industrial, and outdoor electronics.
The amplifier meets RoHS compliance standards, ensuring it is free from hazardous substances and environmentally friendly.
Physical dimensions are compact with a length and width of 3 mm each, and a height of 0.95 mm, optimizing PCB space usage. The maximum output current capability of 30 mA allows it to drive various loads effectively.
This operational amplifier is widely used across industrial automation, control systems, instrumentation, and communication devices. It supports applications requiring precision amplification, low power consumption, and temperature resilience.
Explore similar Operational Amplifiers under the semiconductor category for enhanced electronic design solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6L02T-E/MS features a gain bandwidth product of 1 MHz, allowing for reliable amplification of signals.
It operates with a supply voltage range from 1.8 V to 6 V, making it suitable for both low and moderate voltage applications.
This operational amplifier supports dual channels, enabling simultaneous amplification of two signals.
The typical quiescent current consumption is 85 μA, contributing to its energy-efficient operation.
It has an input bias current of 2 pA, which helps ensure precision in signal processing.
The physical dimensions are 3 mm in length and width, with a height of 0.95 mm, optimizing PCB space usage.
The maximum output current capability is 30 mA, allowing it to effectively drive various loads.
It operates across a wide temperature range from -40°C to +125°C, making it suitable for harsh environments.
The slew rate is 0.6 V/μs, supporting accurate signal transitions for rapidly changing signals.
Yes, it is RoHS compliant, ensuring adherence to environmental standards and being free from hazardous substances.
The input offset voltage is maintained at 5 mV, ensuring minimal error in signal processing.
It is packaged in an 8-pin MSOP surface mount format, allowing for easy integration into compact electronic circuits.
