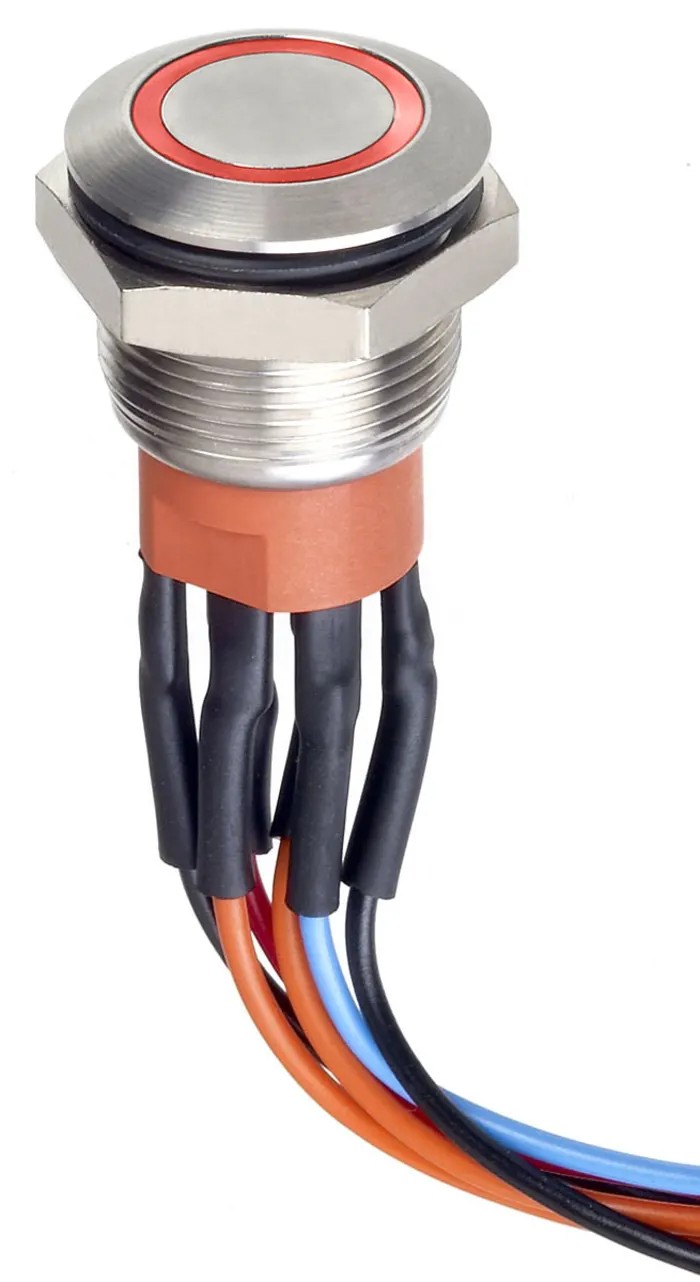

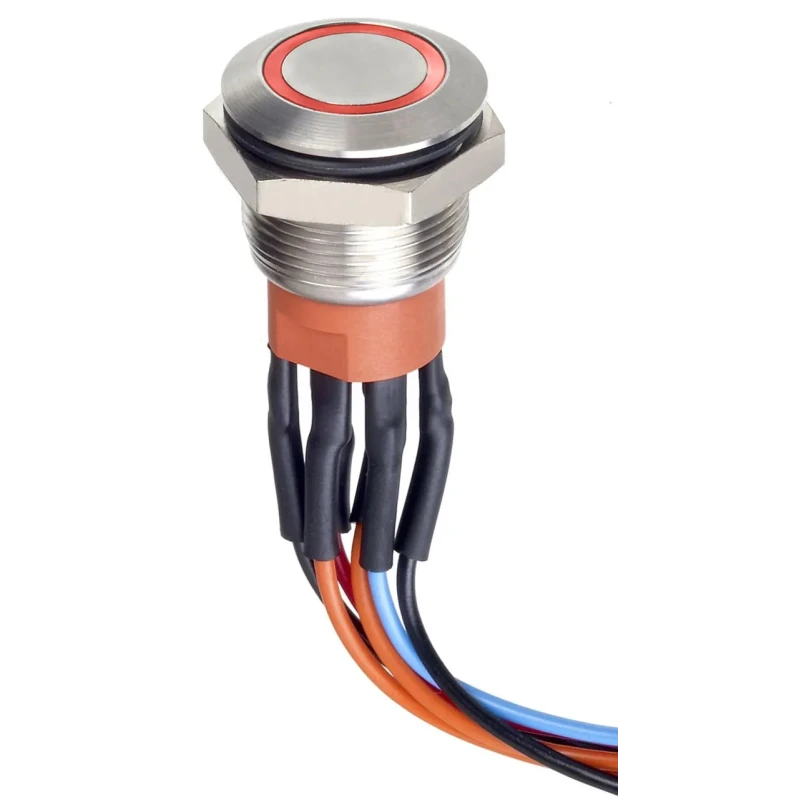

APEM AV Series Illuminated Push Button Switch Momentary Panel Mount 19.2 mm Cutout SPDT Red LED IP67 30 V dc AV9612F1020840K

Name: APEM AV Series Illuminated Push Button Switch Momentary Panel Mount 19.2 mm Cutout SPDT Red LED IP67 30 V dc AV9612F1020840K
Brand: APEM
SKU: 365875
Price: 4073.2 INR
Availability: InStock



Category Push Button Switches Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Length	200mm
Model	AV9612F1020840K
IP Rating	IP67
Mount Type	Panel
Series	AV
Maximum Operating Temperature	55°C
Contact Configuration	SPDT
Switch Configuration	NC/NO
Minimum Operating Temperature	-20°C
Panel Cutout Size	19.2 mm
Terminal type	Flying Lead
Standards/Approvals	RoHS
LED Colour	Red
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	30V dc
Actuator Style	Flat
Switch Contact Current	1A
Very robust	impact resistance IK10

Key Features

Features a 19.2 mm panel cutout size for easy installation.
SPDT contact configuration with momentary switch operation.
Red LED illumination ensures clear status indication.
IP67 rated for dust and water resistance, suitable for harsh environments.
Operates at 30 V dc with a contact current rating of 1A.
Durable design with impact resistance IK10 and anti-vandal construction.
Includes a flat silver actuator and flying lead terminals for connection.
Wide operating temperature range from -20°C to 55°C.

Product Description

APEM AV9612F1020840K is an illuminated push button switch from the AV Series, designed for momentary panel mount applications requiring robust performance.

The switch features a 19.2 mm cutout and a stainless steel actuator with a flat silver finish. It has a SPDT contact configuration with NC/NO switch contacts, suitable for varied control circuits. The red LED illumination ring provides clear visual feedback during operation.

Constructed to meet IP67 protection, this switch is dust-tight and can withstand immersion in water, making it ideal for industrial, automation, and electrical control panel applications. The anti-vandal design includes anti-jamming construction and reduced travel to prevent foreign object insertion, contributing to its long service life.

With a contact voltage rating of 30 V dc and a contact current of 1A, it supports low voltage control systems. The switch's materials and design provide impact resistance rated IK10, boosting durability in harsh environments.

The operating temperature range from -20°C to 55°C allows use in a variety of environmental conditions. This product complies with RoHS standards, ensuring it meets environmental safety regulations.

Typical applications include industrial machinery controls, laboratory instrumentation, HVAC systems, packaging equipment, and manufacturing automation, where reliable, illuminated push button switches are required.

Features a 19.2 mm panel cutout for precise mounting. Momentary switch operation with SPDT contact configuration. Illuminated with a red LED ring for clear status indication. High ingress protection with IP67 rating for water and dust resistance.

Impact resistant with IK10 rating and anti-vandal construction. Stainless steel actuator and bushing for enhanced durability. Suitable for operating temperatures from -20°C up to 55°C. Compliant with RoHS environmental standards.

Contact voltage: 30 V dc; Contact current: 1A. Terminals feature flying lead connections for flexible wiring. Explore our extensive range of Push Button Switches and illumination solutions on EnvMart for high-quality industrial electrical components.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The switch features a SPDT (Single Pole Double Throw) contact configuration with NC (Normally Closed) and NO (Normally Open) switch contacts, suitable for various control circuits.

It requires a panel cutout size of 19.2 mm for installation.

The operating temperature range is from -20°C to 55°C, allowing it to function in various environmental conditions.

It features a red LED illumination ring that provides clear visual feedback during operation.

This model has an IP67 rating, making it dust-tight and capable of withstanding immersion in water.

The contact current rating is 1A, suitable for low voltage control systems.

It includes flying lead terminals for flexible wiring connections.

The actuator is made of stainless steel with a flat silver finish, enhancing its durability.

Yes, it complies with RoHS standards, ensuring it meets environmental safety regulations.

It has an impact resistance rating of IK10, contributing to its robustness in harsh environments.

Typical applications include industrial machinery controls, laboratory instrumentation, HVAC systems, packaging equipment, and manufacturing automation.

The contact voltage rating is 30 V dc, making it suitable for various low voltage applications.
