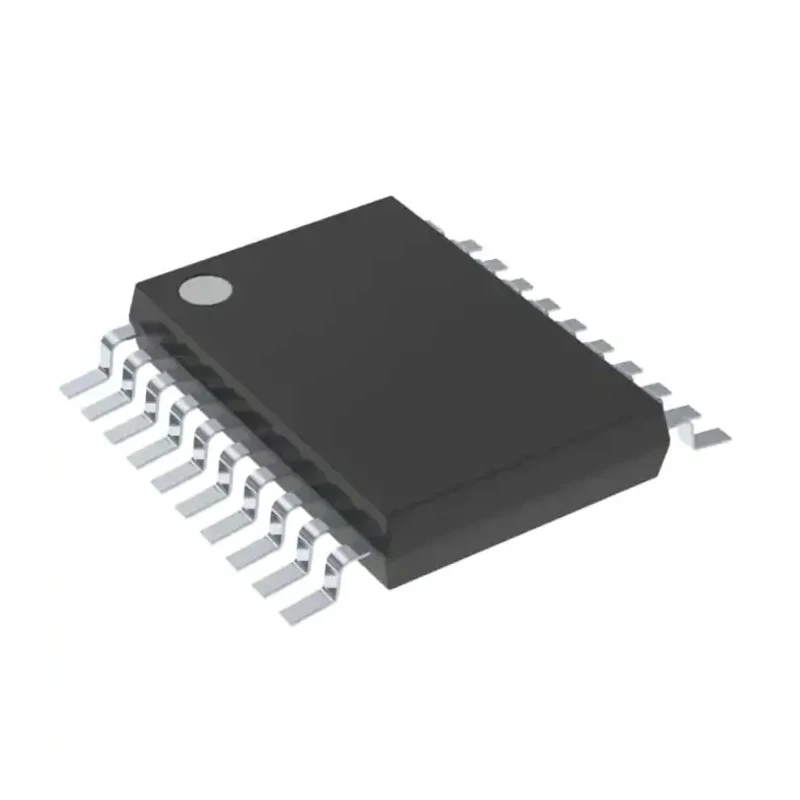

Microchip Digital to Analogue Converter 12-bit 4-Channel SPI Interface 20-Pin TSSOP MCP48FEB24-20E/ST
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 1.2mm |
| Length | 4.5mm |
| Model | MCP48FEB24-20E/ST |
| Width | 3.1mm |
| Settling Time | 7.8μs |
| Output type | Analogue Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Interface Type | SPI |
| Architecture | Resistor Ladder |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
Key Features
- Offers a high precision 12-bit resolution for accurate voltage output.
- Includes four independent channels for versatile analog signal generation.
- Employs a resistor ladder architecture ensuring stable output signals.
- Operates with a supply voltage ranging from 2.7V to 5.5V.
- Supports SPI interface for easy digital communication and control.
- Compact 20-pin TSSOP surface-mount package with dimensions 4.5mm x 3.1mm x 1.2mm.
- Fast settling time of 7.8 microseconds suitable for responsive applications.
- Wide operating temperature range from -40°C to 125°C for robust performance.
Product Description
Microchip MCP48FEB24-20E/ST is a 12-bit resolution Digital to Analogue Converter (DAC) featuring four independent analog output channels. It utilizes a resistor ladder architecture delivering stable and accurate voltage outputs with a settling time of 7.8 microseconds. This device operates on a supply voltage range from 2.7V to 5.5V, providing flexible power supply options for various electronic systems. Encased in a 20-pin TSSOP surface-mount package with compact dimensions of 4.5mm length, 3.1mm width, and 1.2mm height, it is suited for space-constrained PCB designs.
The MCP48FEB24-20E/ST supports an SPI compatible interface for seamless integration with microcontrollers and digital control devices. It operates reliably across a wide temperature range from -40°C up to 125°C, suitable for both commercial and industrial environments. Although lacking automotive standards certification, it excels in applications requiring precise analog voltage outputs such as instrumentation, industrial automation, data acquisition, and signal processing systems.
This DAC series offers volatile memory to temporarily store output values and is accessible via a simple and efficient SPI bus. Its buffered voltage output ensures reduced loading effects, thereby enhancing measurement and control accuracy.
High accuracy 12-bit DAC resolution for refined analog output levels. Four output channels enable multiple independent analog outputs from a single device. Resistor ladder architecture designed for low noise and stable outputs.
SPI interface provides easy communication and configuration via standard protocols. Wide power supply operating voltage from 2.7V to 5.5V for flexible system design. Compact 20-pin TSSOP package suitable for dense PCB layouts.
Fast settling time of 7.8 microseconds facilitating quick response in control systems. Robust operation over extended temperature from -40°C to 125°C. Ideal for industrial, laboratory, and electronic instrumentation applications.
Explore the Microchip DAC line for reliable, precise digital to analog conversion supporting diverse electronic and embedded applications. Browse EnvMart’s extensive catalog for complementary semiconductor and electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model offers a high precision 12-bit resolution for accurate voltage output.
It features four independent output channels, allowing for versatile analog signal generation.
This unit operates with a supply voltage ranging from 2.7V to 5.5V, providing flexible power supply options.
It supports an SPI interface for easy digital communication and control with microcontrollers.
The device is encased in a compact 20-pin TSSOP package with dimensions of 4.5mm x 3.1mm x 1.2mm.
The settling time for the MCP48FEB24-20E/ST is 7.8 microseconds, suitable for responsive applications.
This model operates reliably over a wide temperature range from -40°C to 125°C.
It employs a resistor ladder architecture, ensuring stable and accurate voltage outputs.
The output type is an analogue voltage, suitable for various applications requiring voltage signals.
This device has a pin count of 20, making it compatible with various PCB designs.
The country of origin for this model is India.
It is ideal for applications such as instrumentation, industrial automation, data acquisition, and signal processing systems.
