Meder Reed Relay SPNO SIL05 Series Fully Sealed Construction 200Vac Switching Voltage SIL05-1A72-71D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Meder |
| Model | SIL05-1A72-71D |
| Series | SIL05 |
| Standards/Approvals | EN 60062 |
| Electrical Life | 5 x 106 operations |
Key Features
- Designed for long electrical life of 5 million operations.
- Features a fully sealed construction ensuring robust performance.
- Contact material uses rhodium for enhanced durability.
- Operates with a switching voltage capacity of up to 200Vac.
- Built to withstand vibration resistance between 10 and 2000Hz at 20g.
- Complies with EN 60062 standards and carries VDE and UL approvals.

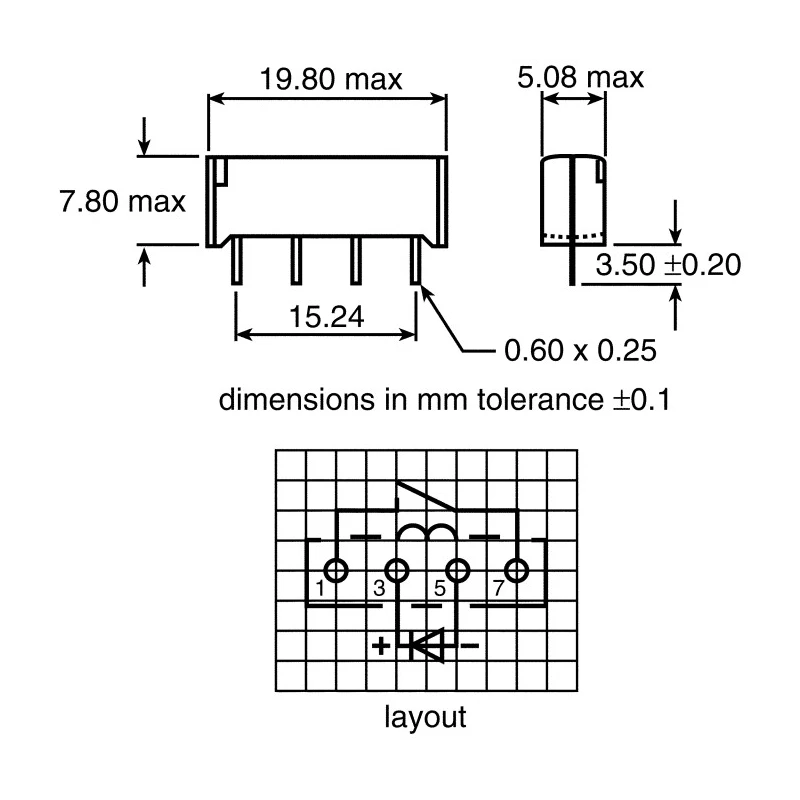

- Compact SPNO form factor measuring 5 x 19 x 8 mm.
- Ideal for use in electrical automation and signal conditioning applications.
Product Description

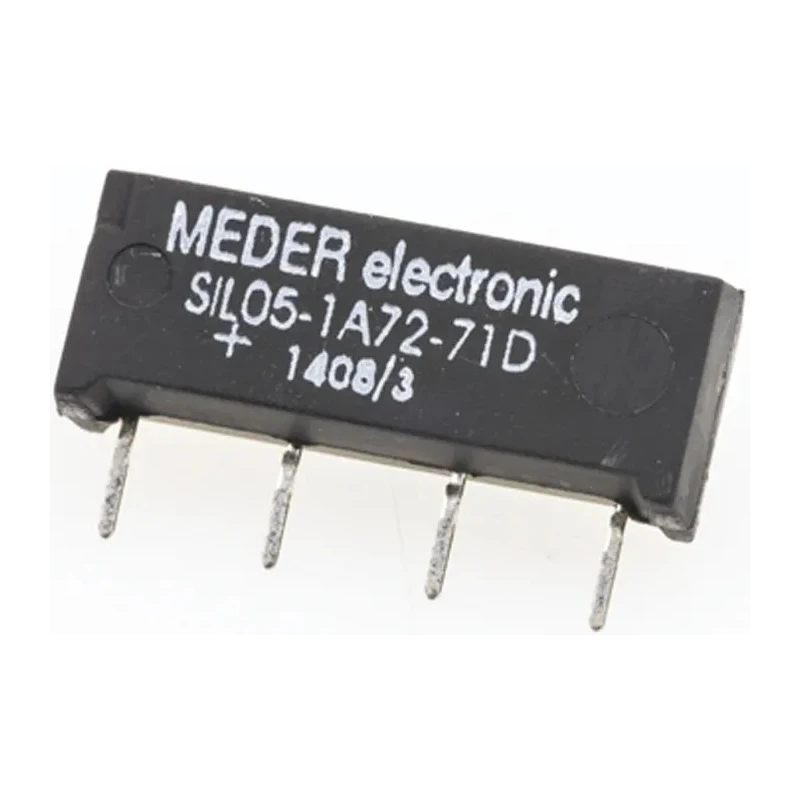

Meder SIL05-1A72-71D Reed Relay is a single-pole, normally open (SPNO) relay from the SIL05 series, known for its fully sealed construction and compact dimensions of 5 x 19 x 8 mm. It is engineered for industrial, automation, and electrical applications requiring reliable switching at voltages up to 200Vac.
This relay features a contact material made of rhodium providing excellent conductivity and long lasting durability. It boasts an impressive electrical life rated for 5 million (5 x 106) switching operations, offering consistent performance in demanding environments.
Designed to withstand harsh conditions, it has vibration resistance from 10 to 2000Hz at an intensity of 20g, making it well suited for industrial machinery and embedded control systems.
The relay meets the EN 60062 standard and is approved by both VDE and UL, ensuring compliance with recognized safety and quality benchmarks. Typical use cases include signal conditioning, automation control, and other electrical equipment where a reliable and compact reed relay is needed.
Its fully sealed design prevents contamination, contributing to improved operational stability and extended service life. Designed for long electrical life of 5 million operations. Features a fully sealed construction ensuring robust performance.
Contact material uses rhodium for enhanced durability. Operates with a switching voltage capacity of up to 200Vac. Built to withstand vibration resistance between 10 and 2000Hz at 20g. Complies with EN 60062 standards and carries VDE and UL approvals.
Compact SPNO form factor measuring 5 x 19 x 8 mm. Ideal for use in electrical automation and signal conditioning applications. Enables efficient, reliable switching in industrial and commercial electronics.
For reliable and durable relay solutions, browse more in the Reed Relay category on EnvMart, featuring a wide range of industrial-grade relays for your automation and electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a switching voltage capacity of up to 200Vac.
The relay is rated for an electrical life of 5 million operations, ensuring long-lasting performance.
It features a compact SPNO form factor with dimensions of 5 x 19 x 8 mm.
The contact material used in this relay is rhodium, which enhances its durability and conductivity.
It complies with the EN 60062 standard and carries approvals from VDE and UL.
It is built to withstand vibration resistance between 10 and 2000Hz at an intensity of 20g, making it suitable for industrial applications.
This relay is ideal for use in electrical automation and signal conditioning applications.
It features a fully sealed construction, ensuring robust performance and preventing contamination.
Yes, it is designed for industrial, automation, and electrical applications requiring reliable switching.
This model belongs to the SIL05 series of reed relays.
The relay is manufactured in India.
It is a single-pole, normally open (SPNO) relay.
