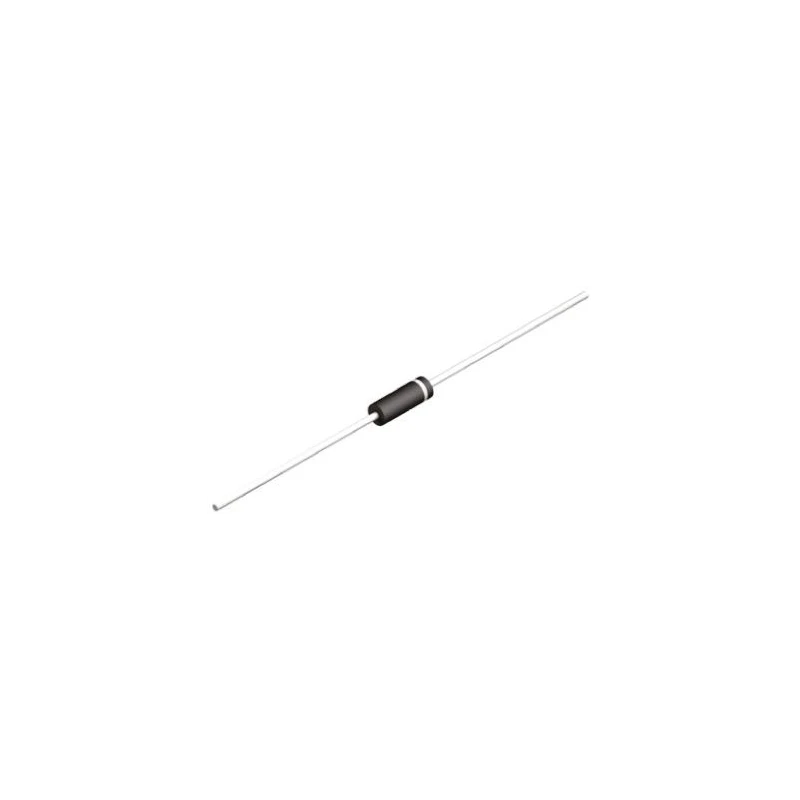

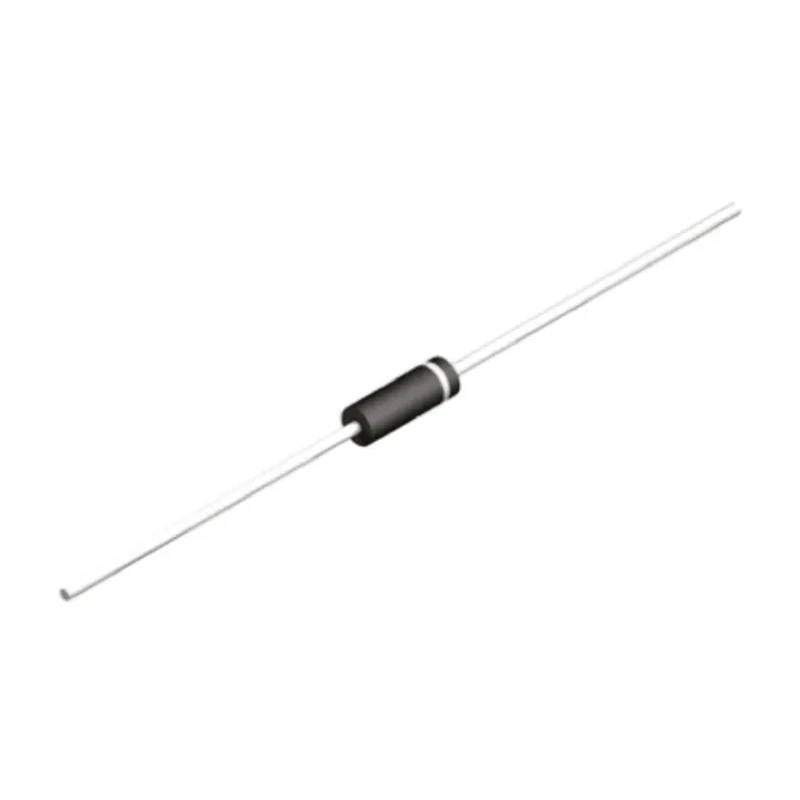

Littelfuse 1-Element Bi-Directional TVS Diode 600 W, 2-Pin DO-204 P6KE43CA

Littelfuse P6KE43CA is a 1-element bi-directional transient voltage suppressor (TVS) diode designed to protect sensitive electronic components from damaging voltage spikes and surges. This diode supports peak pulse power dissipation of 600 W and features a 2-pin axial through-hole DO-204 package, making it suitable for reliable insertion into circuit assemblies.

The TVS diode provides a minimum breakdown voltage of 40.9 V with a clamping voltage of 59.3 V, effectively safeguarding circuits against transient overvoltages. Its bi-directional configuration makes it compatible for protection on AC and DC lines. The device operates efficiently within a temperature range from -55°C up to 175°C, ensuring performance under harsh industrial and automotive environments.

With a maximum peak pulse current of 10.3 A, the P6KE43CA can handle substantial transient currents, providing robust clamping capability. Its very low maximum reverse leakage current of 1 μA minimizes power dissipation during normal operation, thereby improving energy efficiency.

This Littelfuse TVS Diode supports electrostatic discharge (ESD) protection, enhancing device longevity. Its package dimensions are 7.6 mm in length and 3.6 mm in diameter, ideal for through-hole mounting applications in semiconductor and electronic component assemblies.

Typical applications include electronic component protection, power & connector circuits, semiconductor devices, and industrial electronic systems where transient voltage spikes are a concern. The P6KE43CA is part of the reliable P6KE series, known for consistent transient voltage suppression.

Single diode configuration with bi-directional voltage suppression capability. Peak pulse power dissipation of 600 W ensures high energy transient protection. Minimum breakdown voltage of 40.9 V and clamping voltage of 59.3 V for effective voltage clamping.

Through hole mounting with a DO-204 axial package measuring 7.6 mm length and 3.6 mm diameter. Operating temperature range from -55°C to 175°C suitable for harsh environments. Maximum peak pulse current rating of 10.3 A guarantees robust transient current handling.

Extremely low maximum reverse leakage current of 1 μA for minimal power loss. ESD protection included for enhanced device reliability. Ideal for use in electronic power and connector circuits for surge suppression. For additional electronics and semiconductor components, browse our extensive categories at EnvMart.
