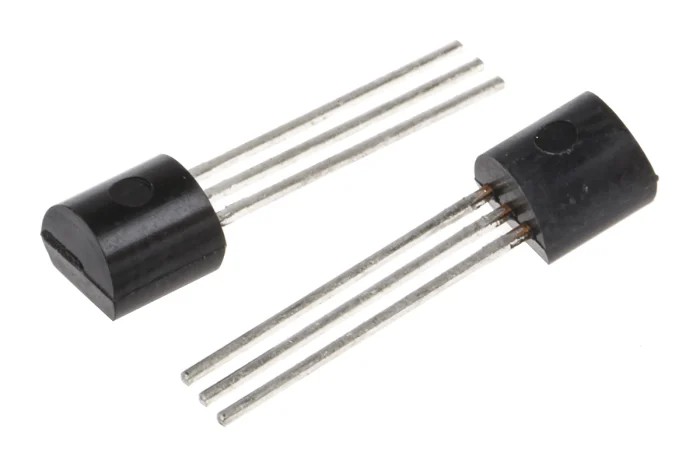

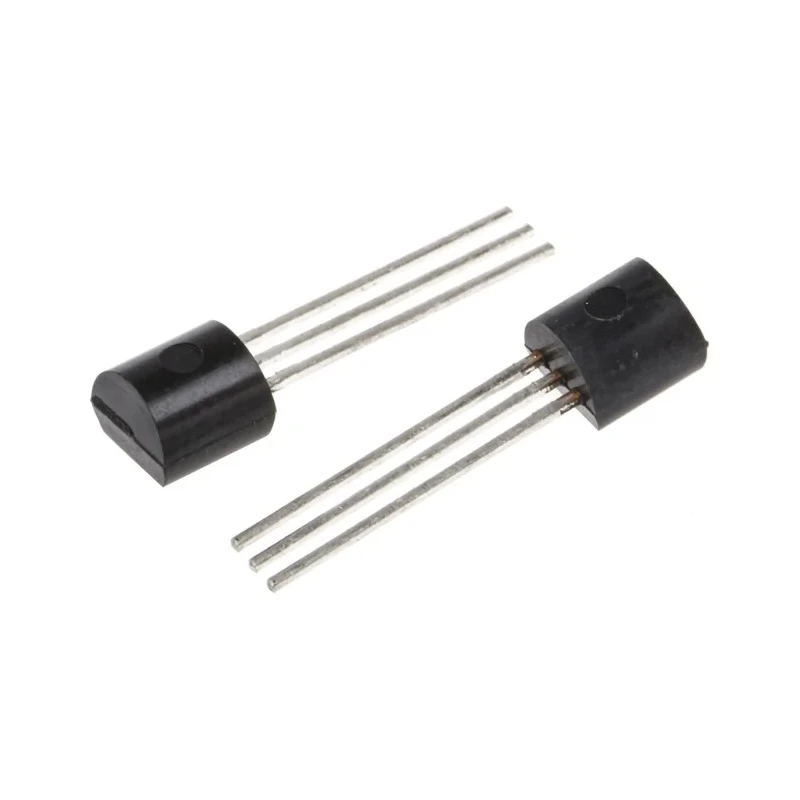

Texas Instruments Voltage Output Temperature Sensor, Analogue, Through Hole Mount, 3-Pin TO-92, ±4°C Accuracy LM61
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±4°C |
| Brand | Texas Instruments |
| Height | 5.2mm |
| Length | 5.2mm |
| Model | LM61 |
| Width | 4.19mm |
| Mount Type | Through Hole |
| Output type | Voltage |
| Series | LM61 |
| Maximum Operating Temperature | 100°C |
| Package Type | TO-92 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -30°C |
| Interface Type | Analogue |
| Pin Count | 3 |
| Maximum Supply Voltage | 10V |
| Minimum Supply Voltage | 2.7V |
| Sensor Gain | 10mV/°C |
Key Features
- Designed for precise temperature sensing from -30°C to 100°C operating range.
- Outputs voltage linearly proportional to temperature with 10mV per °C gain.
- Compact 5.2mm length and height, 4.19mm width TO-92 through hole package.
- Operates with supply voltage from 2.7V to 10V for flexible integration.
- Low self-heating ensures accurate temperature measurement.
- Suitable for applications including home appliances, battery management, and medical instruments.
- Reliable Texas Instruments quality with wafer-level trimming.
- Not automotive certified but ideal for industrial and general electronics use.
Product Description
Texas Instruments LM61 voltage output temperature sensor with a through hole TO-92 package offers a reliable analogue interface for temperature sensing applications. The sensor provides a voltage output linearly proportional to the measured temperature with a sensitivity of 10mV/°C and an accuracy tolerance of ±4°C. Its operating temperature range from -30°C to 100°C and supply voltage flexibility from 2.7V to 10V make it ideal for a wide range of electronics and industrial instrumentation scenarios.
The 3-pin TO-92 configuration allows easy mounting on printed circuit boards, making it suitable for integration in devices such as home appliances, portable medical equipment, battery management systems, printers, and fax machines. The sensor’s low self-heating characteristics enhance measurement precision, minimizing errors caused by internal temperature rise. Although it is not automotive rated and has no formal approvals, the LM61 series is widely utilized for various general-purpose temperature sensing tasks.
This sensor has compact dimensions of 5.2mm length and height, and 4.19mm width, lending itself to designs with limited space availability. Texas Instruments ensures high quality and reliability with wafer-level trimming that contributes to the sensor's low cost and performance consistency.
Designed for temperature sensing between -30°C to 100°C. Voltage output with linear slope of 10mV per degree Celsius. Compact TO-92 through hole package for ease of use in PCB assembly. Wide supply voltage range supports systems from 2.7V to 10V.
Low self-heating enables accurate temperature measurement. Applications include home appliances, battery management, medical instruments, and office equipment. No automotive standard or additional certifications, suitable for industrial and general electronics applications.
The LM61 series is an ideal analogue Temperature Sensor for industrial, laboratory, and commercial electronic instrumentation where reliable and straightforward temperature monitoring is required. Browse EnvMart’s Electronics Sensors category for related Texas Instruments temperature and humidity sensor ICs and other precision sensing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM61 temperature sensor operates within a range of -30°C to 100°C.
This model outputs a voltage that is linearly proportional to the temperature, with a gain of 10mV per °C.
The accuracy of this temperature sensor is ±4°C.
The sensor has compact dimensions of 5.2mm in length and height, and 4.19mm in width.
It operates with a supply voltage ranging from 2.7V to 10V.
This model features a through hole mount type, allowing for easy installation on printed circuit boards.
The LM61 is suitable for applications including home appliances, battery management, and medical instruments.
This sensor has a pin count of 3.
The sensor is packaged in a TO-92 form factor.
The LM61 features low self-heating, which enhances measurement precision by minimizing errors caused by internal temperature rise.
No, the LM61 is not automotive certified but is suitable for industrial and general electronics applications.
This model uses an analogue interface for its output.
