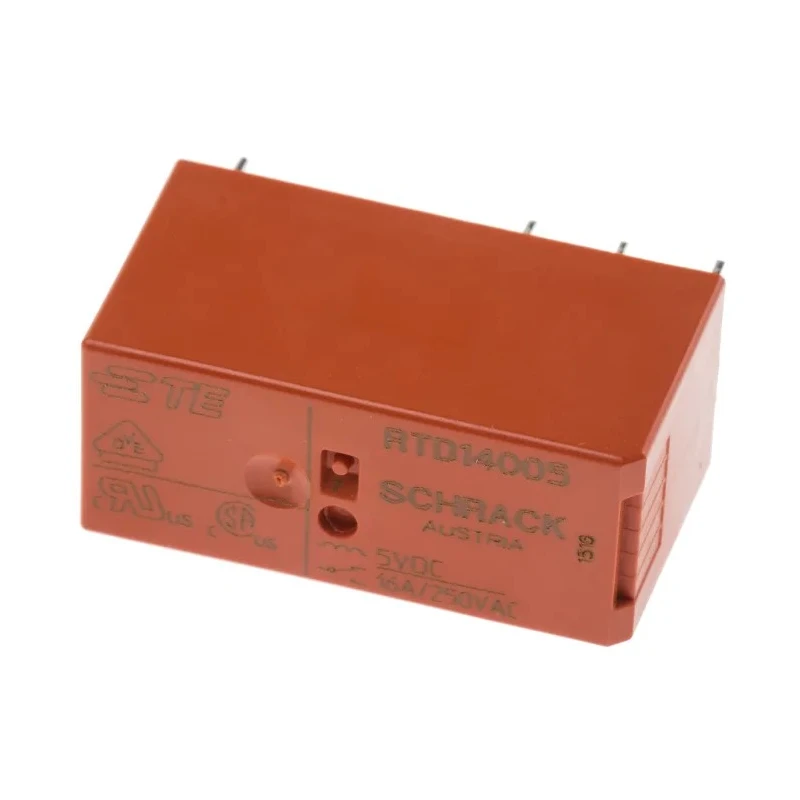

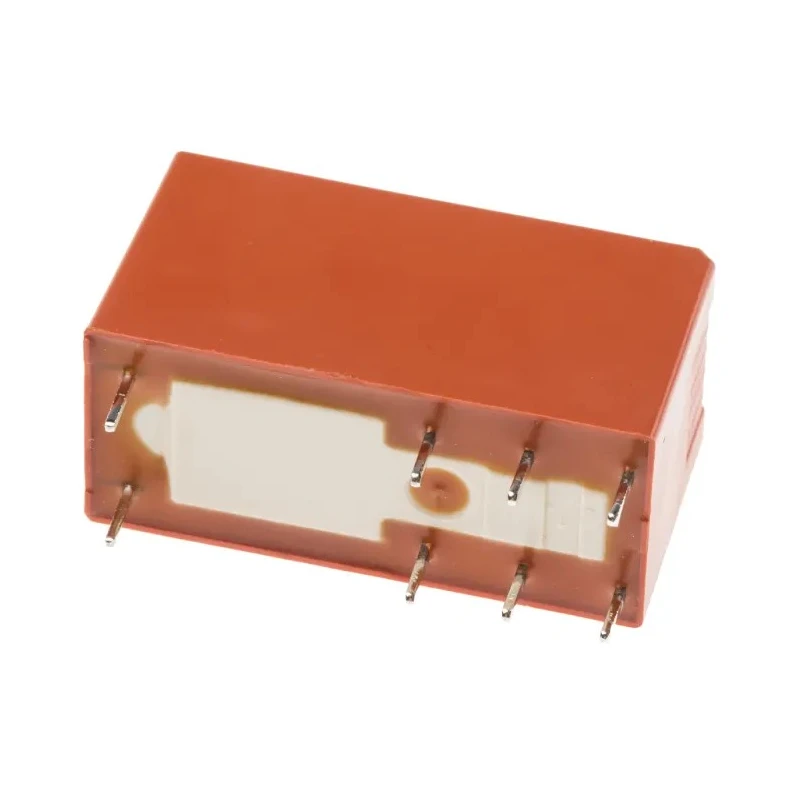

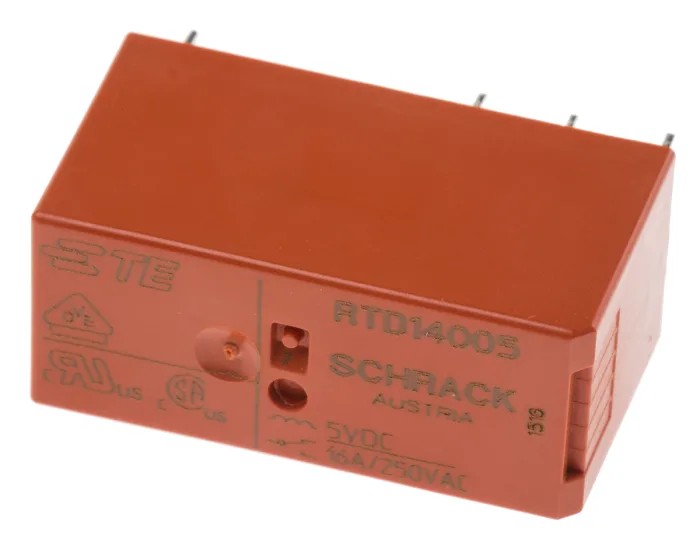

TE Connectivity Power Relay PCB Mount SPDT 5V DC Coil 16A Switching Current 400V AC RT1 Series 5-1393238-9
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 62Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Features a 5V DC coil voltage for efficient electromagnetic operation.
- SPDT contact configuration provides single pole double throw switching.
- Supports a switching current of up to 16 amps and switching AC voltage of 400V AC.
- Constructed with durable silver alloy contact material ensuring low contact resistance.
- Designed for PCB mounting with solder-type terminals for secure installation.
- Operates reliably in temperatures from -40°C to 85°C for wide environmental use.
- Coil resistance of 62 ohms with coil power consumption of 400 milliwatts.
- Meets RoHS standards, ensuring compliance with environmental regulations.
Product Description
TE Connectivity 5-1393238-9 Power Relay is a high-quality PCB mounted relay designed for industrial and automation applications requiring reliable switching of high currents. Featuring a 5V DC coil and SPDT contact configuration, this relay is capable of switching currents as high as 16A at voltages up to 400V AC, making it suitable for interfacing, automation, security lighting, and heating system controls.
Its silver alloy contacts provide excellent conductivity and durability, ensuring consistent performance over long service life. The relay has solder-type terminals compatible with PCB mounting for easy integration into electronic assemblies.
Compact in size with dimensions of 29mm length, 15.7mm height, and 12.7mm width, the TE Connectivity RT1 series relay is flux proof, enhancing its reliability in various environmental conditions. It operates effectively in wide temperature ranges from -40°C to 85°C and consumes a coil power of only 400mW, contributing to energy efficiency in control circuits.
Built to comply with RoHS standards, this relay supports sustainable manufacturing practices. Applications include automation systems, domestic appliances, heating systems, and security lighting where reliable switching is critical.
5V DC coil voltage for precise electromagnetic activation. SPDT single pole double throw configuration for versatile switching options. 16A switching current capacity for high power load control. 400V AC maximum switching voltage supports high voltage applications.
Durable silver alloy contacts with low resistance for optimal conductivity. PCB mount design with solder terminals for secure and reliable mounting. Wide operating temperature range from -40°C to 85°C for harsh environments.
Part of the RT1 series with flux proof pinning for enhanced protection. Low coil power dissipation of 400mW for efficient operation. Compliant with RoHS environmental directives.
This Power Relay is ideal for industrial, laboratory, commercial, HVAC, and manufacturing applications requiring robust and reliable electrical switching solutions. Explore more TE Connectivity relays on EnvMart for comprehensive electronic control components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 5V DC, which allows for efficient electromagnetic operation.
This relay can handle a maximum switching current of 16A, making it suitable for high power load control applications.
The relay supports a maximum switching AC voltage of 400V AC, allowing it to be used in high voltage applications.
It features a single pole double throw (SPDT) contact configuration, providing versatile switching options.
The dimensions of this relay are 29mm in length, 15.7mm in height, and 12.7mm in width.
The coil resistance of this relay is 62 ohms, which contributes to its operational efficiency.
This relay operates reliably in temperatures ranging from -40°C to 85°C, making it suitable for various environmental conditions.
It uses solder-type terminals for PCB mounting, ensuring secure installation in electronic assemblies.
Yes, this relay meets RoHS standards, ensuring compliance with environmental regulations.
The coil power consumption of this relay is 400 milliwatts, contributing to energy efficiency in control circuits.
The contacts of this relay are constructed from durable silver alloy, which ensures low contact resistance and optimal conductivity.
This power relay belongs to the RT1 series, which is designed for reliable switching in various applications.
