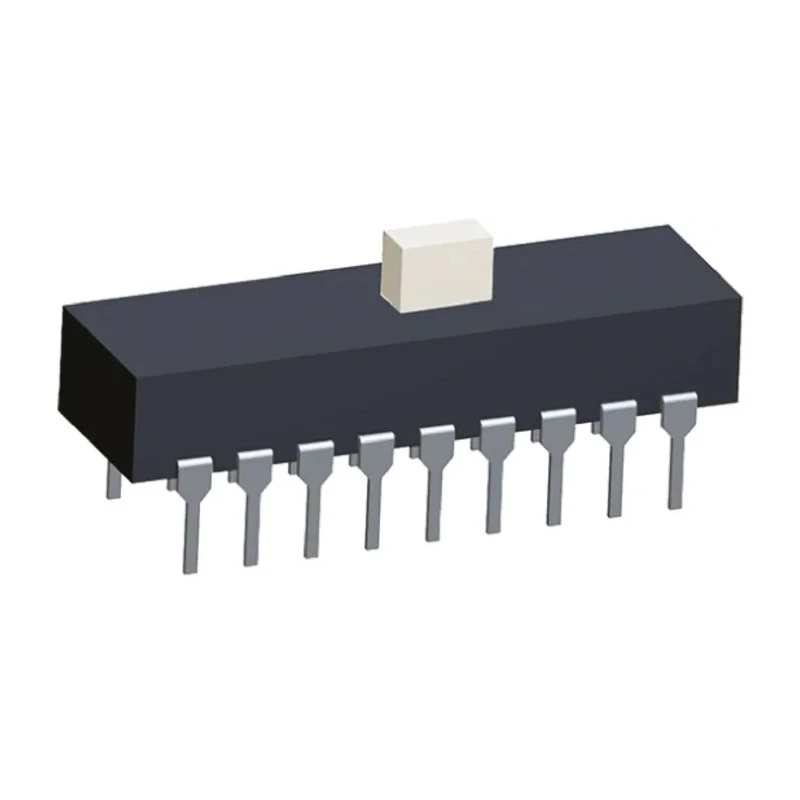

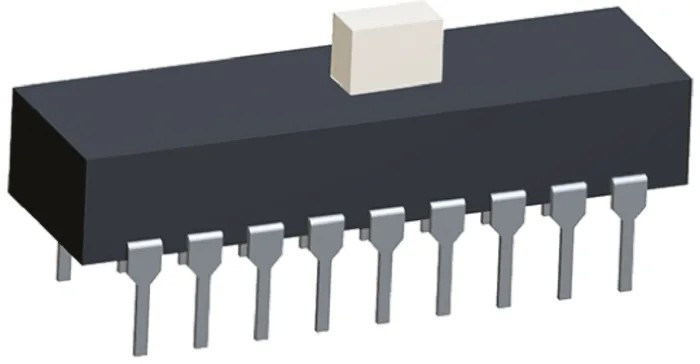

TE Connectivity PCB Slide Switch DPDT Latching 300mA Nylon ASE Series 3-1825010-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature Range | -40°C +80°C, making them particularly suited to harsh environments |
| Length | 25.4mm |
| Width | 7.37mm |
| Mount Type | PCB |
| Series | ASE |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | REACH, ELV, RoHS |
| Switch Operation | Latching |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 300mA |
| Mechanical Life | 15000Cycles |
| Contact AC Voltage | 115V ac |
| Electrical Life | 10000 operations |
| Actuator Material | Nylon |
Key Features
- Double Pole Double Throw (DPDT) configuration controls two circuits simultaneously.
- Latching switch operation ensures stable on-on position switching.
- Rated for 300mA contact current and 28V DC, 115V AC contact voltage.
- Durable nylon actuator material suitable for industrial applications.
- Operating temperature range from -40°C to 80°C for harsh environments.
- Mechanical life rated to 15,000 cycles and electrical life to 10,000 operations.
- Through-hole solder terminal type for professional assembly.
- Complies with REACH, ELV, and RoHS environmental standards.
Product Description
TE Connectivity model 3-1825010-7 is a professional-grade PCB Slide Switch featuring a Double Pole Double Throw (DPDT) latching mechanism mounted on PCB with precision nylon actuators for long-term reliability.
This ASE series switch carries a contact current rating of 300mA and is designed to operate safely at 28V DC and 115V AC contact voltages. The switch configuration is On-On latching, ideal for maintaining stable circuit states.
Constructed to withstand challenging conditions, it operates efficiently across temperatures ranging from -40°C to 80°C, making it suitable for industrial, telecommunications, laboratory, and test and measurement applications.
The physical dimensions are compact with a length of 25.4mm and a width of 7.37mm, utilizing a through-hole solder terminal for secure mounting. The ASE series employs bifurcated double wipe contacts, providing telecom-grade switching performance.
The switch's mechanical lifecycle is rated at 15,000 cycles with electrical endurance of 10,000 operations, ensuring durability. It complies with key international environmental directives including REACH, ELV, and RoHS, reflecting its sustainable design.
DPDT latching slide switch with nylon actuator for reliable operation. Contact current rating of 300mA suitable for moderate load circuits. On-On switching provides stable double throw functionality. Robust operation from -40°C to 80°C for harsh environment suitability.
Compact PCB mount design with precise dimensions and solder terminals. High mechanical and electrical life for extended use. Environmental compliance with REACH, ELV, and RoHS standards. Commonly used in telecommunications and instrumentation sectors.
Through-hole mounting supports professional PCB integration. Bifurcated double wipe contacts enhance switching reliability.
This TE Connectivity ASE series PCB Slide Switch model 3-1825010-7 provides an excellent balance of durability, precision, and reliability for electrical switching applications in industrial, laboratory, telecommunications, and commercial electronics fields. Browse more in EnvMart's Electronics & Electricals section for switches and related components to find complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a contact current rating of 300mA, making it suitable for moderate load circuits.
It is designed to operate safely at 28V DC and 115V AC contact voltages.
The operating temperature range is from -40°C to 80°C, allowing it to function in harsh environments.
The mechanical life of this switch is rated at 15,000 cycles, ensuring long-term reliability.
It features a Double Pole Double Throw (DPDT) configuration with an On-On latching switch operation.
This model has a length of 25.4mm and a width of 7.37mm, making it compact for PCB mounting.
It utilizes through-hole solder terminals for secure mounting on PCBs.
The actuator is made of durable nylon material, suitable for industrial applications.
The electrical life of this model is rated at 10,000 operations.
This switch complies with REACH, ELV, and RoHS environmental standards, reflecting its sustainable design.
It is commonly used in telecommunications, laboratory, and test and measurement applications.
This model belongs to the ASE series of PCB slide switches.
