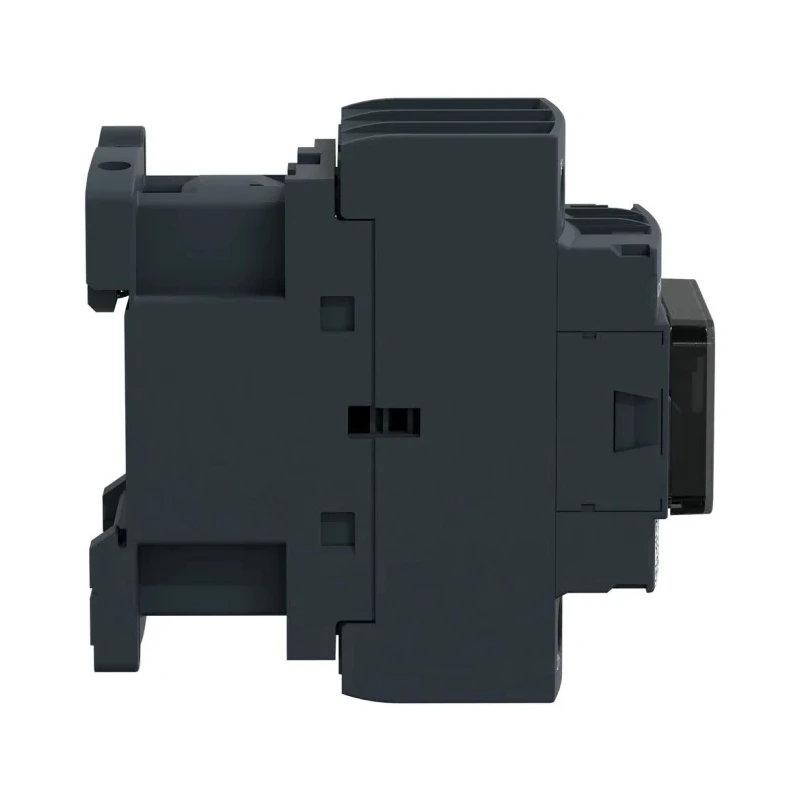

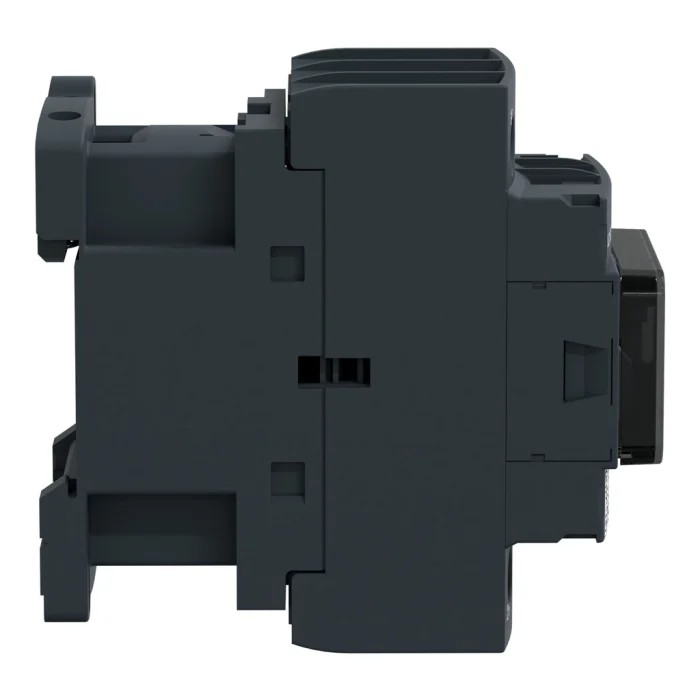

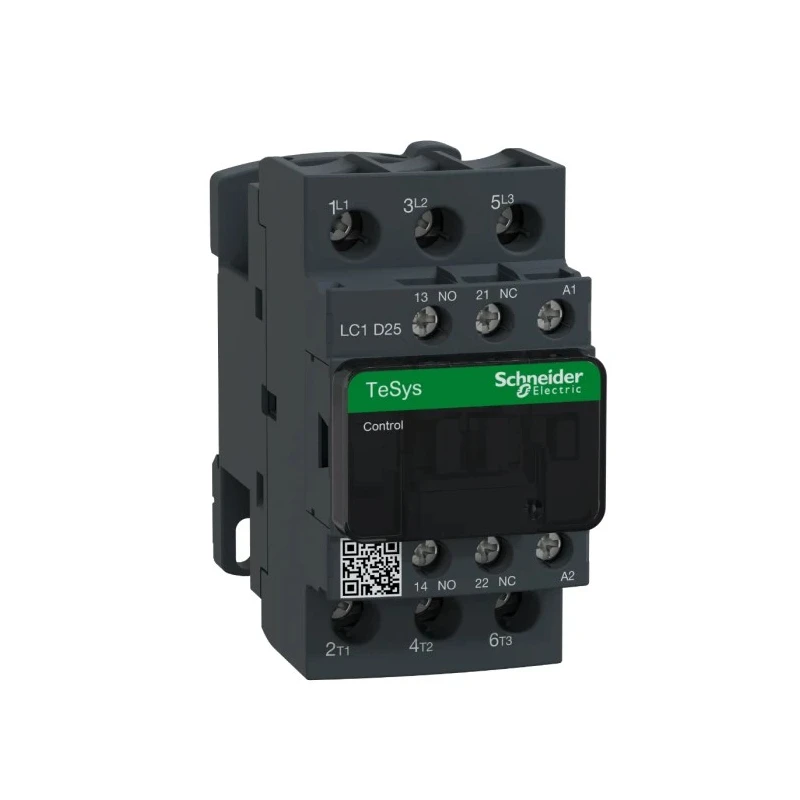

Schneider Electric TeSys D Contactor, 400V AC Coil, 3-Pole, 25 A, 3 HP 380V, 3 NO, 690V AC/DC LC1D25Q7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D25Q7 |
| Depth | 92mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 3HP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 400V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 380V |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- The contactor has a coil voltage of 400V AC for efficient control circuit operation.
- It features 3 poles with a normal state configuration of 3 normally open contacts.
- Built-in auxiliary contacts include 1 normally open and 1 normally closed for enhanced switching capabilities.
- The device supports a contact voltage of up to 690V AC/DC and contact current of 25A.
- Mounting is DIN Rail type with screw clamp terminals for secure electrical connections.
- It supports operational current Ie of 25A and control circuit voltage Uc of 380V.
- Designed for operating temperatures from -5°C to 60°C ensuring durability in varied environments.
- The compact form factor includes dimensions of 85mm length, 45mm width, and 92mm depth.
Product Description
Schneider Electric LC1D25Q7 TeSys D contactor is a high-quality industrial-grade component designed for motor control and resistive load applications. This 3-pole contactor features a 400V AC coil, allowing it to operate efficiently with a 380V control circuit. It is rated for a contact current of 25A and can handle power ratings up to 3 HP at 380V, suitable for a wide range of motors and industrial loads.
The contactor is built with 3 normally open contacts and includes 1 normally open plus 1 normally closed auxiliary contacts for versatile control functionality. The contactor uses screw clamp terminals to ensure secure and reliable electrical connections, and the mounting is designed for easy DIN rail installation or secure screw fixing.
Its compact dimensions (85mm length, 45mm width, 92mm depth) enable space-efficient panel design, and it is certified to multiple international standards, including UL, CSA, IEC, CCC, EAC, and Marine standards, which reflect high safety and performance quality. The Contactor supports ambient operating temperatures from as low as -5°C up to 60°C, making it suitable for a variety of industrial and commercial environments.
This product is a Green Premium offering from Schneider Electric, meeting RoHS and REACh standards, emphasizing sustainability in manufacturing and end-of-life recycling. It is ideal for use in electrical control systems, automation equipment, HVAC systems, compressors, pumps, conveyors, and other motor-driven applications in industrial, manufacturing, and commercial settings.
Coil voltage: 400V AC for reliable operation in control circuits. 3 poles with 3 normally open contacts ensure stable power switching. Auxiliary contacts (1 NO/1 NC) provide additional control options. Supports contact voltage of 690V AC/DC and current of 25A.
Compact size with DIN rail mounting for flexible installation. Constructed with screw clamp terminals for secure wiring connections. Rated for continuous operation up to 60°C ambient temperature. Certified to UL, CSA, IEC, CCC, EAC, and Marine standards for global compliance.
Green Premium product meeting environmental compliance standards. Explore our comprehensive range of Schneider Electric automation and control components at EnvMart for enhanced electrical system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor is 400V AC, allowing it to operate efficiently in control circuits.
This model supports a maximum contact voltage of 690V AC/DC.
It is rated for a contact current of 25A, suitable for various applications.
The contactor features 3 poles with a normal state configuration of 3 normally open contacts.
This contactor can operate in ambient temperatures ranging from -5°C to 60°C.
It is designed for DIN rail mounting, allowing for flexible installation options.
The dimensions of this unit are 85mm in length, 45mm in width, and 92mm in depth.
It includes 1 normally open and 1 normally closed auxiliary contact for enhanced control functionality.
This model is suitable for motor control and resistive load applications in industrial settings.
It uses screw clamp terminals, which ensure secure and reliable electrical connections.
It is certified to multiple international standards, including UL and CSA, ensuring compliance with safety regulations.
The power rating of this unit is 3 HP at 380V, making it suitable for a variety of motors.
