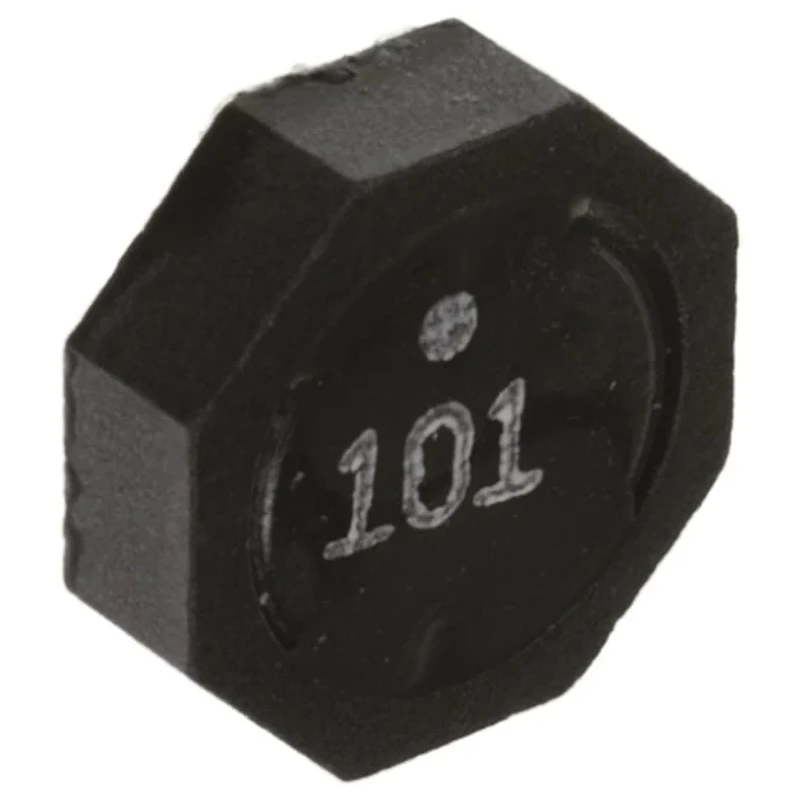

Wurth Elektronik WE-TPC 1038 Shielded Wirewound Surface Mount Inductor 330 μH ±30 % 600 mA Idc 744066331
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 7.4mm |
| Brand | Wurth Elektronik |
| Operating Temperature | - 40 to +125°C |
| Height | 3.8mm |
| Length | 10mm |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | WE-TPC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 330μH |
| Package/Case | 1038 |
| Maximum DC Current | 600mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1000mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 6MHz |
| Inductor Construction | Wirewound |
| Standards/Approvals IEC 60286-3 | 2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, RoHS |
Key Features
- Features a ferrite core for enhanced magnetic properties.
- Compact 1038 package size with dimensions 10mm length and 7.4mm diameter.
- Inductance tolerance is ±30% providing operational flexibility.
- Maximum DC resistance is 1000 mΩ ensuring efficient current flow.
- Operating temperature range from -40°C to +125°C suits harsh environments.
- Magnetically shielded design reduces leakage fields for sensitive applications.
- Surface mount termination style enables easy PCB integration.
- Rated maximum self-resonant frequency is 6 MHz supporting high-frequency circuits.
Product Description
Wurth Elektronik model 744066331 is a wirewound surface mount inductor with a ferrite core, offering an inductance of 330 μH ±30 % and a maximum DC current rating of 600 mA. Housed in a compact 1038 package, this component measures 10 mm in length, 7.4 mm in diameter, and 3.8 mm height.
The magnetically shielded design minimizes electromagnetic interference, making it ideal for sensitive power management circuits, including portable power devices such as PDAs, digital cameras, PCMCIA cards, and embedded PCs. It also supports DC/DC converters and mobile data gathering applications.
Constructed with a wirewound architecture on a ferrite core, the inductor provides reliable performance with a maximum DC resistance of 1000 mΩ and self-resonant frequency up to 6 MHz. Its termination style is surface mount, facilitating automated PCB assembly.
Operating temperature is rated from -40°C up to 125°C, suitable for automotive and industrial environments. The product complies with international standards including IEC 60286-3:2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, and RoHS, ensuring environmental and quality compliance.
Packaging is tape and reel, convenient for automated pick-and-place processes during manufacturing. Features a ferrite core for enhanced magnetic properties. Compact 1038 package size with dimensions 10mm length and 7.4mm diameter.
Inductance tolerance of ±30% providing operational flexibility. Maximum DC resistance of 1000 mΩ ensuring efficient current flow. Operating temperature range from -40°C to +125°C suitable for harsh environments. Magnetically shielded design reduces leakage fields in sensitive applications.
Surface mount termination style enables easy PCB integration. Rated maximum self-resonant frequency is 6 MHz supporting high-frequency circuits. Compliance with IEC 60286-3, IPC/JEDEC J-STD-020E, REACH, and RoHS standards guarantees quality and safety.
This inductor is well-suited for industrial electronics manufacturing, automotive electronics, communications, and data acquisition systems requiring compact, high-performance magnetic components.
Explore more reliable Surface Mount Inductors in the Wurth Elektronik series and related categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 330 μH with a tolerance of ±30%.
It has a maximum DC current rating of 600 mA.
This inductor measures 10 mm in length, 7.4 mm in diameter, and 3.8 mm in height.
The operating temperature range is from -40°C to +125°C, suitable for harsh environments.
The rated maximum self-resonant frequency is 6 MHz, supporting high-frequency circuits.
It features a ferrite core, which enhances its magnetic properties.
The termination style is surface mount, facilitating easy integration onto PCBs.
The maximum DC resistance is 1000 mΩ, ensuring efficient current flow.
It complies with IEC 60286-3:2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, and RoHS.
The inductor is packaged in tape and reel, which is convenient for automated pick-and-place processes during manufacturing.
It is suitable for sensitive power management circuits, including portable power devices, DC/DC converters, and mobile data gathering applications.
The inductor is constructed using a wirewound architecture on a ferrite core.
