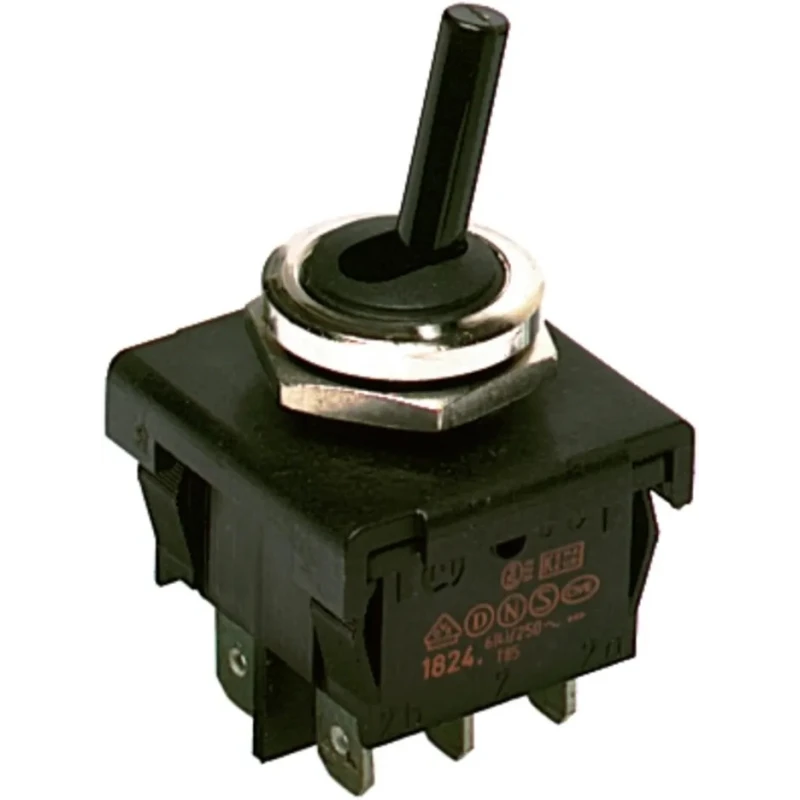

Marquardt Toggle Switch Panel Mount On-Off DPDT Tab Terminal 12V dc 250V ac 1824.1101

Marquardt 1824.1101 Toggle Switch is a high-quality panel mount on-off DPDT switch designed for electrical circuits requiring reliable double pole double throw switching functionality. Operating at 12V dc and compatible with 250V ac, it is suitable for a broad range of industrial, laboratory, electrical automation, and control applications.

This toggle switch features a robust polyamide actuator offering durability under mechanical stress and environmental exposure. The tab terminal type terminals facilitate secure and easy wiring connections in panel installations. Its compact dimensions (44.4mm height, 25.6mm width, and 23.9mm length) allow it to fit neatly into electrical panels with efficient space usage.

With a switch contact current rating of 6A, it is ideal for moderate power loads. The device operates effectively in temperature ranges from -20°C to 55°C, fulfilling requirements for various working environments. The IP40 rating protects the switch from ingress of solid objects exceeding 1mm, ensuring operational reliability.

Compliant with international standards such as VDE, UL, RoHS, ENEC, EN, and CSA, this Marquardt toggle switch guarantees adherence to strict quality and safety norms. Designed for longevity, it boasts a mechanical life of 50,000 cycles, reducing maintenance and replacement needs.

Double pole double throw (DPDT) contact configuration. Panel mount design with tab terminal connections. Rated switch contact current of 6A. Polyamide actuator for enhanced durability. Operating temperature range from -20°C to 55°C.

Compliant with VDE, UL, RoHS, ENEC, EN, CSA standards. Mechanical life expectancy of 50,000 cycles. Compact size for space-saving installations (44.4mm x 25.6mm x 23.9mm). IP40 ingress protection rating. Non-illuminated actuator suitable for standard switching applications.

This Toggle Switch is ideal for use in electrical automation, industrial machinery, HVAC controls, and general electrical circuit applications where reliable on-off switching and double pole throw functionality is required. Its panel mount form factor and tab terminals make it well-suited for assembly in various equipment and control panels.
