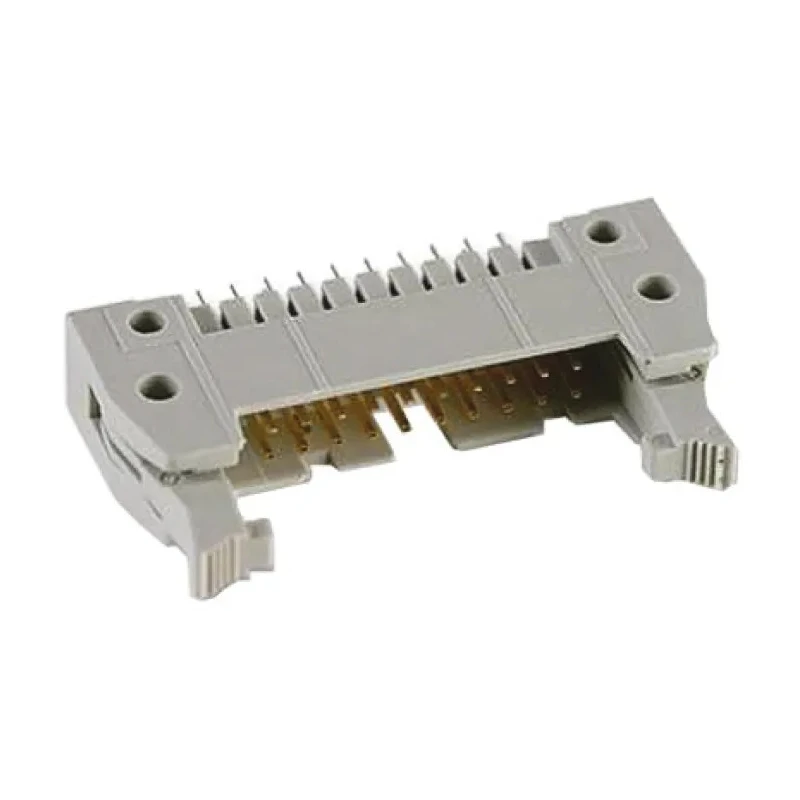

HARTING SEK 18 Series Straight Through Hole PCB Header, 26 Contacts, 2.54 mm Pitch, 2 Rows, Shrouded 09185267904
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-7142Brand: HARTINGManufacturers Part No.: 09185267904 |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with a polybutylene terephthalate housing for durability.
- Contacts are made from copper alloy with gold plating to ensure optimal conductivity.
- Designed for through-hole mounting with straight orientation and shrouded for protection.
- Supports a maximum voltage of 500V and current rating of 1A.
- Operates reliably between -55°C and 125°C operating temperature range.
- Features solder termination and male contact gender.
- Compatible with locking levers available separately for secure connections.
- Ideal for electronic components, power connectors, and PCB integration in industrial environments.
Product Description
HARTING 09185267904 is a high-quality PCB Header from the SEK 18 Series, engineered for wire-to-board applications requiring a robust and reliable connection. Featuring 26 gold-plated copper alloy contacts spaced at a 2.54 mm pitch across 2 rows, this shrouded header ensures excellent electrical performance and mechanical protection.
The header utilizes a durable polybutylene terephthalate housing that withstands harsh industrial conditions, supporting an operating temperature range from -55°C to 125°C. Its through-hole mount type and straight orientation facilitate straightforward assembly on printed circuit boards.
Rated for a maximum voltage of 500V and current up to 1A, the HARTING SEK 18 header is suitable for various electronic and power connector needs within industrial, manufacturing, and electronic assembly sectors. The solder termination and male contact design enable fast and reliable soldering processes.
Additional security is achievable with optional locking levers (stock numbers 693-5163 or 693-5176), enhancing connection stability in demanding environments. This product complies with industry standards, ensuring trustworthy performance without approvals stated.
Durable polybutylene terephthalate housing for industrial applications. Gold-plated copper alloy contacts for superior connectivity. Shrouded design provides enhanced protection and alignment. Operating temperature from -55°C up to 125°C for versatile use.
Through-hole mounting with straight pin orientation. Compatible with optional locking levers for secure connections. Rated for 500V voltage and 1A current applications. Ideal for electronics manufacturing and power connector integration.
Explore more connectors and electronic components from HARTING and other reputed brands at EnvMart for reliable and high-performance solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HARTING SEK 18 Series PCB header is rated for a maximum voltage of 500V and a current rating of 1A.
This model features a pitch of 2.54 mm and includes 26 contacts arranged in 2 rows.
The housing is made from polybutylene terephthalate, while the contacts are constructed from copper alloy with gold plating for optimal conductivity.
It operates reliably within a temperature range of -55°C to 125°C.
This header features a solder termination type, allowing for secure connections during assembly.
It supports through-hole mounting with a straight orientation, making it suitable for easy assembly on printed circuit boards.
Yes, it is compatible with optional locking levers, which can enhance connection stability in demanding environments.
The contact gender for this model is male.
This header is designed for wire-to-board applications.
The shrouded design provides enhanced protection and alignment for the contacts, ensuring reliable connections.
It is ideal for electronic components, power connectors, and PCB integration in industrial environments.
The HARTING SEK 18 Series PCB header is manufactured in India.
