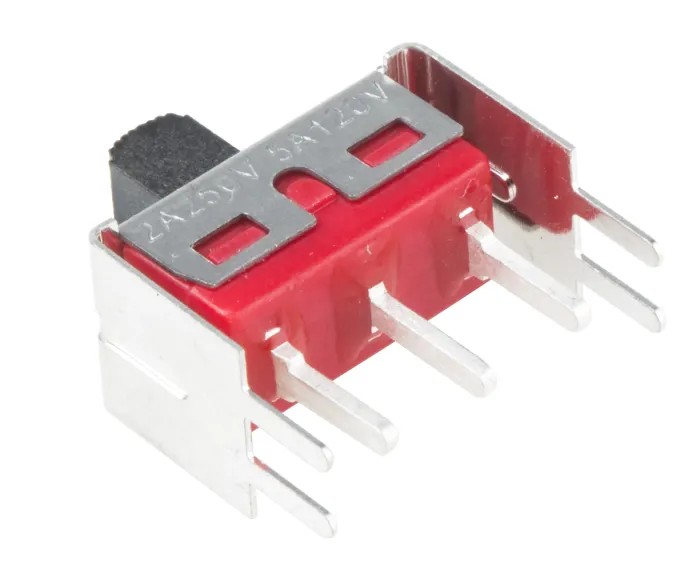

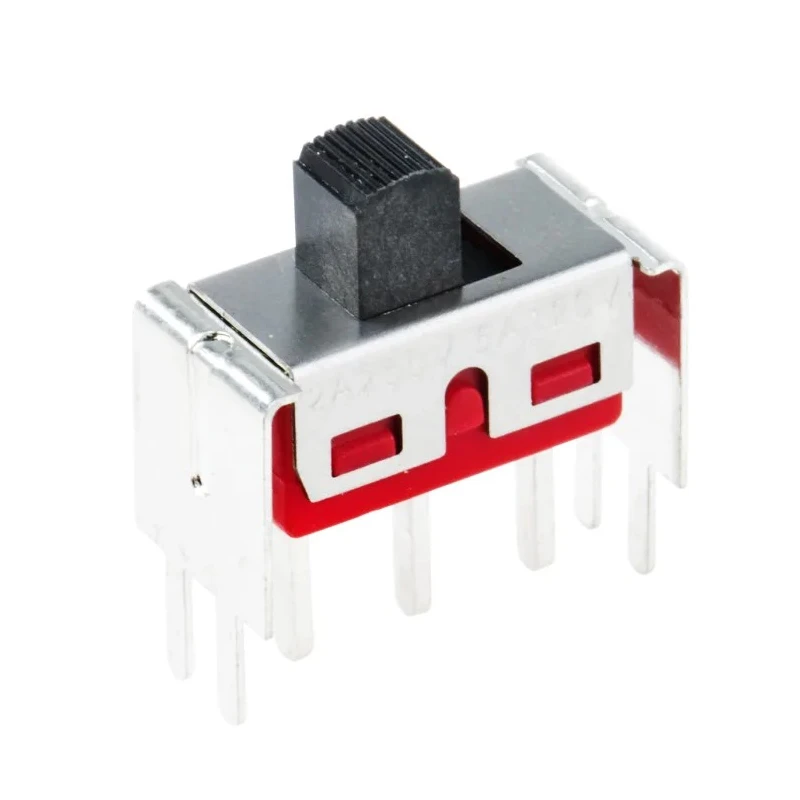

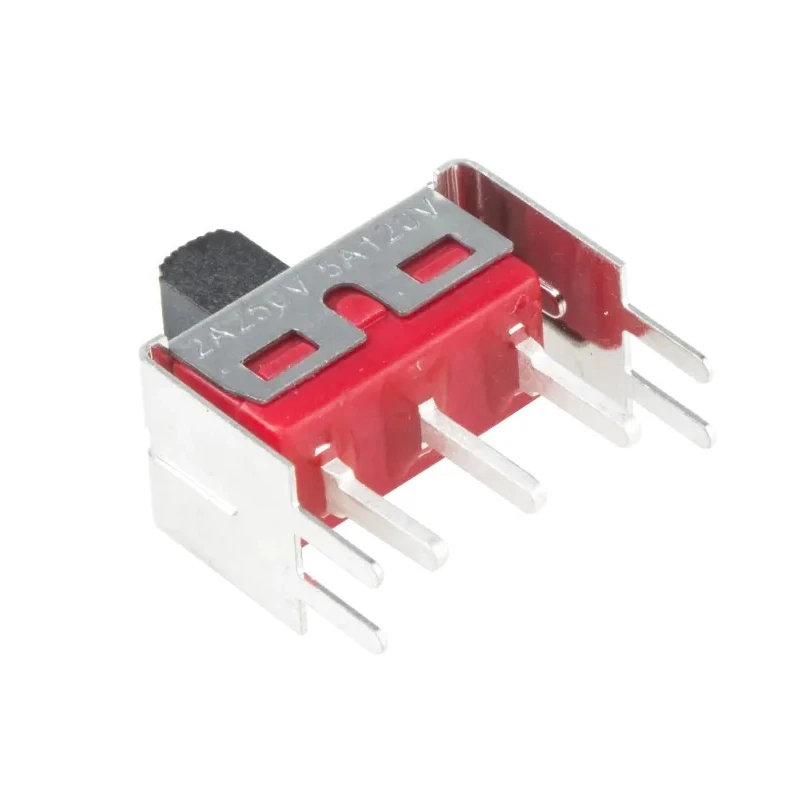

RS PRO PCB Slide Switch SPDT Latching 5A Nylon Actuator 250V AC 28V DC 734-7303
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Length | 15.75mm |
| Model | 734-7303 |
| Depth | 9.3mm |
| Width | 8mm |
| Mount Type | PCB |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-None-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 734-7303Brand: RS PRO |
| Switch Operation | Latching |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 30000Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Nylon |
| RS PRO PCB Slide Switch SPDT Latching 5A NylonRS Stock No. | 734-7303Brand: RS PRO |
Key Features
- Single Pole Double Throw (SPDT) contact configuration for versatile switching.
- Latching switch operation ensuring stable ON and OFF positions.
- Supports a switch contact current of 5 amperes under 250V AC and 28V DC ratings.
- Constructed with a nylon actuator and stainless steel housing for durability.
- Compact dimensions measuring 15.75mm length, 9.3mm depth, and 8mm width.
- Designed for a mechanical life of up to 30,000 cycles.
- Not illuminated, suitable for various industrial and electronic control equipment.
- Operates safely within temperature ranges from -30°C to 85°C.
Product Description
RS PRO 734-7303 PCB Slide Switch is a miniature latching switch featuring SPDT contact configuration and a durable nylon actuator, designed for reliable operation in electronics and industrial control applications.
This switch supports a maximum contact current of 5A and voltage ratings of 250V AC and 28V DC, making it suitable for a wide range of uses, including instrumentation, telecom equipment, medical devices, IT hardware, and white goods.
The switch is tailored for PCB mounting with solder terminals and is compatible with wave soldering processes at 260ºC for 5 seconds, ensuring efficient manufacturing integration. Its compact size with a length of 15.75mm, depth of 9.3mm, and width of 8mm supports installation in confined spaces.
The actuator is constructed from black nylon with a DAP case and stainless steel housing, providing resilience in demanding environments. It boasts a mechanical life span of 30,000 cycles and is compliant with RoHS standards, ensuring chemical and environmental safety.
Single Pole Double Throw (SPDT) contact configuration. Latching switch operation for stable contact positions. Switch contact current rating of 5A suitable for many electrical controls. Nylon actuator and stainless steel housing for durability.
Compact body dimensions enabling versatile mounting. Mechanical life of 30,000 cycles for extended reliability. RoHS compliant for environmental compliance. Operating temperature range from -30°C to 85°C supports varied applications.
This switch is ideal for industrial, manufacturing, telecommunications, and electronic circuit board control use cases. RS PRO products are known for quality and reliability in industrial automation and electrical applications.
Explore the wide range of RS PRO switches at EnvMart for your precise technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch supports a maximum contact current of 5A.
It is rated for 250V AC and 28V DC.
This model features a Single Pole Double Throw (SPDT) contact configuration.
The dimensions are 15.75mm in length, 9.3mm in depth, and 8mm in width.
It has a mechanical life of up to 30,000 cycles.
It operates safely within a temperature range from -30°C to 85°C.
The actuator is constructed from nylon with a stainless steel housing.
Yes, it is designed for PCB mounting with solder terminals.
It uses a latching switch operation, ensuring stable ON and OFF positions.
This model is compliant with RoHS standards.
It is suitable for various applications including instrumentation, telecom equipment, medical devices, IT hardware, and white goods.
The terminal type is solder, making it compatible with wave soldering processes.
