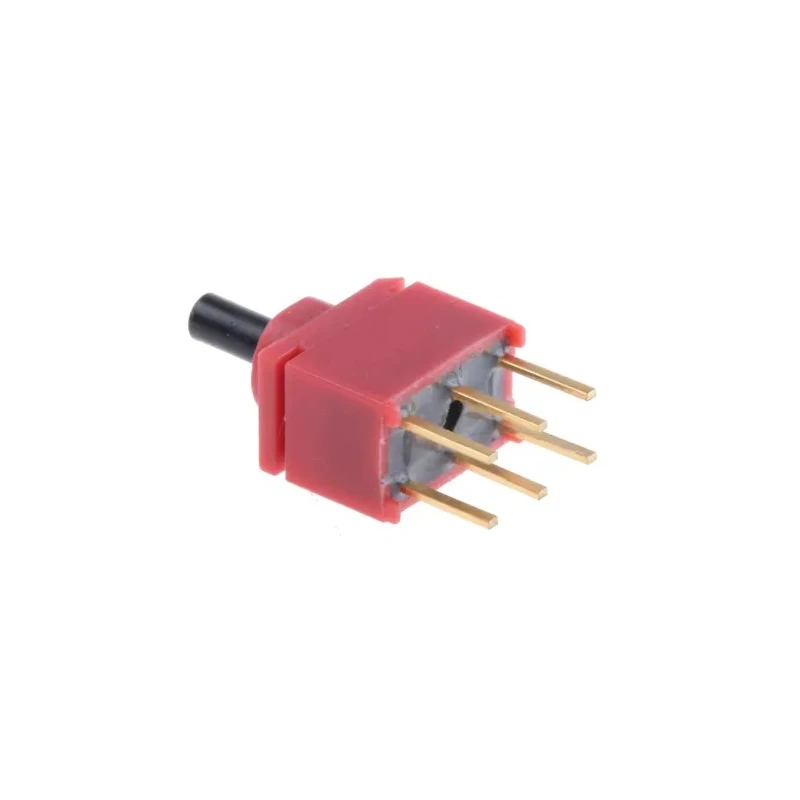

RS PRO Toggle Switch PCB Mount On-Off-On DPDT Through Hole Terminal 24 V dc 240 V ac 734-7242P

RS PRO 734-7242P Toggle Switch PCB Mount On-Off-On DPDT is a highly reliable IP67 sealed ultra-miniature toggle switch designed for industrial and electrical applications requiring compact size with robust performance. It supports a double pole double throw (DPDT) configuration and On-Off-On switch operation, capable of handling 400mA contact current. The switch is engineered for through-hole PCB mounting with terminals that ensure secure and stable integration in electronic assemblies.

Operating at 24 V dc and 240 V ac, this toggle switch accommodates a panel cutout size of 7 x 4.5 mm. Its fibreglass reinforced nylon actuator material delivers excellent mechanical strength and durability while maintaining a compact actuator length of 7 mm for ergonomic user control.

The switch’s IP67 rating guarantees complete protection against dust ingress and temporary water immersion, making it suitable for demanding industrial, manufacturing, electrical automation, and control system environments. It operates reliably across a broad temperature range from -30°C to 85°C and delivers a mechanical life expectancy of 40,000 cycles, ensuring extended service and minimal maintenance.

This toggle switch complies with internationally recognized standards including CE, CSA, RoHS, and UL, providing assurance for quality and safety in electrical design applications. It is specifically suited for applications involving electrical circuit control, industrial automation, electronic equipment, and embedded system interfaces where robust switching functionality and reliability under harsh conditions are required.

This Toggle Switch supports double pole double throw (DPDT) contact configuration. It features an On-Off-On switch operation type with a 400mA contact current rating. The switch is designed for PCB mounting with through-hole terminals for secure installation.

It operates at 24 V dc and 240 V ac with a panel cutout size of 7 x 4.5 mm. Constructed using fibreglass reinforced nylon actuator material for durability. IP67 rating ensures the switch is dust tight and protected against water immersion.

Mechanical life is rated for 40,000 cycles guaranteeing long-term reliability. The operating temperature range is from -30°C to 85°C, suitable for varied environments. The actuator length is 7 mm, facilitating easy and precise operation.

Standards certifications include CE, CSA, RoHS and UL compliance. Explore the extensive range of RS PRO switches and electrical components available at EnvMart for industrial automation, manufacturing, laboratory, and electrical system needs.
