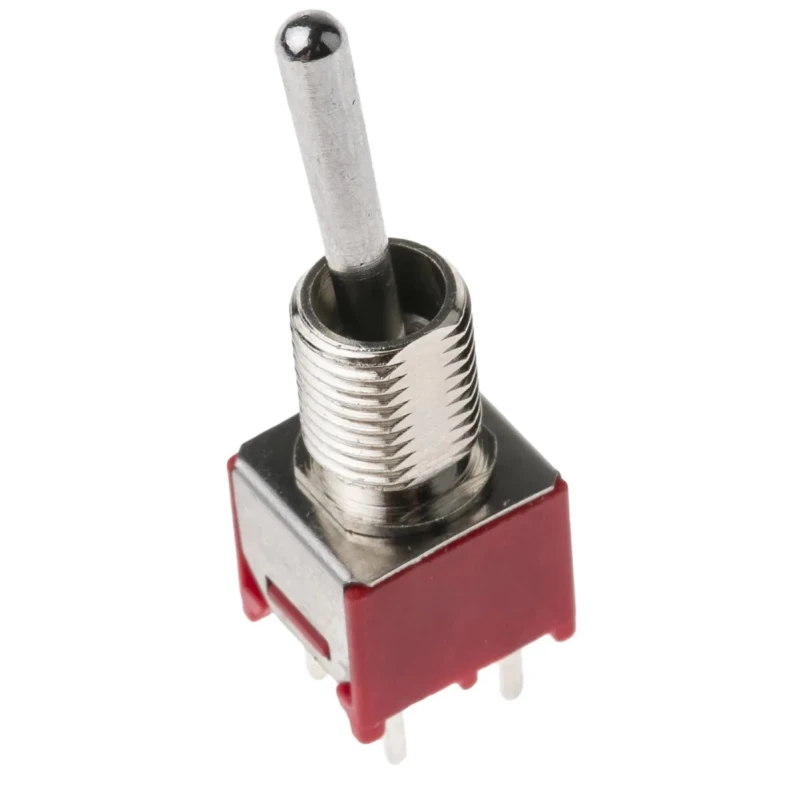

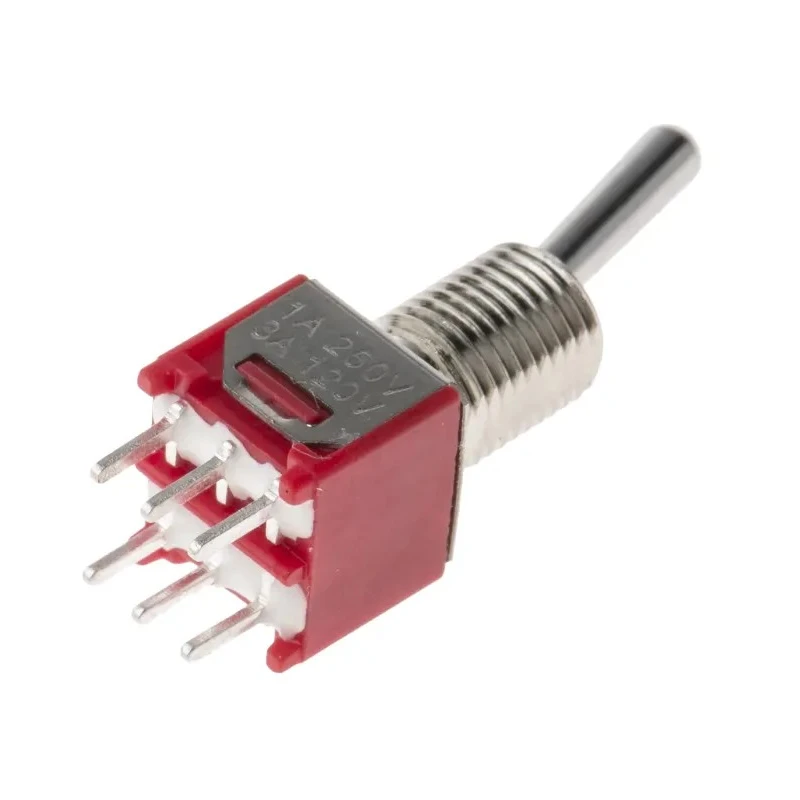

RS PRO Toggle Switch PCB Mount On-On DPDT Through Hole Terminal 15 V dc 240 V ac 734-7191
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 734-7191 |
| IP Rating | IP56, IP66 |
| Mount Type | PCB |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | CE, CSA, RoHS, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 734-7191Brand: RS PRO |
| Switch Operation | On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 15V dc |
| Switch Contact Current | 3A |
| Mechanical Life | 30000Cycles |
| Contact AC Voltage | 240V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- Constructed for PCB mounting with through-hole terminal type for secure installation.
- Switch contact current rating of 3A suitable for moderate electrical loads.
- Actuator crafted from chrome plated brass with a length of 10.41 mm for reliable switching action.
- Designed to operate reliably in temperatures ranging from -30°C to 85°C.
- Offers IP56 and IP66 ratings for protection against dust and strong water jets.
- Mechanical switch life rated at 30,000 cycles for long-lasting performance.
- Complies with CE, CSA, RoHS, and UL standards ensuring quality and safety.
- Panel cutout size requirement is 6.35 mm to fit standard installations.
Product Description
RS PRO 734-7191 is a high-quality sub-miniature toggle switch optimized for PCB mounting in industrial and automation applications. It features a Double Pole Double Throw (DPDT) contact configuration with an On-On switch operation mode, making it suitable for controlling circuits with two positions. Rated for a contact current of 3A, it supports electrical loads up to 15 V dc and 240 V ac, covering a variety of low-voltage control applications.
The switch actuator is made from chrome plated brass, providing durability and a refined mechanical feel with an actuator length of 10.41 mm. Its compact design requires a panel cutout of 6.35 mm, ensuring it integrates seamlessly into equipment panels.
RS PRO 734-7191 is designed to operate reliably across a wide temperature range from -30°C to 85°C, backed by mechanical life durability of 30,000 cycles. It complies with CE, CSA, RoHS, and UL standards, guaranteeing product compliance with international safety and environment regulations.
This toggle switch offers robust ingress protection ratings of IP56 and IP66, providing resistance against dust ingress and powerful water jets, making it suitable for industrial and outdoor environments.
Compact sub-miniature design for efficient PCB mounting and integration. Through hole terminal mounting ensures stable electrical connections. Low contact resistance with high dielectric strength for operational reliability.
Suitable for use in electrical, industrial automation, and control panel applications. Non-illuminated design for standard switching indication without light. Comprehensive compliance to international electrical and environmental standards.
Robust mechanical life ensures long service with frequent switching operations. IP56 and IP66 IP ratings suitable for harsh industrial environments. Chrome plated brass actuator for enhanced durability and tactile response.
This Toggle Switch is an ideal choice for electronics manufacturers, equipment assemblers, and designers seeking a reliable and compact switch solution to implement double-pole double-throw switching functionality in PCB-mounted circuits. Explore more industrial switches and electrical components in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Double Throw (DPDT) contact configuration, allowing for control of circuits with two positions.
It is rated for a contact DC voltage of 15V and a contact AC voltage of 240V.
The maximum operating temperature is 85°C, making it suitable for a variety of environments.
The mechanical life of this switch is rated for 30,000 cycles, ensuring long-lasting performance.
The panel cutout size requirement for this unit is 6.35 mm, allowing for standard installations.
This toggle switch has IP56 and IP66 ratings, providing protection against dust and powerful water jets.
The actuator is made from chrome plated brass and has a length of 10.41 mm, providing a reliable switching action.
The switch operates in an On-On configuration, allowing for two distinct positions.
It complies with CE, CSA, RoHS, and UL standards, ensuring quality and safety in its design.
This model is designed for PCB mounting with a through-hole terminal type for secure installation.
The switch has a contact current rating of 3A, suitable for moderate electrical loads.
The minimum operating temperature is -30°C, allowing it to function in colder environments.
