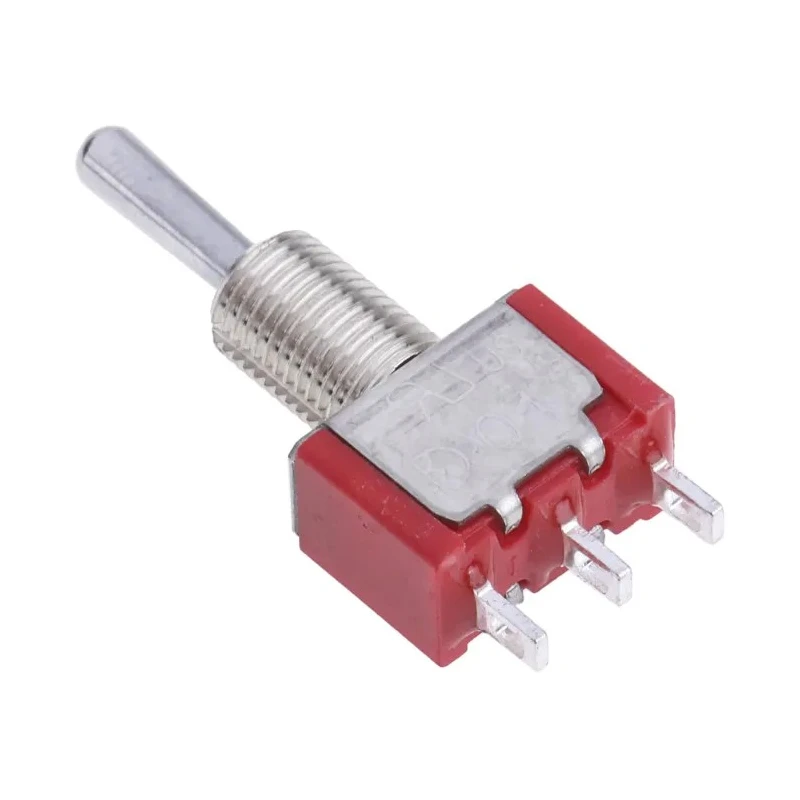

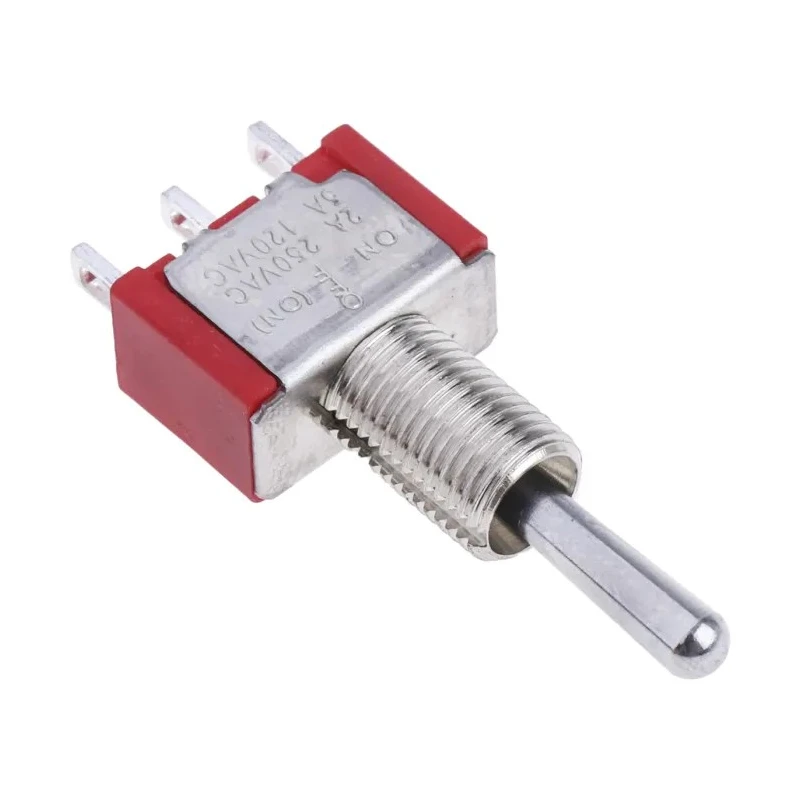

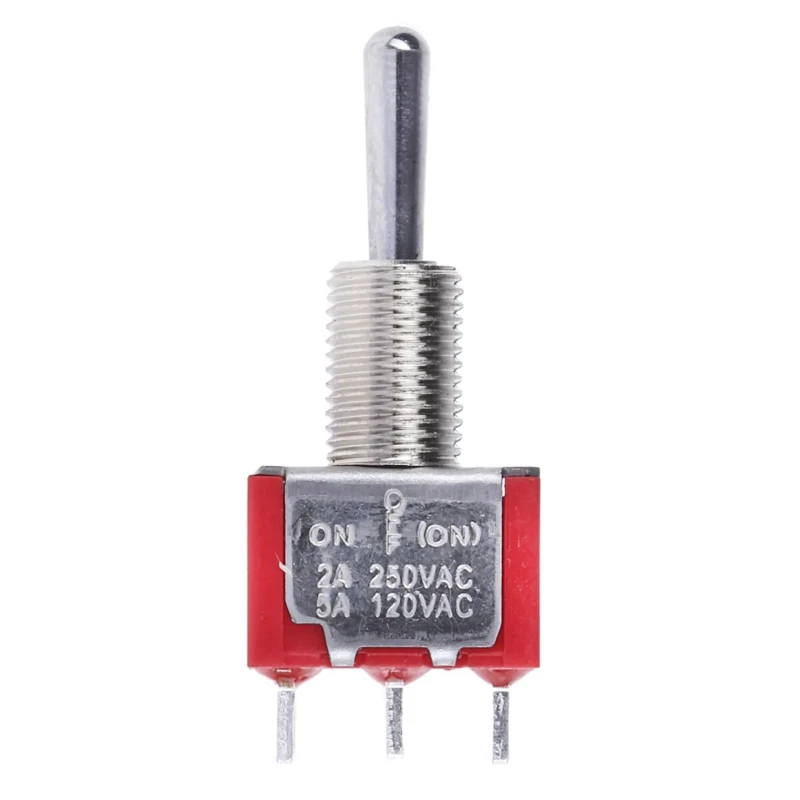

RS PRO Toggle Switch Panel Mount On-Off-(On) SPDT Solder Terminal 28V DC 112V AC 5A 1MS 734-7145P
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 734-7145P |
| Mount Type | Panel |
| Series | 1MS |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS, CE, CSA, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 734-7145PBrand: RS PRO |
| Switch Operation | On-Off-(On) |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 40000Cycles |
| Contact AC Voltage | 112V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- This switch features a chromium-plated brass actuator for durability.
- It has a contact resistance of 10 mΩ ensuring low power loss.
- The switch supports panel mounting with solder terminals for secure connection.
- Designed for reliable use with a mechanical life of 40,000 cycles.
- Operating temperature ranges from -30°C to +85°C suitable for diverse environments.
- Its panel cutout size is 6.35 mm, facilitating easy installation.
- The contact current rating is 5 A at 250V AC with silver-plated contacts.
- Lead-free and RoHS compliant ensuring environmental safety.
Product Description
RS PRO 734-7145P toggle switch is a high-quality panel mount single pole double throw (SPDT) device featuring On-Off-(On) switch operation, suitable for electrical and automation applications operating at 28V DC and 112V AC voltages with 5A current rating.
The switch utilizes a chromium-plated brass actuator and silver-plated brass contacts providing excellent durability and reliable electrical conductivity. Designed with a contact resistance of merely 10 mΩ, this miniature toggle switch ensures minimal power loss during operation.
This product is engineered for panel mounting with solder terminals, featuring a panel cutout size of 6.35 mm and an actuator length of 10.41 mm to ensure seamless integration into diverse electrical panels or control consoles.
The switch is rated for a mechanical life of 40,000 cycles and performs reliably in harsh environments with an operating temperature range from -30°C up to +85°C. It is lead-free and compliant with RoHS, CE, CSA, and UL standards, emphasizing its safety and quality assurance.
Typically used for switching or controlling electrical currents in automation, industrial, and electronic equipment, this toggle switch can energize multiple circuits via a single energy source, adding versatility in various electrical installation scenarios.
This is a miniature, latching SPDT toggle switch with On-Off-(On) operation. Panel mount solder type terminals provide secure electrical connections. Low contact resistance of 10 mΩ enhances switch efficiency. Durable chromium-plated brass actuator ensures long-lasting use.
Rated contact current of 5 A at 250 V AC for high load capacity. Wide operating temperature band from -30°C to +85°C. Panel cutout dimension of 6.35 mm for compatibility. Long mechanical life of 40,000 cycles improves reliability.
Lead-free and RoHS compliant for environmental safety.
Available from RS PRO's trusted range, this switch is widely used across industrial automation, electrical panels, and control systems. Explore more quality components in the Toggle Switch category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch has a contact current rating of 5 A at 250 V AC.
It operates within a temperature range of -30°C to +85°C.
This model features solder terminals for secure electrical connections.
The switch is rated for a mechanical life of 40,000 cycles.
The panel cutout size for this toggle switch is 6.35 mm.
The actuator is made of chromium-plated brass, and the contacts are silver-plated brass.
The contact resistance is 10 mΩ, ensuring low power loss during operation.
It is compliant with RoHS, CE, CSA, and UL standards.
The switch configuration is SPDT (Single Pole Double Throw) with an On-Off-(On) operation.
It supports a contact DC voltage of 28V and an AC voltage of 112V.
This toggle switch is typically used for switching or controlling electrical currents in automation, industrial, and electronic equipment.
The actuator length is 10.41 mm.
