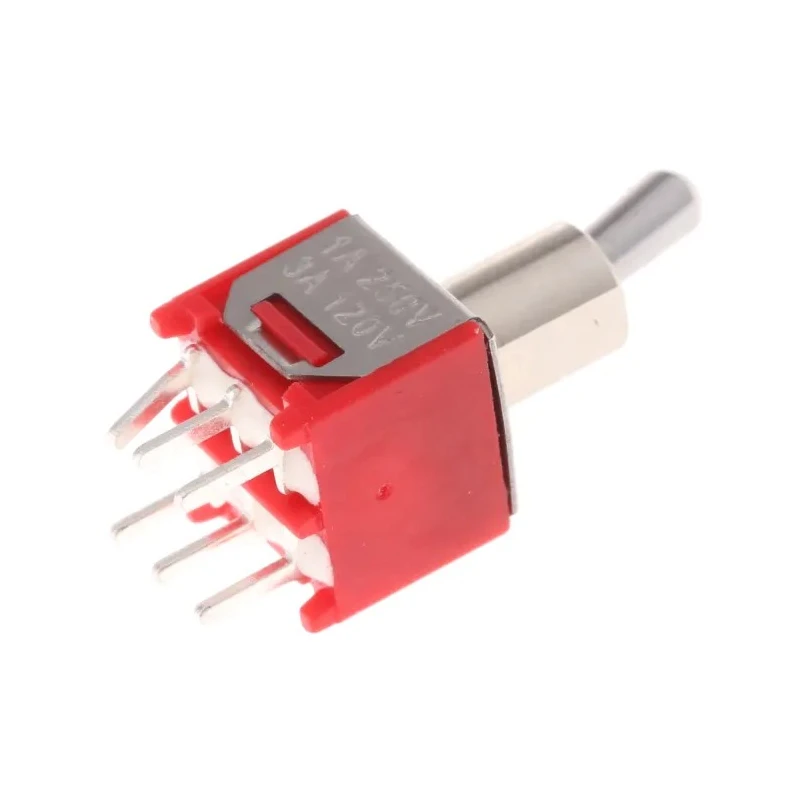

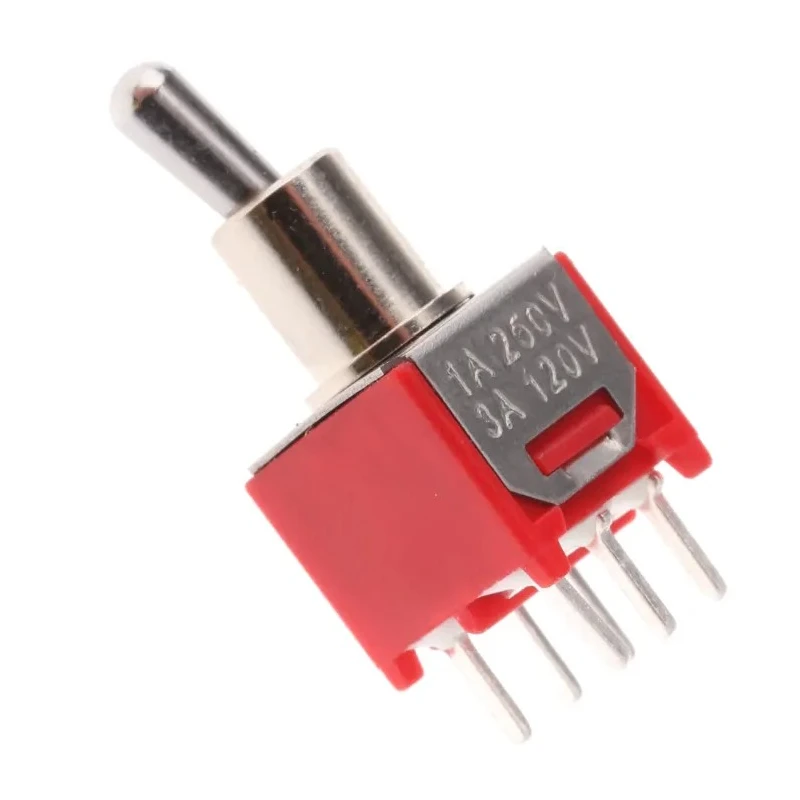

RS PRO Toggle Switch PCB Mount On-On DPDT Through Hole Terminal 15 V DC 240 V AC 734-7182

RS PRO 734-7182 Toggle Switch is a robust PCB mount switch suitable for industrial, electronic, and automation uses. Designed with a Double Pole Double Throw (DPDT) contact configuration and On-On switch operation, it enables switching between two separate circuits without an off position, making it ideal for complex control systems.

With a contact current rating of 3A, it supports moderate power loads and operates at contact voltages of 15 V DC and 240 V AC. Its through hole terminal mount type ensures secure PCB integration, complemented by a chrome plated brass actuator that offers durability and precise tactile feedback. The compact design includes a panel cutout size of 4.95 mm and actuator length of 5.33 mm, allowing for space-efficient installation.

This toggle switch exhibits high environmental resistance with IP56 and IP66 ratings, providing protection against dust ingress and water jets, suitable for demanding industrial or outdoor applications. The device operates reliably in a temperature range from -30°C to 85°C and carries certifications including UL, RoHS, CSA, and CE, confirming compliance with international safety and material standards.

The mechanical life expectancy of 30,000 cycles ensures operational longevity, reducing maintenance intervals for manufacturers and installers. This product belongs to the RS PRO series known for sub-miniature toggle switches featuring low contact resistance. It is a practical component for use in industrial automation systems, electronic project assemblies, and instrumentation requiring dependable switching components.

This toggle switch features a Double Pole Double Throw (DPDT) configuration for complex circuit control. The On-On switch operation allows switching between two circuits with no off position. The device supports a contact current of 3A suitable for moderate load applications.

It is rated for 15 V DC and 240 V AC, accommodating low voltage DC and higher voltage AC controls. Designed for PCB mounting with chrome plated brass actuator for durability and smooth operation. It has a panel cutout size of 4.95 mm and a compact actuator length of 5.33 mm.

The switch complies with UL, RoHS, CSA, and CE standards ensuring quality and safety. It is rated for mechanical life of 30,000 cycles assuring long-term reliability. The switch maintains IP56 and IP66 ratings for dust and water ingress protection in harsh environments.

Explore the RS PRO Toggle Switch range and other RS PRO products in the Electronics & Electricals category on EnvMart for premium quality industrial components.
