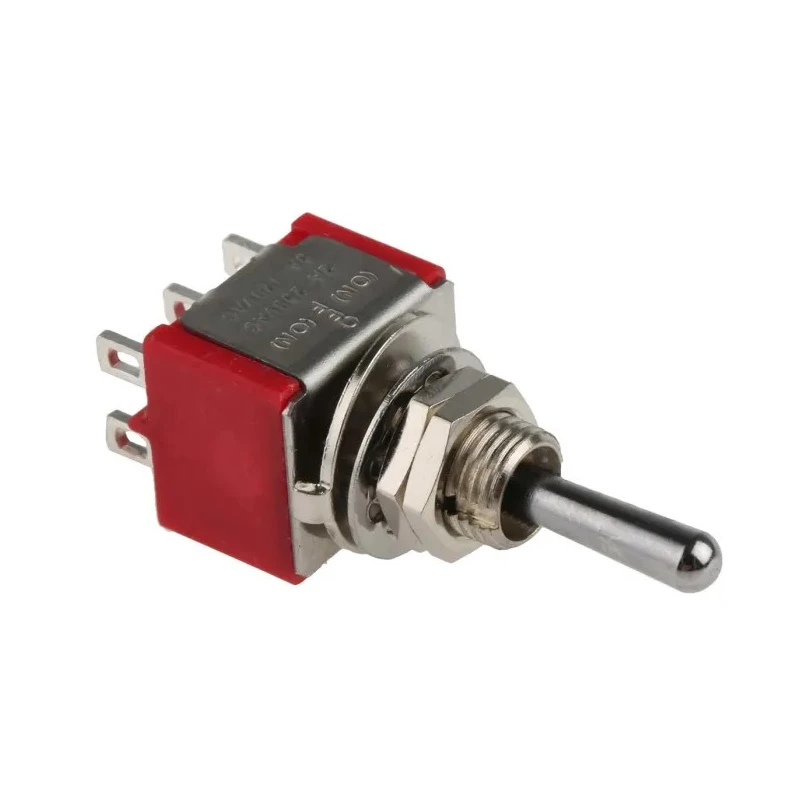

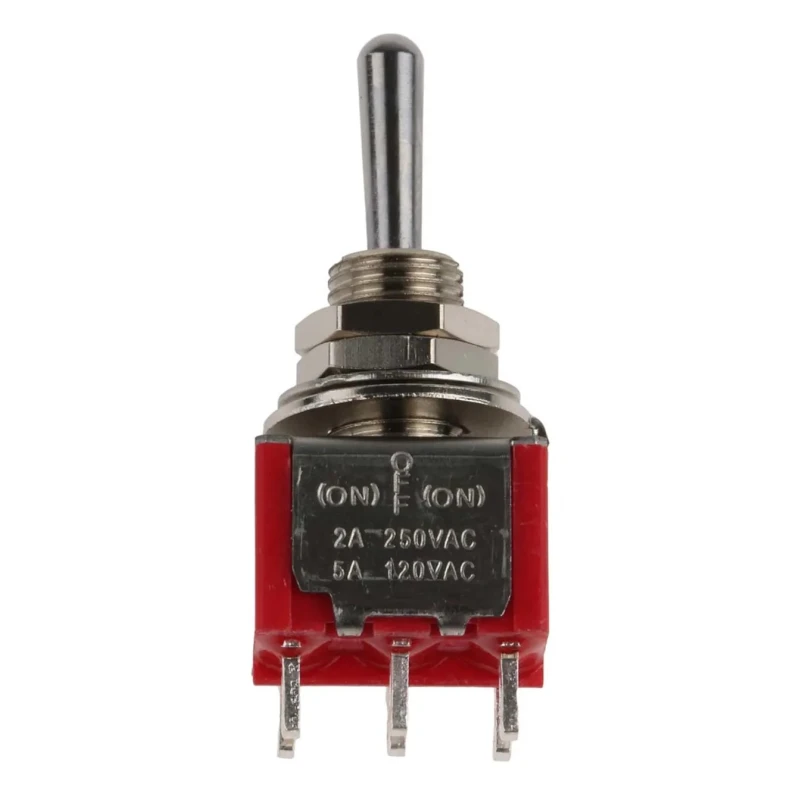

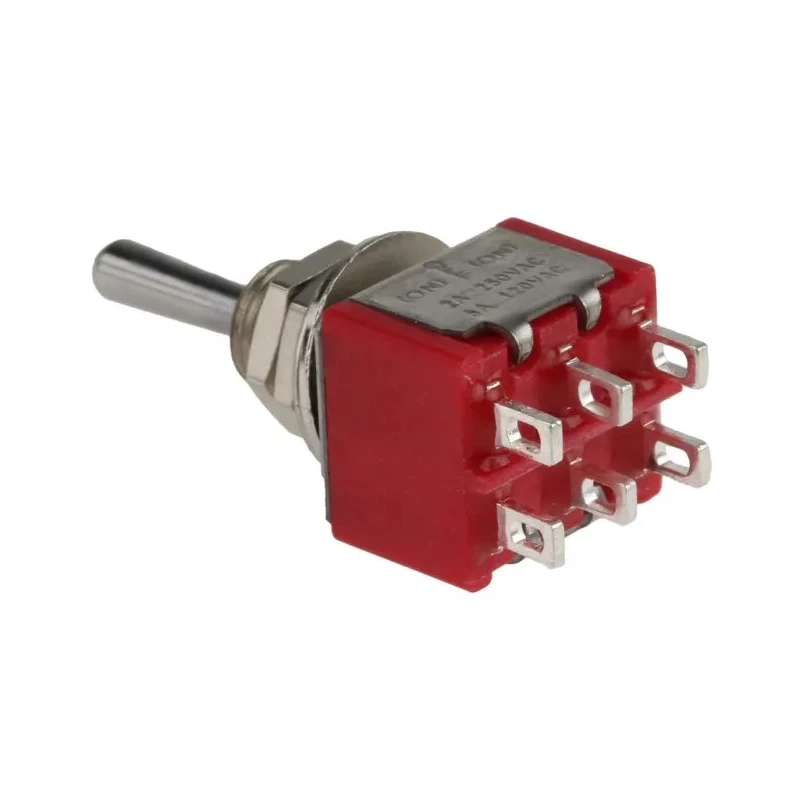

RS PRO Toggle Switch Panel Mount On-Off-On DPDT Solder Terminal 26V DC 112V AC 5A 40000 Cycles 734-7044
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 734-7044 |
| Mount Type | Panel |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | (On)-Off-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS & Lead Free |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 734-7044Brand: RS PRODistrelec Article No.: 30403432 |
| Switch Operation | On-Off-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 26V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 40000Cycles |
| Contact AC Voltage | 112V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- This miniature toggle switch features a chromium-plated brass actuator for durability.
- It is designed for panel mounting with a 6.35 mm panel cutout size.
- The switch offers a mechanical life of 40,000 cycles ensuring long-lasting reliability.
- Silver-plated contacts provide low contact resistance of 10 mΩ.
- It operates smoothly in temperatures ranging from -30°C to 85°C.
- The switch supports electrical applications that require On-Off-On switching configurations.
- It is RoHS compliant and lead-free for safe industrial use.
- Ideal for automation, electrical control, and circuit switching operations.
Product Description
RS PRO 734-7044 toggle switch is a panel mount On-Off-On double pole double throw (DPDT) switch designed to energize two circuits with a single energy source efficiently. It features robust chromium-plated brass actuator material and silver-plated brass contacts, delivering excellent conductivity and durability. This switch operates at a contact current rating of 5 A, suitable for applications at 26 V DC and 112 V AC voltages. Its low contact resistance of 10 mΩ ensures minimal power loss.
The mechanical life of this switch is rated at 40,000 cycles, underscoring its reliability for industrial use. It is designed for easy panel mounting with a required panel cutout diameter of 6.35 mm, making installation straightforward. The solder terminal type also allows secure electrical connections.
The operating temperature range of -30°C to 85°C enables use in varied environments, including industrial automation and electrical circuit control settings. This toggle switch is lead-free and RoHS compliant, which ensures adherence to environmental safety standards.
Typical uses include switching and controlling electrical currents in automation systems, industrial machinery, and electrical panels. Its compact and sturdy design makes it a popular choice for both new equipment installations and maintenance replacements.
This miniature DPDT toggle switch features panel-mount design with solder terminals. It offers a mechanical life expectancy of 40,000 cycles, supporting long-term industrial use. The switch has a contact current rating of 5 A and low contact resistance of 10 mΩ.
Operating temperature range is from -30°C up to 85°C, suitable for diverse environments. The actuator is made of chromium-plated brass, providing durability and corrosion resistance. The switch is compliant with RoHS and lead-free standards for environmentally safe usage.
Panel cutout diameter for mounting is 6.35 mm with an actuator length of 10.41 mm. The switch operation is On-Off-On, allowing versatile circuit control configurations.
RS PRO products are trusted globally for quality and reliability, engineered for demanding industrial, electrical, and automation applications. Browse our catalog for similar Toggle Switches, solder terminals, and panel mount switches ideal for your electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this toggle switch is 5 A.
This model operates at 26 V DC and 112 V AC.
The mechanical life of this switch is rated at 40,000 cycles.
The required panel cutout size for this switch is 6.35 mm.
It operates smoothly in temperatures ranging from -30°C to 85°C.
This unit features solder terminals for secure electrical connections.
The actuator is made of chromium-plated brass, and the contacts are silver-plated brass.
Yes, it is RoHS compliant and lead-free, ensuring adherence to environmental safety standards.
The switch has a low contact resistance of 10 mΩ, ensuring minimal power loss.
The switch configuration is On-Off-On, allowing for versatile circuit control.
It is typically used in automation systems, industrial machinery, and electrical panels for switching and controlling electrical currents.
The actuator length of this toggle switch is 10.41 mm.
