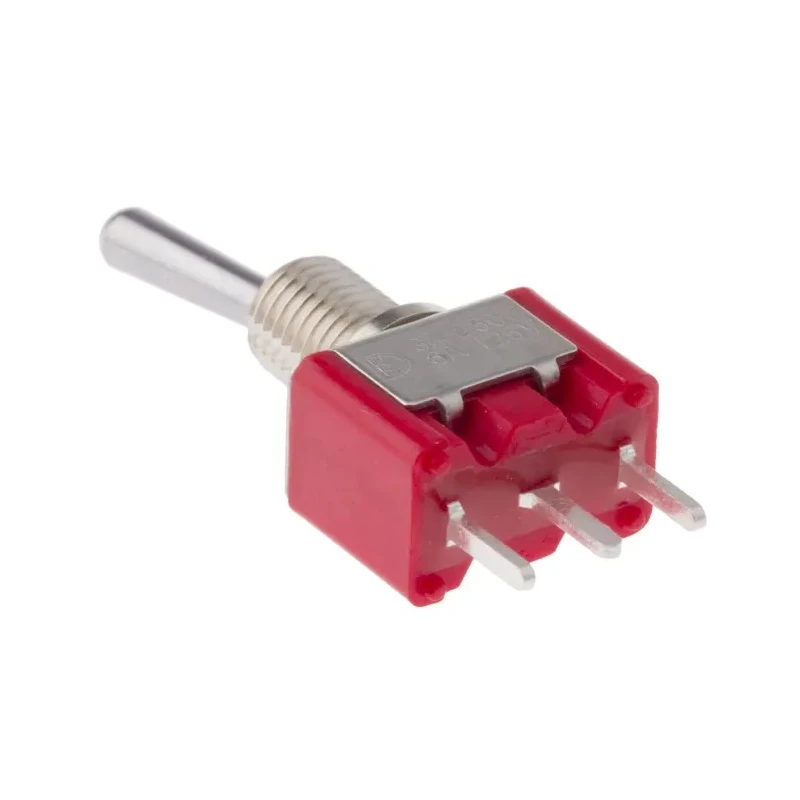

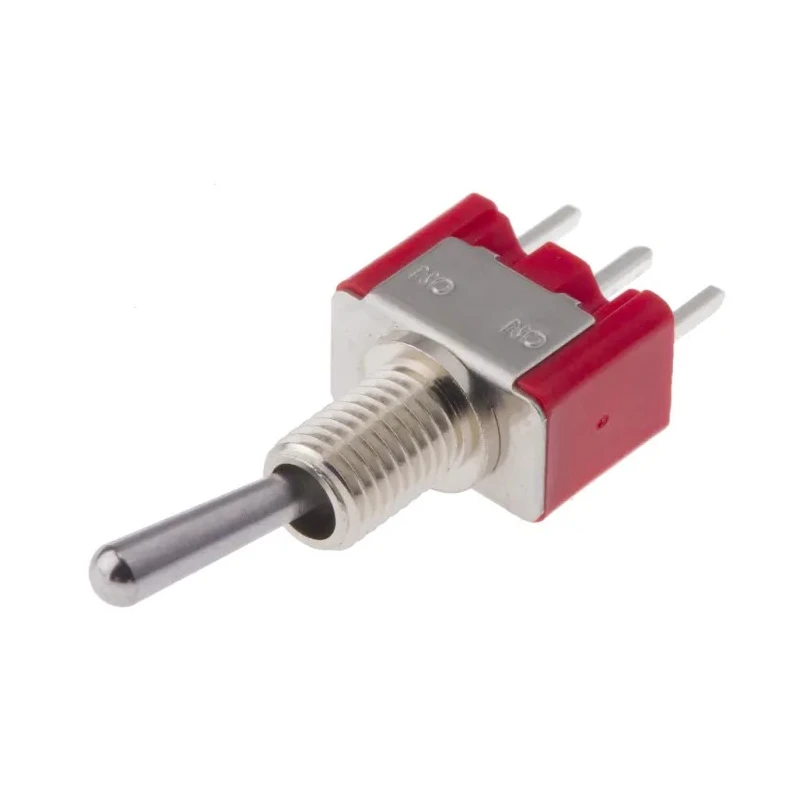

RS PRO Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 12 V dc 112 V ac 734-7003

RS PRO 734-7003 Toggle Switch is a high-quality, water-resistant miniature toggle switch designed for electronic and electrical applications requiring reliable on-on SPDT functionality. The switch is suited for industrial, automation, manufacturing, and consumer electronics, offering dependable performance in a compact form factor.

Designed for PCB mounting with through-hole terminals, this switch ensures secure and durable electrical connectivity, optimizing circuit reliability. The chrome plated brass actuator delivers a smooth tactile feel with a 10.5 mm length, allowing easy handling in compact assemblies.

Rated to handle currents up to 3A and contact voltages of 12 V DC and 112 V AC, it fits low to medium power switching requirements effectively. Its operation within a wide temperature range from -30°C to 85°C enables usage across diverse environmental conditions without degradation.

The mechanical life of 200,000 cycles guarantees longevity, reducing maintenance intervals and downtime. Compact dimensions (34.9 mm length, 12.9 mm height, and 7.9 mm width) accommodate space-constrained designs.

Compliant with RoHS and lead-free standards, the toggle switch supports environmentally responsible engineering practices. The water-resistant property validated for at least 100 make-and-break cycles at 10 cm water depth expands its applicability in moderately harsh environments.

This toggle switch is ideal for industrial automation control panels, consumer electronic devices, and other applications requiring reliable, compact, on-on switching solutions. This toggle switch features a Single Pole Double Throw (SPDT) contact configuration for versatile switching.

It supports a switch contact current of 3A suitable for low power circuits. The switch operates at contact voltages of 12 V DC and 112 V AC for varied electrical environments. It is designed for PCB mounting with through hole terminals ensuring strong mechanical and electrical connections.

The actuator is made from chrome plated brass and measures 10.5 mm in length for ergonomic operation. Operating temperature range is from -30°C to 85°C, suitable for diverse ambient conditions. Mechanical life is rated at 200,000 cycles offering long service durability.

The compact dimensions are 34.9 mm length, 12.9 mm height, and 7.9 mm width, allowing fitting in constrained spaces. It complies with RoHS and is lead free, ensuring environmentally responsible manufacture. Water resistance is certified for minimum 100 make-and-break cycles at 10 cm depth, ideal for moderate exposure applications.
