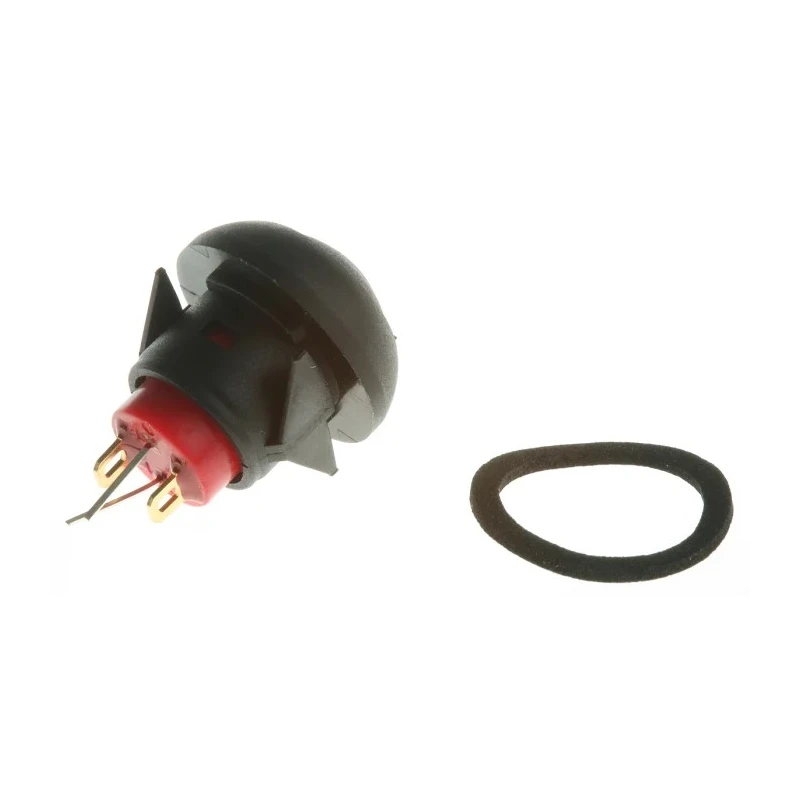

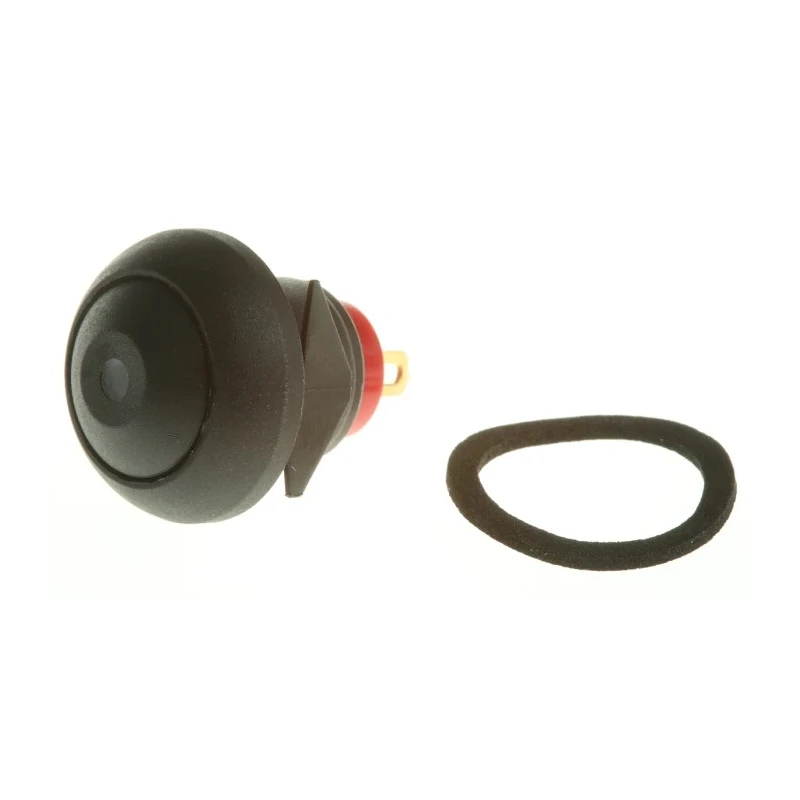

RS PRO Illuminated Miniature Push Button Switch Momentary Panel Mount Cap Black Actuator Green LED IP67 50V DC 32V 734-6697

RS PRO 734-6697 Illuminated Miniature Push Button Switch is a black cap actuator designed for panel mounting in industrial electrical and automation systems. This momentary switch features a SPST contact configuration with a compact 13.6 mm panel cutout, making it ideal for applications requiring compact installation and reliable operation.

The switch is illuminated by a green LED centrally located on the actuator, providing clear visual status indication, and features an IP67 rating for protection against dust and water ingress, suitable for harsh environments.

Rated for switching up to 50 V DC and 32 V AC voltages with a contact current of 400 mA, this switch is ideal for control panels, machinery interfaces, and automation equipment. Its mechanical life of one million cycles ensures durable performance in demanding industrial and manufacturing applications.

The actuator operates with a force between 2N to 5N and a contact bounce time of 10 ms, ensuring responsive and precise switching action. It complies with RoHS standards, emphasizing environmental responsibility and lead-free manufacturing.

Soldering temperature capability up to 350°C for 5 seconds facilitates easy assembly on soldered circuit boards. The maximum operating temperature of 85°C allows reliable functionality in elevated ambient conditions typical in industrial environments.

The actuator is black with a cap style, providing a durable tactile interface. Green LED illumination centrally located for visual feedback. IP67 rating for dust and water protection. Contact configuration: SPST, suitable for simple on/off control.

Operating force ranges between 2N and 5N for ergonomic use. Mechanical life of 1,000,000 cycles ensures long-term durability. Operating temperature up to 85°C for varied environmental conditions. Contact current rating of 400 mA supports moderate electrical loads.

RoHS and lead-free compliance for environmental safety.

Commonly used in industrial control panels, electrical automation systems, and machinery interfaces, the RS PRO 734-6697 switch enhances operational safety and control reliability. Its compact size and robust construction make it suitable for manufacturing, laboratory, and commercial automation solutions.
