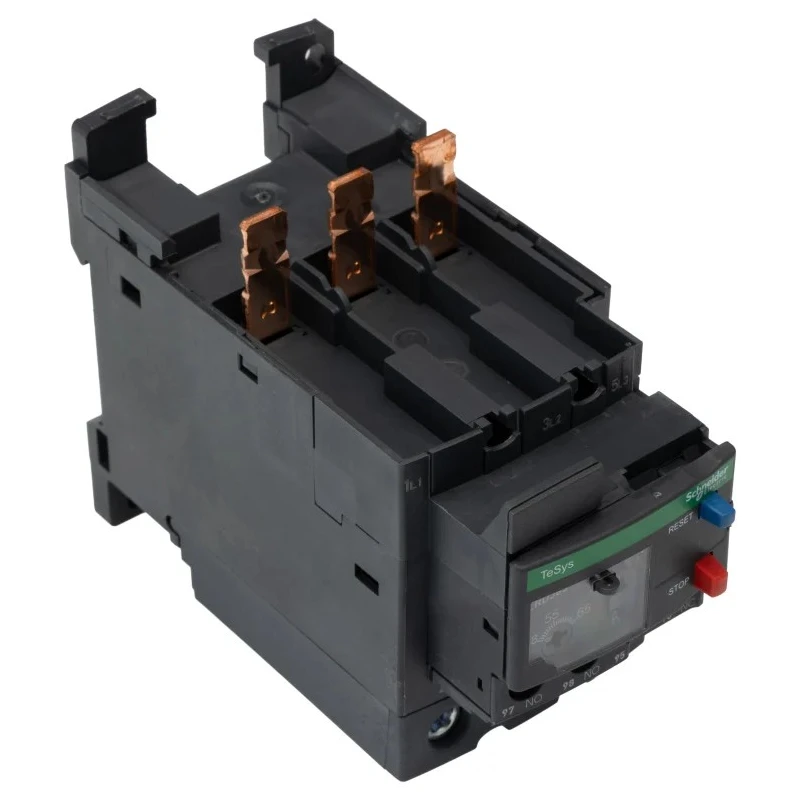

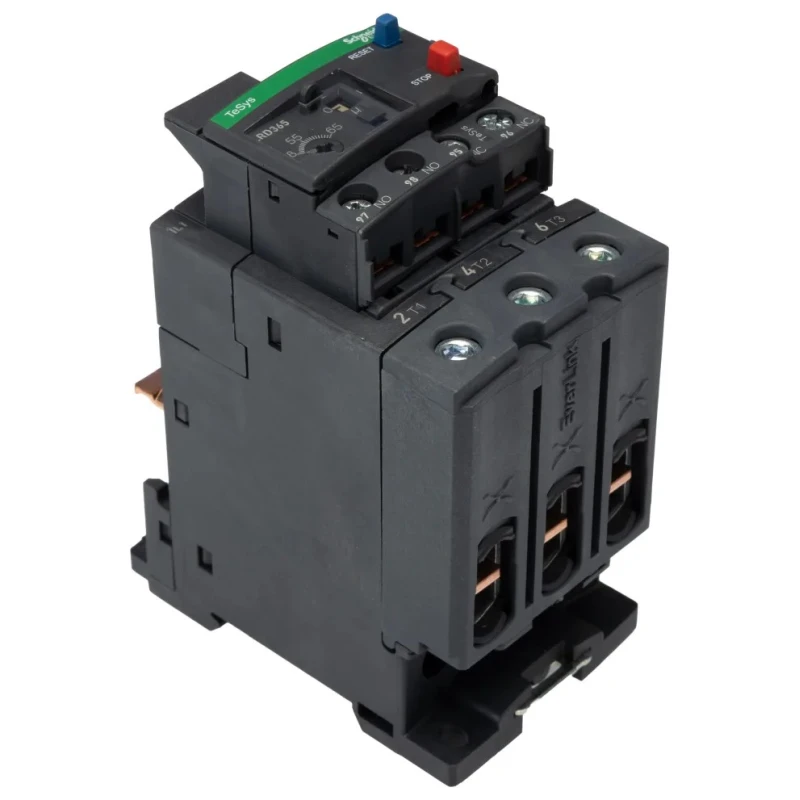

Schneider Electric Thermal Overload Relay LRD365, 1 NO/1 NC, 48-65A, 65A Contact Rating, 30 kW, 6kV Supply Voltage

Schneider Electric LRD365 Thermal Overload Relay is engineered for reliable motor protection in demanding industrial environments. With an adjustable current range of 48 to 65 amperes and a 30 kW motor rating, it delivers precise thermal protection according to IEC 60947-4-1 standards.

This relay includes one normally open and one normally closed auxiliary contact configuration to facilitate enhanced control and signaling capabilities in motor protection circuits. It operates reliably within an ambient temperature range of -20°C to +60°C and features an IP20 enclosure rating providing solid protection against foreign bodies.

Designed for convenient DIN rail mounting, the device incorporates screw terminal connections ensuring secure and durable wiring. The compact form factor with dimensions of 55mm width, 70mm height, and 116mm depth optimizes panel space without compromising performance. Additionally, the relay uses a manual push button reset method allowing easy operation.

Compliance with a broad range of international certifications including EN/IEC 60947-4-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, and GB/T 14048.5 guarantees safety and quality assurance. It is ideal for integration with LC1D65A and LC1D50A contactors in industrial motor control centers and protection panels.

Operates within an adjustable current range of 48 to 65 amperes. Features one normally open and one normally closed auxiliary contact. Power rating of 30 kW with a contact rating of 65A. Push button reset for easy operation.

DIN rail mount and screw terminal connection type. IP20 protection rating suitable for industrial environments. Wide operating temperature range from -20°C to +60°C. Compact size with 55mm width, 70mm height, and 116mm depth dimensions.

Supply and control voltage rated at 6kV. Complies with multiple international standards ensuring safety and reliability.

This Thermal Overload Relay offers essential protection to DC and AC motor systems by preventing overload conditions that may cause damage or downtime. Its robust construction and high standards compliance make it a trusted choice in industrial automation, manufacturing, HVAC applications, and any setting requiring precise motor protection.
