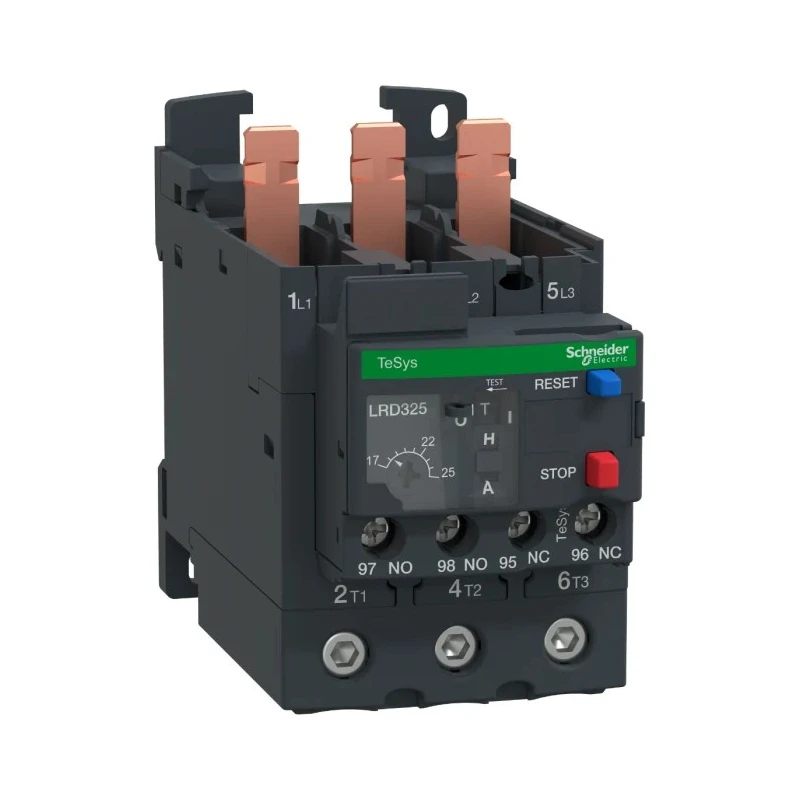

Schneider Electric LRD Thermal Overload Relay 1 NO/1 NC, 17A, 25 A F.L.C, 25A Contact Rating, 11 kW 3 Pole DIN Rail LRD325

Schneider Electric LRD325 Thermal Overload Relay is a robust and reliable industrial relay designed specifically for motor protection in electrical circuits. Engineered to detect and protect against overload conditions, phase failures, long starting times, and prolonged stalling, this relay enhances equipment safety and operational uptime.

The three-pole LRD325 supports adjustable current settings ranging from 17 to 25 A, accommodating motors up to 11 kW power rating. It features one normally open (NO) and one normally closed (NC) auxiliary contact for effective control and signaling functions.

Designed for easy installation, the relay can be mounted directly beneath three-pole contactors or independently on a DIN rail. Its sturdy screw terminals facilitate secure wiring connections, while the push button reset method allows convenient manual resetting after a trip event.

This relay includes a test button to simulate trip conditions, a trip indicator for clear status visibility, and a sealable cover to ensure tamper-proof operation. The unit operates reliably within a temperature range of -20°C to 60°C and offers IP20 ingress protection suitable for indoor electrical panels.

Compliant with several international standards such as GB/T 14048.5, EN/IEC 60947-5-1, and UL 60947-4-1, the LRD325 guarantees high safety and performance levels. It is rated for an insulation voltage of 600 V and withstands voltage spikes up to 6 kV, enabling safe usage in demanding industrial and commercial environments.

This thermal overload relay is ideal for industrial, manufacturing, HVAC, and automation applications requiring precise motor overload protection. Its compact dimensions (116 mm depth, 55 mm width, 70 mm length) allow easy integration into control panels with limited space.

Schneider Electric’s LRD325 combines advanced protection features with reliable mechanical and electrical design to ensure motor longevity and operational safety. This product is manufactured in France, reflecting high quality standards in industrial electrical control equipment.

Equip your motor control system with the Schneider Electric LRD325 Thermal Overload Relay for dependable motor protection and compliance with international standards. Explore EnvMart's extensive range of Schneider Electric automation and control gear products to find compatible accessories and additional components.
