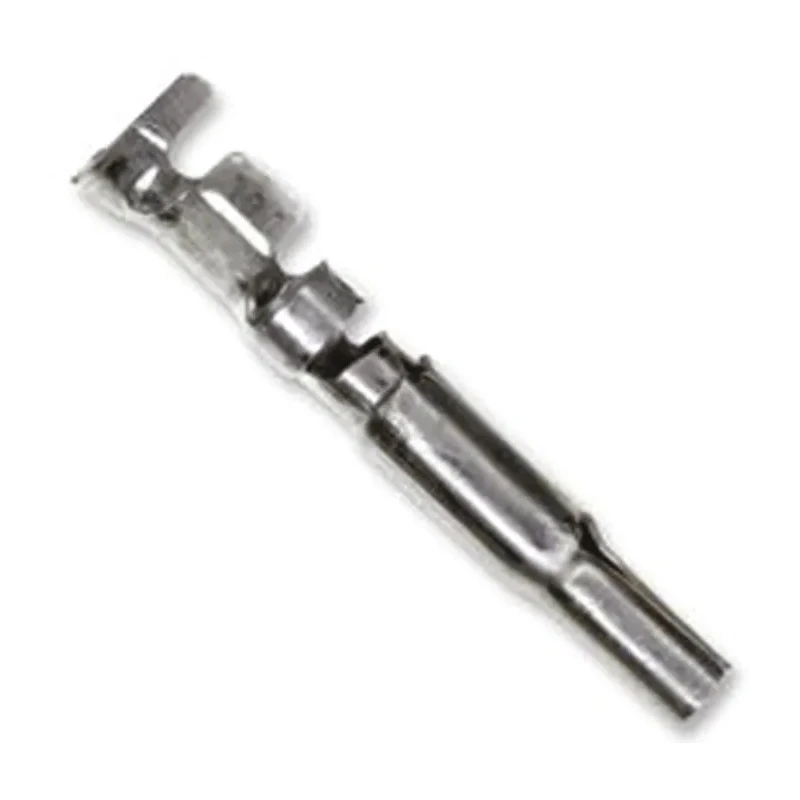

TE Connectivity Universal MATE-N-LOK Series Female Crimp Terminal, Gold Plated, 14-20 AWG, 19A Current, 22.23mm 350536-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 19A |
| Length | 22.23mm |
| Model | 350536-6 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Universal MATE-N-LOK Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-2275PBrand: TE ConnectivityManufacturers Part No.: 350536-6 |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 14AWG |
| Maximum Contact Resistance | 6mΩ |
| Contact Orientation | Straight |
Key Features
- Suitable for 19A current applications in electronic components.
- Made with phosphor bronze contact material for durability.
- Gold-plated contacts ensure excellent conductivity and corrosion resistance.
- Crimp termination type for secure wire connection.
- Operating temperature ranges from -55°C to 105°C.
- Compatible with Universal MATE-N-LOK Connector Housings.
- Contact orientation is straight for easy assembly.
Product Description
TE Connectivity 350536-6 Universal MATE-N-LOK Series Female Crimp Terminal is designed for dependable electrical connections in PCB and wire harness applications. It supports wires from minimum 20 AWG (0.5mm²) up to maximum 14 AWG (2mm²) and is capable of carrying currents up to 19A, making it suitable for various electronic and power applications.
The contact material is phosphor bronze with a gold plating, providing high durability and excellent conductivity with resistance to corrosion. This female Crimp Terminal features a straight contact orientation and crimp termination, ensuring a secure and reliable connection with wire and cable assemblies.
Operating temperature ranges between -55°C to 105°C, allowing for use in demanding environments typical in industrial, HVAC, commercial, and power supply sectors. The contact length is 22.23mm to fit within standard Universal MATE-N-LOK connector housings, an industry-standard connector system for efficient and cost-effective circuit completion on PCBs and related assemblies.
The product does not carry specific certification approvals but is widely adopted for use in consumer electronics, HVAC equipment, commercial machinery, and power supply manufacturing. The terminal is available on reels ready for insertion into automated machinery, supporting production efficiency.
Suitable for 19A current rated applications. Constructed with phosphor bronze and gold plating for superior conductivity. Supports wire sizes from 20 AWG (0.5mm²) to 14 AWG (2mm²). Straight contact orientation with crimp termination.
Operating temperature range from -55°C to 105°C. Length of 22.23mm compact size. Compatible with Universal MATE-N-LOK connector housing system. Designed for industrial, HVAC, commercial, and power supply use cases. Explore the TE Connectivity range on EnvMart for more reliable and high-quality connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a maximum current of 19A, making it suitable for various electronic and power applications.
It supports wire sizes from 20 AWG (0.5mm²) to 14 AWG (2mm²).
The operating temperature range for this terminal is from -55°C to 105°C, allowing for use in demanding environments.
The contact material is phosphor bronze, which is gold plated for enhanced conductivity and corrosion resistance.
The contact length of this terminal is 22.23mm, designed to fit within standard Universal MATE-N-LOK connector housings.
This terminal utilizes a crimp termination type, ensuring a secure and reliable connection with wire and cable assemblies.
Yes, it is compatible with Universal MATE-N-LOK connector housings, which are an industry-standard connector system.
The contact orientation is straight, which facilitates easy assembly during installation.
The maximum contact resistance for this terminal is 6mΩ, ensuring efficient electrical connections.
This terminal is suitable for use in industrial, HVAC, commercial, and power supply applications.
The country of origin for this product is India.
The model number of this crimp terminal is 350536-6.
