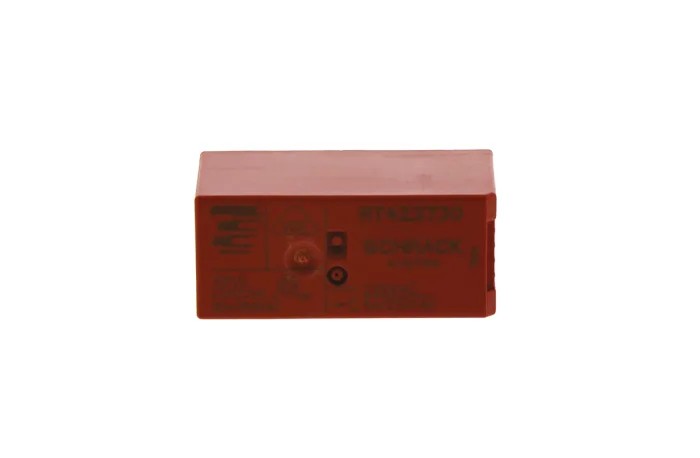

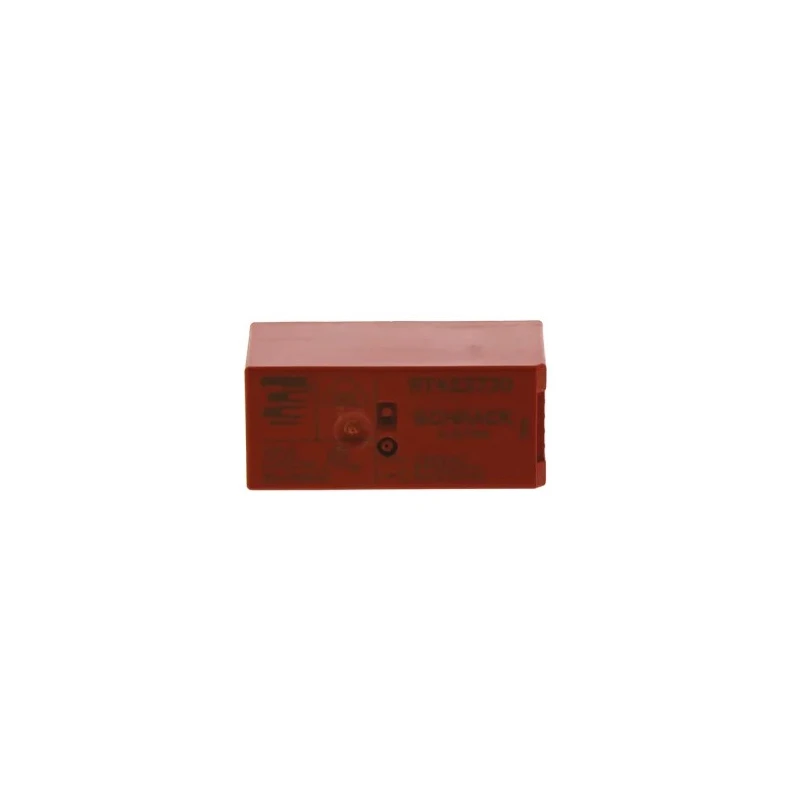

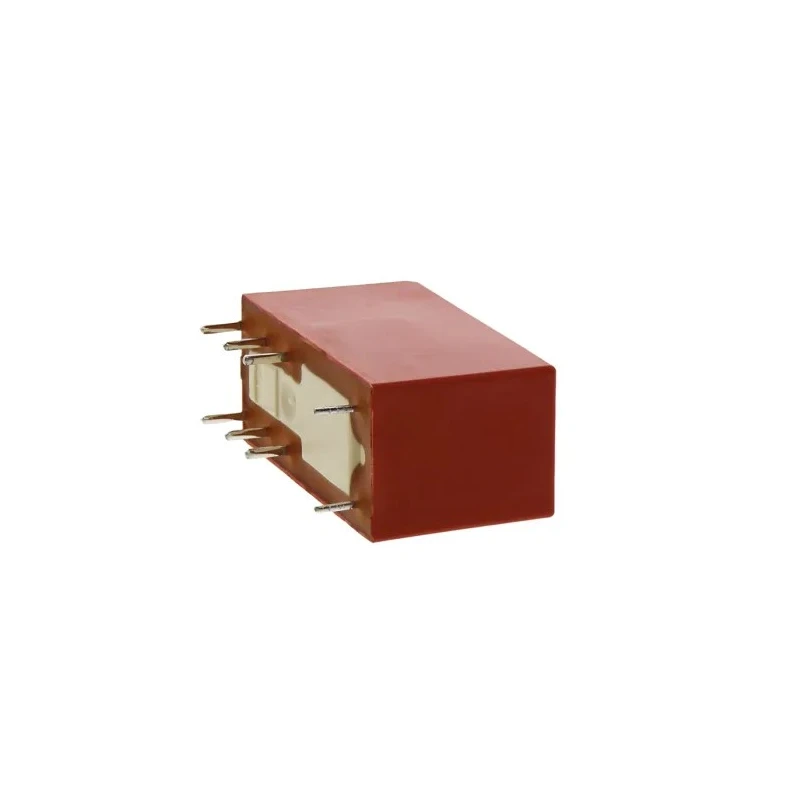

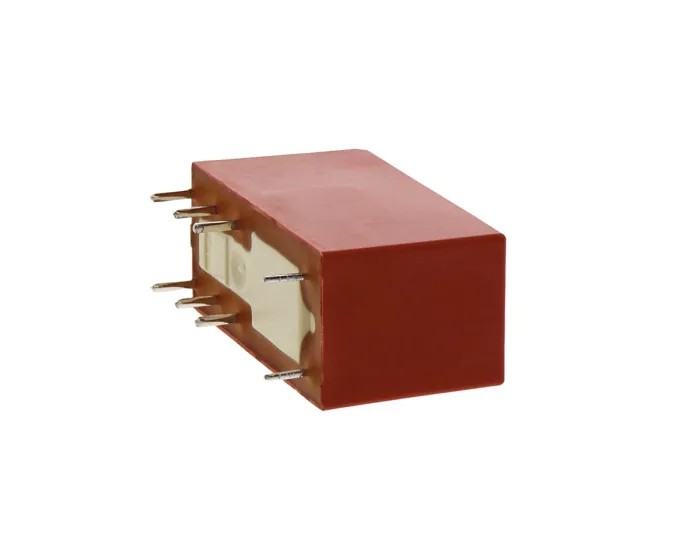

TE Connectivity RT2 Series PCB Power Relay 230V AC Coil 10A Switching Current DPDT 4-1393243-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RT2 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | UL, IEC, REACH, RoHS, VDE |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-2005Brand: TE ConnectivityManufacturers Part No.: 4-1393243-3Distrelec Article No.: 30129002 |
| Coil Resistance | 32.5kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 400V ac |
| Coil Power | 740mW |
Key Features
- The relay features a silver alloy contact material ensuring high conductivity and durability.
- It supports PCB mounting with solder terminal type and belongs to the RT2 series, optimized for through-hole assembly.
- Coil resistance is 32.5kΩ, with coil power consumption rated at 740mW.
- Operational temperature range is from -40°C to a maximum of 70°C, suitable for varied industrial environments.
- The relay switches up to 10A current at 400V AC switching AC voltage, meeting UL, IEC, REACH, RoHS, and VDE standards.
- Applications include automation, interface circuits, domestic appliances, security lighting, and heating systems.
- Designed for industrial, manufacturing, laboratory, and HVAC applications requiring reliable power switching.
Product Description
TE Connectivity 4-1393243-3 RT2 Series PCB Power Relay is designed for robust power switching applications with a coil voltage of 230V AC and a switching current rating of 10A. This double pole double throw (DPDT) relay facilitates reliable control in electronic circuits and devices that demand compact and efficient PCB mounting solutions.
The relay features silver alloy contact material, providing excellent electrical conductivity and longevity. The solder terminal type supports secure PCB installation with 5mm pinning designed for flux proof operation.
With coil resistance at 32.5kΩ and coil power consumption of 740mW, the device offers efficient electrical performance. It operates reliably across a wide temperature range from -40°C to 70°C, making it suitable for harsh industrial environments.
Physical dimensions of 29mm length, 12.7mm width, and 15.7mm height enable space-saving PCB designs without compromising functionality. The relay safely switches AC voltages up to 400V and supports a maximum switching power of 2kVA, certified to international standards including UL, IEC, REACH, RoHS, and VDE ensuring compliance and quality assurance.
The relay is ideal for applications in electronic automation, interface circuits, domestic appliances, security lighting systems, and heating control. It is widely employed in industrial, laboratory, HVAC, and manufacturing sectors requiring dependable relay switching solutions.
RT Series relays have variants with differing pinning and insulation types suitable for specific environmental and application needs. Creepage and clearance distances are maintained at 10/10 mm for enhanced electrical safety.
Part number suffix F indicates coil insulation system compliant with UL class F standards.
This TE Connectivity power relay enhances automation efficiency through precise switching control at high voltages and currents, contributing to enhanced reliability in devices and machinery.
Explore more Power Relays in EnvMart's catalog for versatile electrical and automation solutions tailored to your industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 10A.
This model operates with a coil voltage of 230V AC.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height.
It operates reliably within a temperature range of -40°C to 70°C.
This relay features a double pole double throw (DPDT) contact configuration.
The coil resistance is rated at 32.5kΩ.
It meets UL, IEC, REACH, RoHS, and VDE standards.
The relay can switch AC voltages up to 400V.
The coil power consumption is rated at 740mW.
It supports PCB mounting with a solder terminal type.
It is suitable for applications in automation, interface circuits, domestic appliances, security lighting, and heating systems.
The relay features contacts made of silver alloy, ensuring high conductivity.
