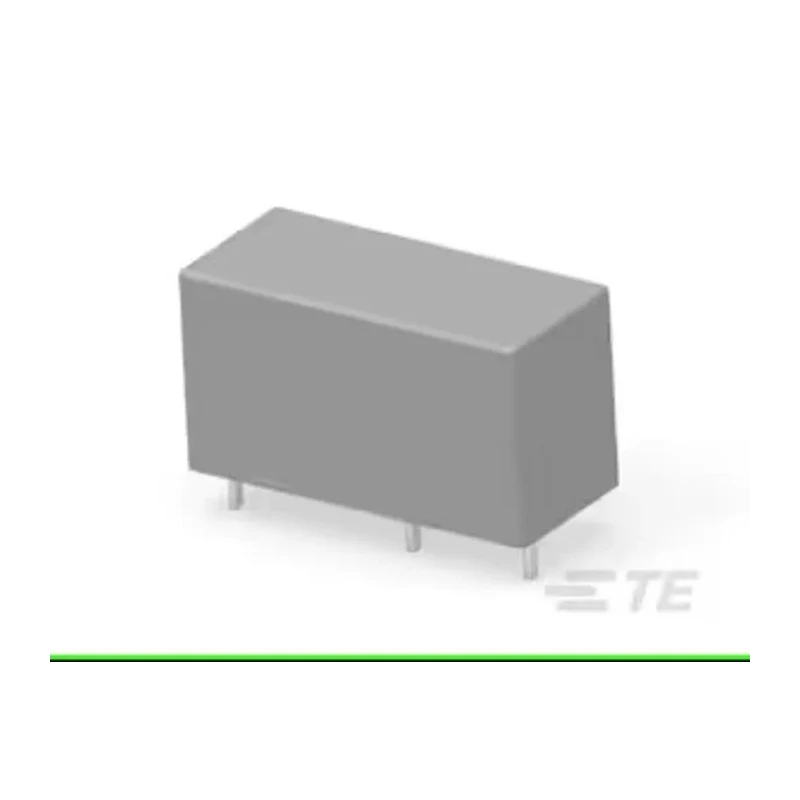

TE Connectivity PCB Power Relay 230V ac Coil 12A Switching Current SPDT RT214730

TE Connectivity RT214730 PCB Power Relay is a robust electromechanical relay designed for switched power applications. With a coil voltage of 230V ac and a switching current capacity of 12 amperes configured as SPDT (Single Pole Double Throw), it ensures reliable switching performance on printed circuit boards (PCB).

This relay belongs to the RT1 series and features solder-type terminals along with a flux-proof design. It operates within a wide temperature range from -40°C to a maximum of 70°C, making it suitable for demanding industrial and domestic environments.

The relay coil has a resistance of 32.5k ohms and consumes 740 milliwatts of power. It supports switching AC voltages up to 400V and switching power up to 4kVA, enabling it to handle significant electrical loads safely. The compact physical dimensions of 29mm length, 15.7mm height, and 12.7mm width facilitate easy integration into various PCB layouts.

Constructed with silver alloy contacts, the relay offers excellent conductivity and long-lasting durability. It meets various international approvals and standards including CSA, VDE, UL, RoHS, REACH, ELV, and CQC, signifying its compliance with safety and environmental regulations.

This PCB power relay is widely used in industrial automation, interface circuits, security lighting systems, heating controls, and other domestic applications where efficient switching and reliability are required. It is supplied ready for insertion into machinery in tubes for enhanced production efficiency.

The relay features solder terminal type for secure PCB mounting. Operating temperature ranges from -40°C to 70°C, suitable for various industrial environments. Coil resistance is 32.5kΩ with a coil power of 740mW ensuring efficient operation.

Switching AC voltage capacity is 400V ac with a switching power rating of 4kVA. Compact dimensions of 29mm length, 15.7mm height, and 12.7mm width suit PCB integration. Constructed with silver alloy contacts for reliable conductivity and durability.

Complies with multiple standards including CSA, VDE, UL, RoHS, REACH, ELV, and CQC. Ideal for applications in automation, interface systems, domestic appliances, security lighting, and heating controls. Explore our range of Power Relays at EnvMart for reliable and compliant electrical components.
