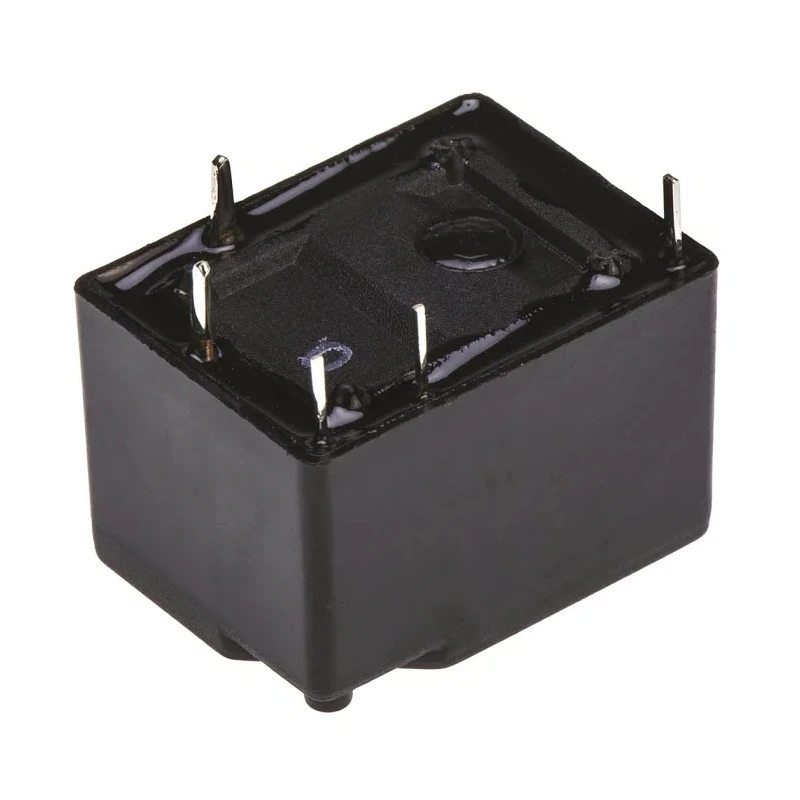

TE Connectivity PCB Power Relay, 12V dc Coil, 7A Switching Current, SPDT 1393204-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 14.9mm |
| Length | 21.1mm |
| Width | 16.2mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SCHRACK |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 7A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-1878PBrand: TE ConnectivityManufacturers Part No.: 1393204-7 |
| Coil Resistance | 119Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 450mW |
| Isolation Coil To Contact | 4000Vac |
Key Features
- Features single pole double throw (SPDT) contact configuration for versatile applications.
- Coil voltage is 12 volts DC with a coil resistance of 119 ohms.
- Switching current up to 7 amps and switching voltage rating up to 400 volts AC.
- Equipped with silver alloy contacts ensuring durability and conductivity.
- Through hole terminal type suitable for PCB mounting with SCHRACK series design.
- Operating temperature range from -25°C to 70°C for stable performance in varied environments.
- Compact dimensions with length 21.1mm, width 16.2mm, and height 14.9mm.
- Coil power consumption of 450mW for efficient energy usage.
Product Description
TE Connectivity 1393204-7 PCB Power Relay is a high-quality SPDT relay designed for PCB mounting with a 12V DC coil and a switching current capacity of 7A. This relay is part of the SCHRACK series, featuring a robust silver alloy contact material and through hole terminal type for reliable electrical connections.
The relay's coil resistance is 119 ohms with a coil power of 450 mW, ensuring efficient operation and low power consumption. It supports switching voltages up to 400 V AC and is rated for switching power of 1.75 kVA. The compact dimensions of 21.1mm length, 16.2mm width, and 14.9mm height make it suitable for space-constrained PCB applications.
Operating safely between -25°C to 70°C, the relay features a fully sealed design for protection against dust and moisture, enhancing durability and long-term reliability. The isolation between coil and contact is rated at 4000 VAC, providing strong electrical insulation for industrial and commercial applications.
This power relay is ideal for industrial automation, electrical equipment control, and signal conditioning tasks in various fields including manufacturing, HVAC systems, and instrumentation where precise switching is essential.
Single pole double throw (SPDT) contact configuration. Through hole PCB mount terminal type with silver alloy contacts. 12V dc coil voltage with 119Ω coil resistance and 450mW coil power. Switching current rated up to 7A and switching AC voltage up to 400V ac.
Operating temperature range from -25° to +70°C. Isolation coil to contact voltage of 4000 VAC for enhanced safety. Compact form factor with dimensions 21.1mm x 16.2mm x 14.9mm. Fully sealed design for environmental protection.
Explore more Power Relays and electronic components on EnvMart for your industrial and electrical automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current capacity of up to 7A.
The coil voltage for this model is 12V DC.
The dimensions of this relay are 21.1mm in length, 16.2mm in width, and 14.9mm in height.
It features a single pole double throw (SPDT) contact configuration.
The maximum switching voltage rating for this relay is 400V AC.
The coil resistance is 119 ohms.
This relay operates within a temperature range of -25°C to 70°C.
It uses a through hole terminal type suitable for PCB mounting.
The coil power consumption is 450mW.
The contacts are made of silver alloy, ensuring good conductivity.
The isolation voltage between the coil and contact is rated at 4000 VAC.
This relay complies with RoHS standards.
