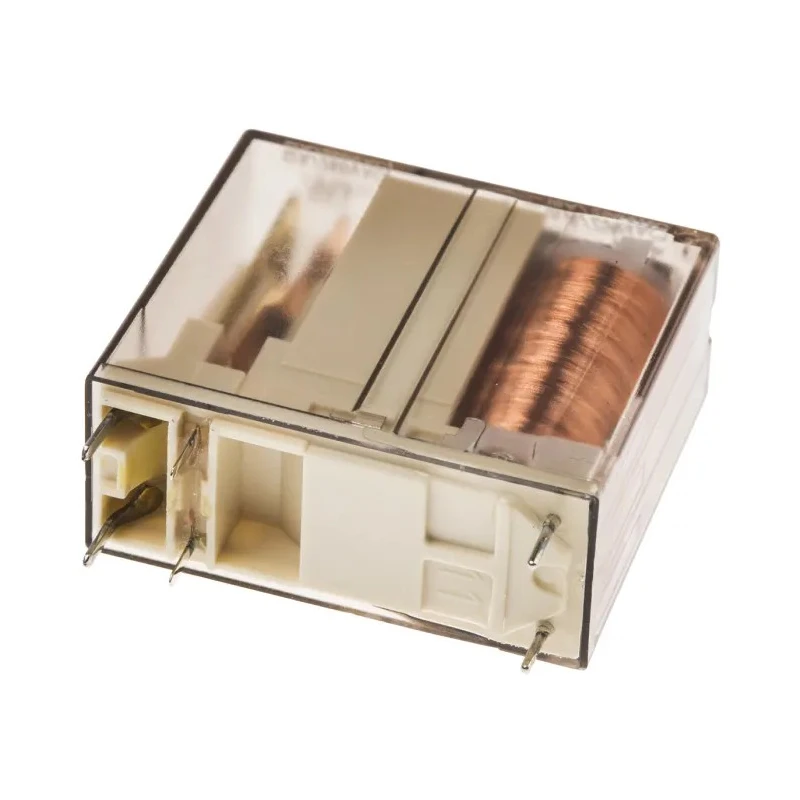

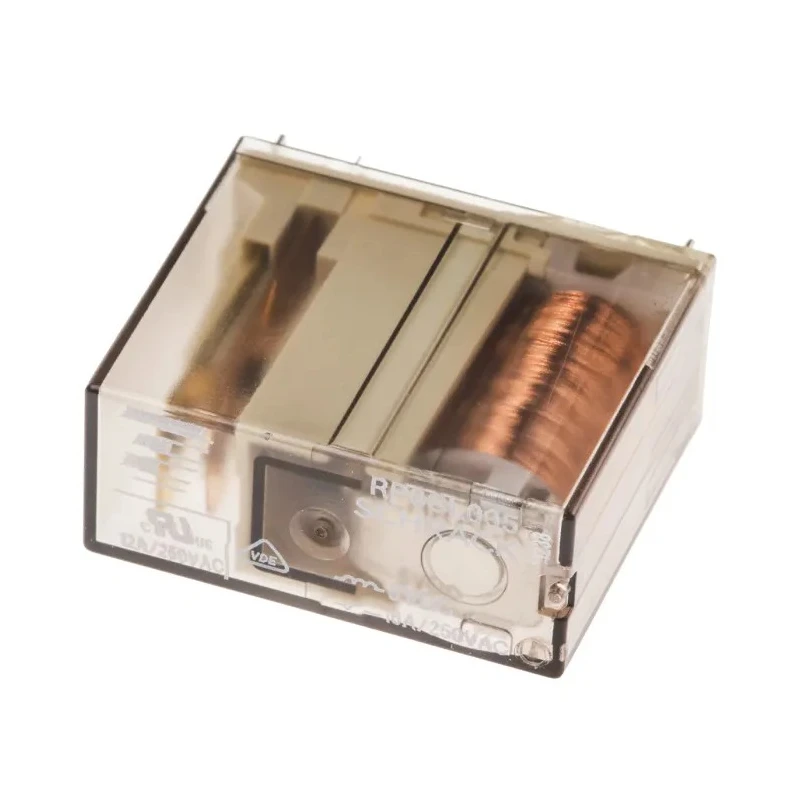

TE Connectivity PCB Power Relay, 5V dc Coil, 16A Switching Current, SPST 1393230-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 25.5mm |
| Operating Temperature Range | -40 to +70°C |
| Length | 29mm |
| Width | 12.6mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RP3SL |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC, REACH, RoHS, UL, VDE |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-1853PBrand: TE ConnectivityManufacturers Part No.: 1393230-7 |
| Coil Resistance | 54Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 500 mW |
| Isolation Coil To Contact | 4000Vac |
Key Features
- Coil voltage is 5 V dc with a coil resistance of 54 ohms.
- Switching current rating is 16 amperes suitable for moderate current loads.
- Operates within a wide temperature range from -40°C to +70°C.
- Switching voltages are rated to 400V ac and 300V dc ensuring compatibility with various power supplies.
- Silver alloy contact material provides reliable electrical conductivity and longevity.
- Compact PCB mount design with solder terminals for easy integration.
- Coil power consumption is low at 500 mW, improving energy efficiency.
- Compliance with IEC, REACH, RoHS, UL, and VDE standards guarantees safety and quality.
Product Description
TE Connectivity model 1393230-7 is a high-quality PCB power relay featuring a 5V dc coil and capable of switching 16A currents with an SPST contact configuration. It is designed for demanding electrical and automation applications where reliable switching of AC and DC loads is required.
This relay includes a silver alloy contact system that ensures minimal contact resistance and durable operation. The coil resistance is 54 ohms with a low power usage of 500 mW, making it suitable for efficient control circuits.
With a switching AC voltage of 400V and switching DC voltage of 300V, this component supports a wide range of industrial and commercial electrical systems. Its operating temperature range from -40°C to +70°C allows reliable performance in harsh environmental conditions.
The relay measures 25.5 mm in height, 29 mm in length, and 12.6 mm in width, designed specifically for PCB mounting with solder-type terminals. The RP3SL series includes a robust 120A, 20ms inrush capability, and external DIN rail mounting sockets are available for convenient installation.
Coil voltage: 5V dc with 54Ω resistance. Switching current: 16A SPST contacts. Operating temperature range: -40°C to +70°C. Switching DC voltage: 300V dc. Switching AC voltage: 400V ac. Silver alloy contact material. Coil power consumption: 500 mW.
Compact PCB mount design. Certifications: IEC, REACH, RoHS, UL, VDE.
This power relay is commonly used in lighting control, timers, motor control, and home automation applications, providing reliable switching performance and long service life. It is suitable for industrial, laboratory, HVAC, manufacturing, and commercial electrical control systems.
For more technical information, design resources, and alternative components, users can access compatible 3D models, schematics, and footprints. The relay is supplied in tubes prepared for efficient machine insertion, improving production efficiency.
Browse the full range of Power Relays and electrical components on EnvMart for quality assurance and industrial-grade performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power relay has a switching current rating of 16A, making it suitable for moderate current loads.
This model features a coil voltage of 5V dc with a coil resistance of 54 ohms.
It operates within a temperature range from -40°C to +70°C, allowing reliable performance in various environmental conditions.
The relay is rated for a switching voltage of 400V ac and 300V dc, ensuring compatibility with various power supplies.
This relay utilizes an SPST (Single Pole Single Throw) contact configuration.
The coil power consumption is low at 500 mW, which improves energy efficiency.
The relay measures 25.5 mm in height, 29 mm in length, and 12.6 mm in width, designed for PCB mounting.
The contacts are made from silver alloy, which provides reliable electrical conductivity.
It complies with IEC, REACH, RoHS, UL, and VDE standards, ensuring safety and quality.
This model supports PCB mounting with solder terminals for easy integration into circuits.
It is commonly used in lighting control, timers, motor control, and home automation applications.
The isolation voltage between the coil and contacts is rated at 4000Vac, providing additional safety.
