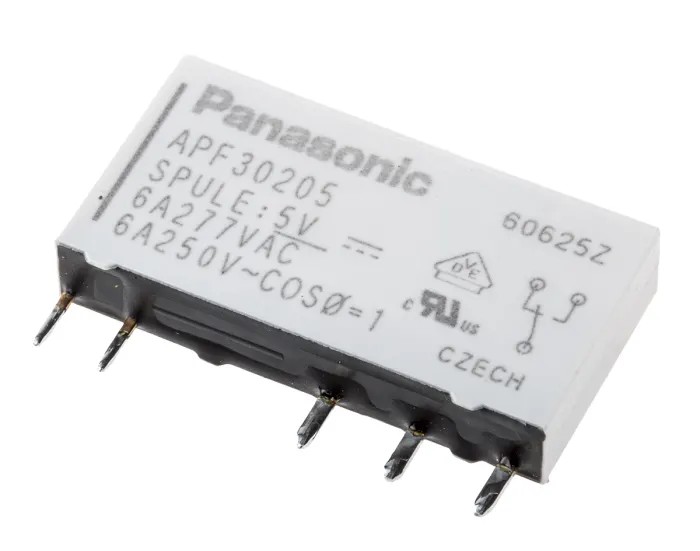

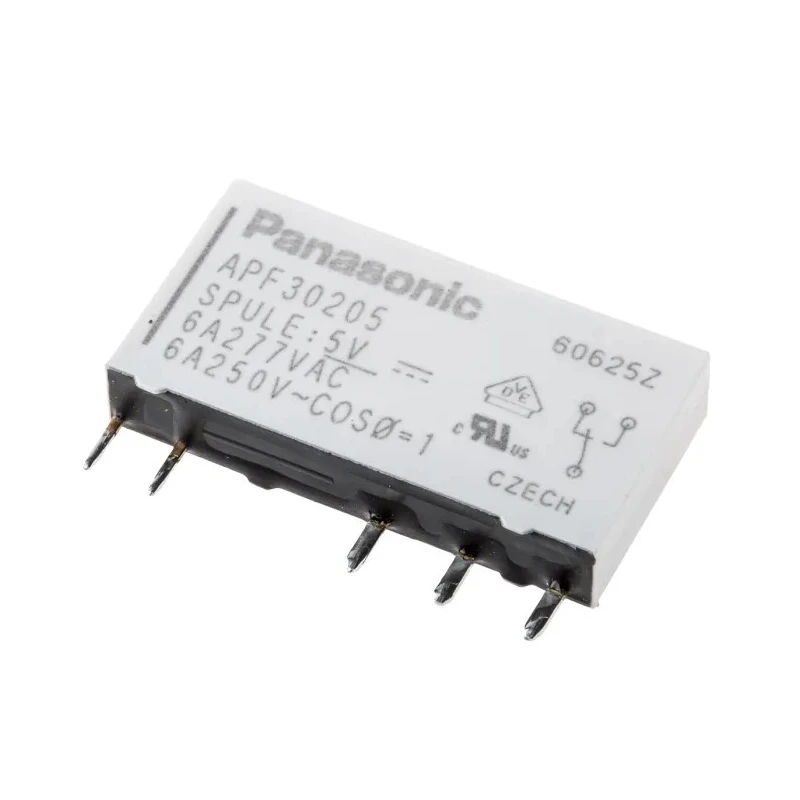

Panasonic PCB Power Relay, 5V DC Coil, 6A Switching Current, SPDT APF30205
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Panasonic |
| Height | 15mm |
| Length | 28mm |
| Model | APF30205 |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | APF |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | VDE, RoHS, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 715-3536Brand: PanasonicManufacturers Part No.: APF30205 |
| Coil Resistance | 147Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 170mW |
Key Features
- Equipped with a 5V DC coil for efficient power consumption.
- Single Pole Double Throw (SPDT) contact configuration provides versatile switching functions.
- Designed for PCB mounting with solder terminals for reliable connections.
- Offers high switching capacity of 1.5 kVA and switching AC voltage up to 250V AC.
- Operates reliably within temperature range of -40°C to 85°C.
- Coil resistance is 147 ohms, consuming 170 mW coil power for energy efficiency.
- Compact dimensions of 28mm length, 5mm width, and 15mm height ideal for high-density PCB layouts.
- Silver alloy contact material ensures durability and low contact resistance (100 mΩ).
Product Description
Panasonic APF30205 is a compact PCB Power Relay designed for industrial and automation applications requiring reliable switching with a 5V DC coil voltage and a 6A switching current capacity. It features a Single Pole Double Throw (SPDT) contact configuration ideally suited for high-density printed circuit board installations.
This APF series relay delivers a high switching power of 1.5 kVA and can handle switching AC voltages up to 250V, suitable for a wide range of electrical control systems. Operating over a temperature range from -40°C to 85°C, it performs reliably in harsh environments common in industrial, manufacturing, and HVAC control systems.
The relay's coil resistance is 147Ω with a power consumption of 170mW, promoting energy efficiency. Its compact form factor with dimensions of 28mm (length) x 5mm (width) x 15mm (height) supports integration into space-constrained applications. The silver alloy contacts ensure excellent conductivity and low contact resistance of 100mΩ for consistent switching performance.
Manufactured in Czech Republic, the relay complies with international standards including VDE, RoHS, and UL, reflecting its quality and safety certification for global use. Equipped with 5V DC coil for efficient power use.
SPDT contact configuration provides versatile switching capabilities. Compact size supports high-density PCB mounting. High switching capacity of 1.5 kVA and 250V AC voltage support. Wide operational temperature range from -40°C to 85°C.
Energy-efficient coil resistance and power consumption. Durable silver alloy contacts with low resistance. Compliance with VDE, RoHS, UL standards ensures safety and quality.
This power relay is used extensively in industrial automation, control gear, electrical equipment, and manufacturing applications requiring reliable switching performance. It is ideal for integration into circuit board assemblies where space and power efficiency are critical.
