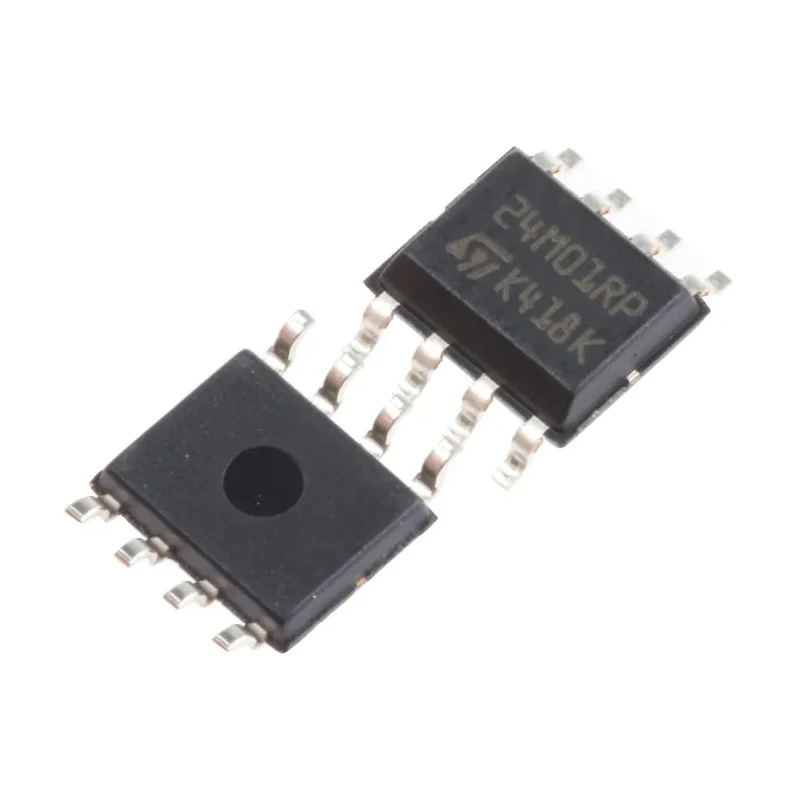

STMicroelectronics 1 MB Serial EEPROM 500 ns 8-Pin SOIC Serial-I2C M24M01-RMN6TP

STMicroelectronics M24M01-RMN6TP is a high-performance 1 MB serial EEPROM designed for demanding electronic applications requiring reliable and fast non-volatile memory storage.

This serial EEPROM is equipped with an 8-pin SOIC surface-mount package that simplifies PCB assembly while providing robust electrical characteristics. It communicates via a Serial-I2C interface, a common protocol in embedded devices for efficient serial data exchange.

Operating at a maximum clock frequency of 1 MHz, it ensures timely data transmission, while the device can operate over a wide voltage range from 1.8 V to 5.5 V, accommodating low-power and standard logic levels.

The component supports an operating temperature range spanning from -40°C to 85°C, which makes it suitable for industrial and automotive environmental conditions. It also complies with the automotive standard AEC-Q100, guaranteeing higher reliability in automotive electronics.

With a data retention period of up to 200 years and a maximum random access time of 500 ns, this EEPROM delivers durability and performance for long-term data storage and rapid access needs.

Its low supply current of 2 mA makes it energy efficient, beneficial for battery-powered and low-power devices. The memory organization is structured as 128 x 8 bits, supporting effective data management.

Common applications include data logging, configuration storage, and other memory requirement tasks in automotive systems, industrial controls, and consumer electronics. This serial EEPROM features a 1 MB memory size suitable for various electronic applications.

It supports Serial-I2C interface ensuring compatibility with standard communication protocols. The device operates at a maximum clock frequency of 1 MHz for efficient data transfers. Designed with 8 pins in a surface-mount SOIC package, ideal for compact circuit designs.

Operating voltage ranges from 1.8 V minimum to 5.5 V maximum to ensure wide compatibility. Temperature range from -40°C to 85°C guarantees reliable operation in harsh conditions. Data retention lasts up to 200 years, providing long-term data stability.

Supply current is low at 2 mA, optimizing power consumption in embedded systems. Meets automotive standard AEC-Q100, suitable for automotive and industrial uses. Physical dimensions are 5 mm length and 6.2 mm width, fitting in tight PCB layouts.

Maximum random access time is 500 ns, facilitating rapid data access. Explore extensive ranges of semiconductor memory chips and automotive-grade EEPROM components on EnvMart for enhanced performance in your electronic designs.
