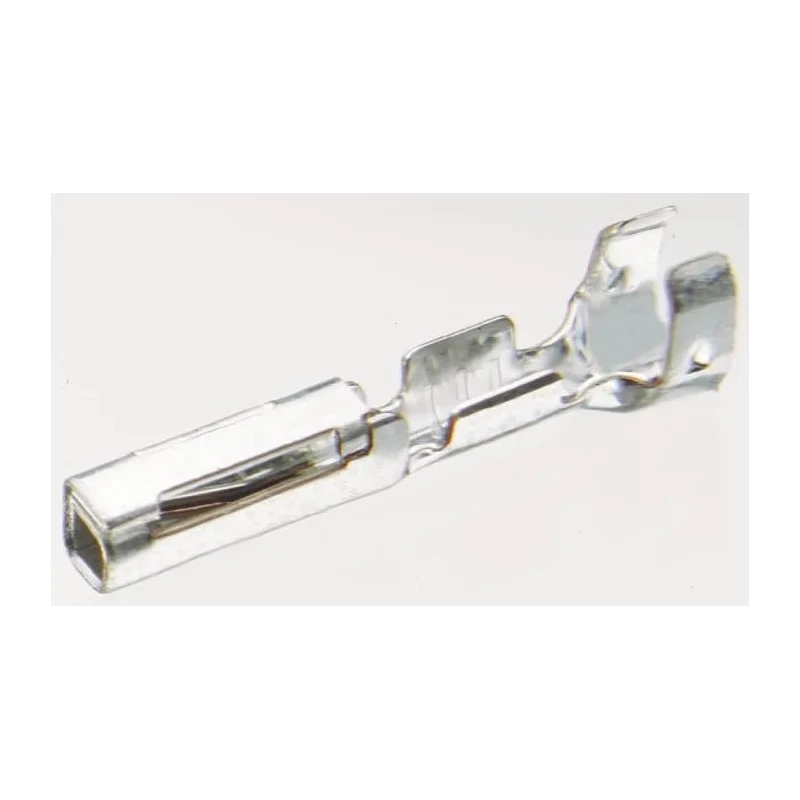

TE Connectivity MULTILOCK 040 Series Female Crimp Terminal, 22 AWG Min Crimp, 20 AWG Max, Gold-Plated Copper Alloy 173716-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 to +105 °C |
| Current | 5A |
| Length | 14.2mm |
| Model | 173716-2 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Series | MULTILOCK 040 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 0.04/0.07 Hybrid I/O Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 712-1943Brand: TE ConnectivityManufacturers Part No.: 173716-2 |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 20mΩ |
| Low level resistance | 1 mΩ max (initial) |
| Overall resistance | 10 mΩ max (final) |
Key Features
- Designed for use with MULTILOCK 0.04/0.07 Hybrid I/O Connector Housings.
- Rated for a current of 5A with a maximum contact resistance of 20 mΩ.
- Gold-plated copper alloy contact material ensures durability and optimal conductivity.
- Operates reliably between -30°C and 105°C in demanding environments.
- Crimp termination type allows for solid mechanical electrical connections.
- Compact 14.2 mm length fits well in high-density connector systems.
- Suitable for automotive and automation industrial applications.
- Snap-in fixing compatible with connector cavities for easy installation.
Product Description
TE Connectivity 173716-2 MULTILOCK 040 Series Female Crimp Terminal is a high-performance connector component designed for reliable electrical connections in various industrial sectors including automotive, automation, and manufacturing. Featuring a gold-plated copper alloy contact, this terminal supports wire sizes from 22 AWG (0.3 mm²) minimum to 20 AWG (0.5 mm²) maximum, ensuring excellent conductivity and resistance to corrosion.
The terminal operates efficiently under a current rating of 5A, with a maximum contact resistance of 20 mΩ, maintaining solid electrical performance even under load. Its temperature range spans from -30°C to 105°C, suitable for harsh industrial and automotive environments. The crimp termination style ensures a robust and mechanical connection to wire conductors, which simplifies installation and enhances connection stability.
The compact 14.2 mm terminal length is optimized for MULTILOCK 0.04/0.07 Hybrid I/O Connector Housings, supporting snap-in fixing for secure placement within connector cavities. This miniature high-density connector system allows for wire-to-wire and wire-to-board I/O solutions, ideal for signal transfer and power distribution applications.
TE Connectivity’s MULTILOCK connectors and contacts are engineered for durability and operational efficiency in demanding conditions, making them a preferred choice in industrial automation and automotive industries. The gold plating and copper alloy material combination provides a low-level resistance and high reliability in signal and power transmission tasks.
Designed for MULTILOCK Hybrid I/O Connector Housings compatible with snap-in fixing. Gold-plated copper alloy contact material provides low resistance and enhanced durability. Rated current: 5A with maximum contact resistance of 20 mΩ ensures dependable connectivity.
Operating temperature range: -30°C to 105°C for use in harsh environments. Crimp termination method facilitates secure mechanical wire connection. Compact 14.2 mm length supports high-density connector assemblies. Suited for automotive, industrial automation, and manufacturing signal transfer applications.
This product is a key component in power and signal connector assemblies, ideal for precise and robust electrical connectivity solutions. Explore more options in the Power Connectors category at EnvMart for complementary parts and tooling.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a current of 5A with a maximum contact resistance of 20 mΩ.
It operates reliably between -30°C and 105°C, making it suitable for harsh environments.
This terminal supports wire sizes from 22 AWG (0.3 mm²) minimum to 20 AWG (0.5 mm²) maximum.
The terminal has a compact length of 14.2 mm, which is optimized for high-density connector systems.
It features a crimp termination type, allowing for solid mechanical electrical connections.
This model is designed for use with MULTILOCK 0.04/0.07 Hybrid I/O Connector Housings.
The contact material is a gold-plated copper alloy, ensuring optimal conductivity and durability.
It is suitable for automotive and industrial automation applications, particularly for signal transfer and power distribution.
It features snap-in fixing compatible with connector cavities for easy installation and secure placement.
The maximum contact resistance is 20 mΩ, ensuring reliable connectivity.
The country of origin for this crimp terminal is India.
The gold plating provides low-level resistance and enhances the durability of the electrical connections.
