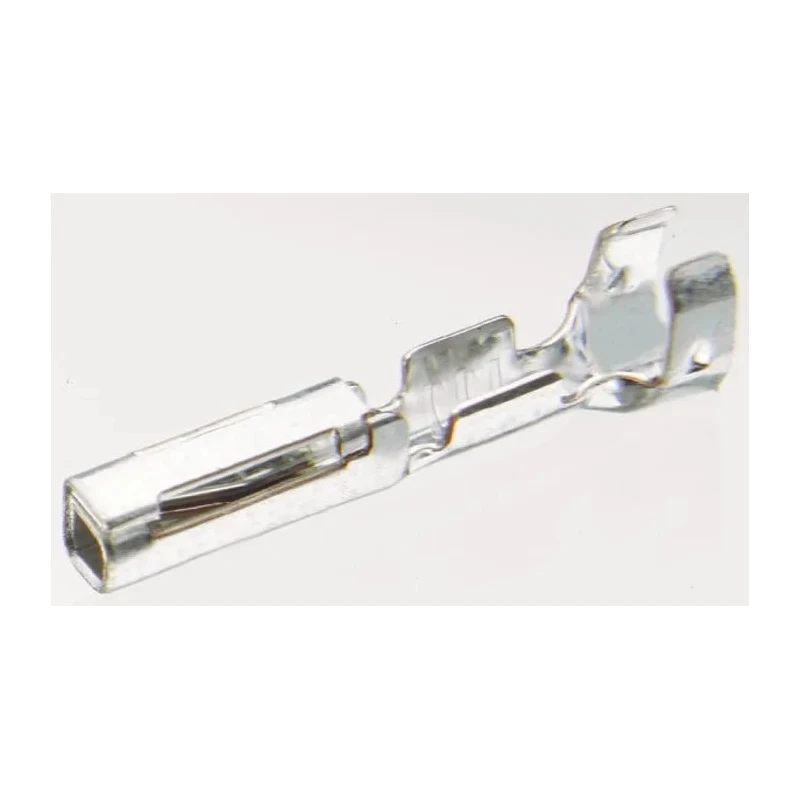

TE Connectivity MULTILOCK 040 Series Female Crimp Terminal 22 AWG Min Crimp, 20 AWG Max, Gold Plated Copper Alloy 173716-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 to +105 °C |
| Current | 5A |
| Length | 14.2mm |
| Model | 173716-2 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Series | MULTILOCK 040 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 0.04/0.07 Hybrid I/O Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 712-1943PBrand: TE ConnectivityManufacturers Part No.: 173716-2 |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 20mΩ |
| Low level resistance | 1 mΩ max (initial) |
| Overall resistance | 10 mΩ max (final) |
Key Features
- Gold plated copper alloy contacts ensure low contact resistance and durability.
- Supports a current rating of 5A for reliable electrical performance.
- Operating temperature range from -30°C to 105°C for harsh environment use.
- Crimp termination type provides secure and robust wire connections.
- Compatible with MULTILOCK 0.04/0.07 Hybrid I/O Connector Housing systems.
- Maximum contact resistance of 20 mΩ ensures efficient signal transmission.
- Snap-in fixing connector cavities for ease of assembly and maintenance.
- Widely used in automotive and industrial automation applications.
Product Description
TE Connectivity 173716-2 MULTILOCK 040 Series Female Crimp Terminal is a high-quality crimp terminal designed for reliable electrical connections in industrial, automotive, and automation sectors. Featuring gold plated copper alloy contacts, it supports wire sizes ranging from 22 AWG to 20 AWG, accommodating minimum wire sizes of 0.3 mm² and maximum of 0.5 mm². The terminal sustains a current rating of 5A and operates efficiently in temperatures between -30°C and 105°C, making it suitable for demanding environments.
This Crimp Terminal is part of the MULTILOCK connector system which offers a miniature high-density solution for wire to wire and wire to board I/O connections. The crimp contacts enable solid mechanical fixing and low electrical resistance, optimized for snap-in fixing connector cavities to accelerate assembly processes.
The terminal’s length of 14.2 mm allows for compact installation in electronic components and power connectors, supporting efficient wiring in automotive and industrial applications such as signal transfer and cable receptacles. This product provides a durable solution for cable connection needs, minimizing voltage drop with its low-level resistance profile and maintaining connection integrity under varying operational temperatures.
Gold plated copper alloy contacts provide corrosion resistance and enhanced conductivity. Crimp termination type ensures secure and vibration-resistant connections. Designed for MULTILOCK 0.04/0.07 Hybrid I/O Connector Housing compatibility.
Operating temperature range from -30°C to 105°C suits harsh industrial environments. Low contact resistance supports sensitive signal transmission and power applications. Snap-in fixing features enable quick installation and maintenance.
Compact 14.2 mm length maximizes space efficiency in connector assemblies. Reliable current rating of 5A for consistent performance under load. Applicable across automotive, industrial automation, and electronics manufacturing sectors.
Explore EnvMart’s comprehensive range of connectors and electrical components to find compatible MULTILOCK and other high-performance connector systems tailored for your industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a current rating of 5A, ensuring reliable electrical performance.
It operates efficiently within a temperature range of -30°C to 105°C, making it suitable for harsh environments.
This terminal accommodates wire sizes ranging from 22 AWG (0.3 mm²) to 20 AWG (0.5 mm²).
The terminal has a compact length of 14.2 mm, facilitating space-efficient installations.
It features a crimp termination type, providing secure and robust wire connections.
The maximum contact resistance is 20 mΩ, which supports efficient signal transmission.
Yes, it is designed for compatibility with MULTILOCK 0.04/0.07 Hybrid I/O Connector Housing systems.
The contacts are made from gold plated copper alloy, ensuring low contact resistance and enhanced conductivity.
It is widely used in automotive and industrial automation applications, particularly for signal transfer and cable receptacles.
It includes snap-in fixing connector cavities that enable quick assembly and maintenance.
The low-level resistance is 1 mΩ max (initial), which helps minimize voltage drop.
The country of origin for this terminal is India.
