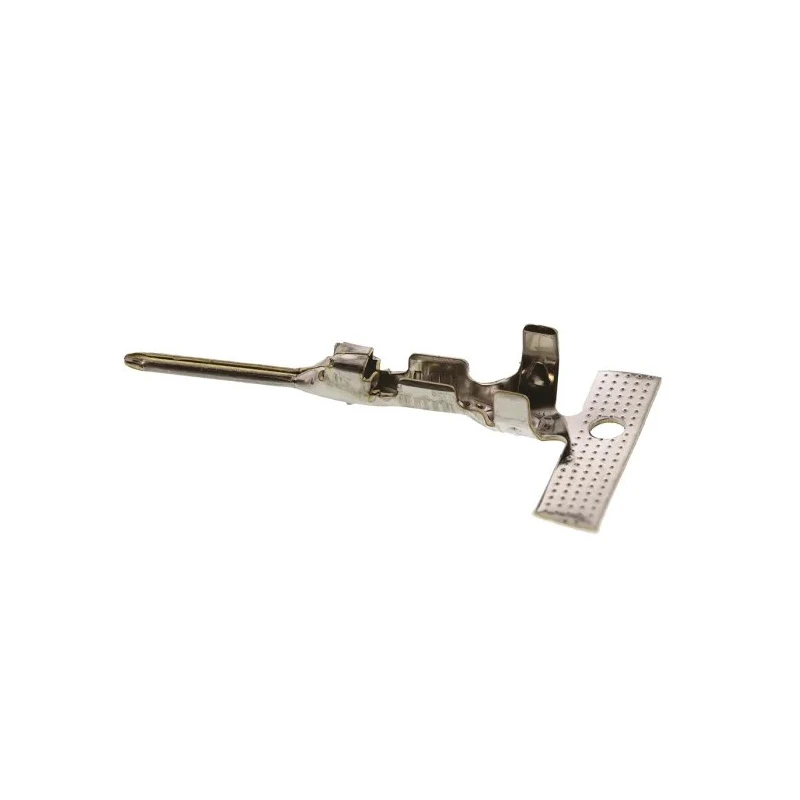

TE Connectivity MULTILOCK 040 Series Male Crimp Terminal 23 AWG Min, 20 AWG Max Tin Plated Brass Contacts 173682-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 to +105 °C |
| Current | 5A |
| Length | 14.2mm |
| Model | 173682-1 |
| Gender | Male |
| Contact Material | Brass |
| Current Rating | 15A |
| Series | MULTILOCK 040 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 040 Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 712-1842Brand: TE ConnectivityManufacturers Part No.: 173682-1 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 23AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 20mΩ |
| Low level resistance | 1 mΩ max (initial) |
| Overall resistance | 10 mΩ max (final) |
Key Features
- The terminal is compatible with 23 AWG minimum and 20 AWG maximum wire sizes.
- Constructed with brass contacts plated with tin for corrosion resistance.
- Current rating of 5 A suitable for typical power connector needs.
- Operates reliably within a temperature range of -30°C to 105°C.
- Termination type is crimp, providing solid mechanical cable attachment.
- Designed to snap into MULTILOCK 040 connector housing cavities for secure fitting.
- Contact resistance max 20 mΩ contributes to minimal signal loss.
- No special standards or approvals are associated with this product.
Product Description
TE Connectivity 173682-1 MULTILOCK 040 Series Male Crimp Terminal is a high-quality, tin-plated brass crimp contact designed for wire-to-wire and wire-to-board electrical connections. It is part of the MULTILOCK 040 connector family, widely used in automotive and industrial automation sectors where reliable electrical performance under varying conditions is critical.
This male Crimp Terminal supports wire gauges from 23 AWG (0.3 mm²) minimum to 20 AWG (0.5 mm²) maximum, accommodating diverse cabling requirements. It is rated for a current of up to 5 amperes and operates effectively between -30°C and 105°C, making it suitable for challenging thermal environments often found in manufacturing and transportation industries.
The contact plating of tin over brass ensures corrosion resistance and optimal conductivity, while the crimp termination guarantees a secure mechanical bond to cables. The 14.2 mm length facilitates compact installation in connector cavities, which snap-in for ease of assembly during manufacturing processes.
While not carrying specific certifications, the terminal offers low contact resistance, with a maximum of 20 milliohms, helping maintain signal integrity. It is engineered for use with MULTILOCK 040 connector housings, ensuring compatibility within this miniaturized high-density connector system.
Compatible with 23 AWG to 20 AWG wire sizes. Tinned brass contact material for durability and conductivity. Crimp termination ensuring reliable cable attachment. Operates within -30°C to 105°C temperature range. Rated current: 5 A for typical industrial applications.
Low contact resistance for superior signal transfer. Snap-in fitment for MULTILOCK 040 connector housings. Length: 14.2 mm providing compact footprint. Designed for automotive and industrial automation uses.
This product is ideal for industrial, automotive, manufacturing, and circuit board assembly applications where secure and efficient electrical connections are implemented. The MULTILOCK series connectors provide a robust solution for high-density electrical interconnectivity needs.
Explore more related power connectors and crimp contacts to enhance your electronic assembly and connectivity solutions with EnvMart's comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates effectively within a temperature range of -30°C to 105°C.
This model supports wire sizes from 23 AWG (0.3 mm²) minimum to 20 AWG (0.5 mm²) maximum.
The current rating for this terminal is 5 A, suitable for typical power connector needs.
It features brass contacts that are plated with tin for corrosion resistance and optimal conductivity.
The length of this terminal is 14.2 mm, allowing for compact installation in connector cavities.
This model uses crimp termination, providing a secure mechanical bond to cables.
The maximum contact resistance is 20 milliohms, contributing to minimal signal loss.
Yes, it is designed to snap into MULTILOCK 040 connector housing cavities for secure fitting.
It is ideal for use in automotive and industrial automation sectors where reliable electrical performance is critical.
The initial low level resistance is a maximum of 1 mΩ.
The overall resistance is a maximum of 10 mΩ at final conditions.
The country of origin for this terminal is India.
