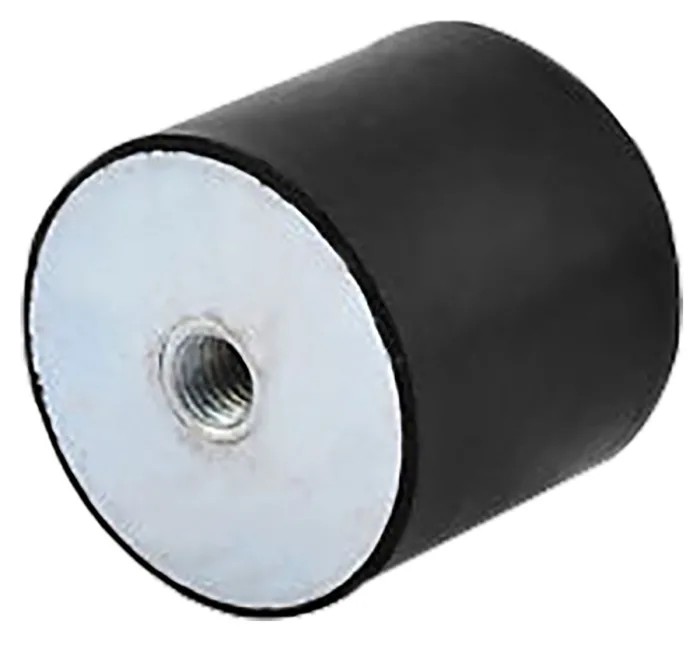

RS PRO Cylindrical M4 Anti-Vibration Mount Female to Female Bobbin with 9.43 kg Compression Load, 15 mm OD, 12 mm 126-3922
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Material | Natural Rubber |
| Model | 126-3922 |
| Mount Type | Screw |
| Outside diameter | 15mm |
| Maximum Operating Temperature | 100°C |
| Thread Size | M4 |
| Standards/Approvals | RoHS |
| Static Load Rating | 9.43kg |
| Anti Vibration Mount Type | Female to Female Bobbin |
| Shore Hardness | 45 Shore A |
| Compression Load | 9.43kg |
| Compression Deflection | 1mm |
| Foot Colour | Black |
| Foot Shape | Cylindrical |
| Foot Height | 12mm |
Key Features
- Constructed from natural rubber for effective vibration absorption.
- Female to female thread configuration with M4 screw mount type.
- Black cylindrical foot shape with 45 Shore A hardness.
- Maximum operating temperature of 100°C suitable for industrial environments.
- Provides 1 mm compression deflection to reduce equipment vibration.
- Suitable for use with engines, compressors, motors, and electronic control panels.
- Designed to handle a static load rating of 9.43 kg and shear load up to 2.97 kg.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
RS PRO 126-3922 Cylindrical M4 Anti-Vibration Mount is a female to female bobbin isolation mount manufactured from natural rubber, optimized to significantly reduce vibration in engines and machinery. It is designed for industrial applications where high shear and compression vibration damping is required.
This anti-vibration mount has a 15 mm outside diameter and 12 mm foot height with an M4 thread size, providing an easy and secure screw mount installation. The mount achieves a maximum static load rating and compression load of 9.43 kg and a shore hardness of 45 Shore A, enabling effective vibration absorption under demanding conditions.
The product is suitable for large static generator engines, compressors, motors, electronic control panels, and engine mounts, making it versatile for various industrial, manufacturing, and mechanical environments. Its maximum operating temperature of 100°C ensures reliability even in elevated temperature scenarios.
Additional features include a black cylindrical foot shape with a compression deflection of 1 mm, enhancing vibration isolation performance. The product complies with RoHS standards, ensuring its environmental friendliness and suitability for modern industrial compliance requirements.
Constructed from natural rubber for excellent vibration absorption. Female to female mounting with M4 thread screw type. Designed for industrial use with 9.43 kg compression load capacity. Black cylindrical foot with 45 Shore A hardness for durability.
Works reliably up to 100°C operating temperature. Suitable for large engine mounts, compressors, and electronic panels. Provides 1 mm compression deflection to minimize vibrations. RoHS compliant to meet environmental standards.
This RS PRO anti-vibration mount is made in India, ensuring quality manufacturing standards. It is an ideal choice for applications requiring robust vibration isolation to protect equipment and extend operational life.
Explore more in our Machine Mounts category for compatible industrial solutions.
Explore more products in our Anti Vibration Mounts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum static load rating of this anti-vibration mount is 9.43 kg.
This model features an M4 thread size for secure screw mounting.
It is constructed from natural rubber, which is effective for vibration absorption.
The maximum operating temperature for this unit is 100°C.
The mount provides a compression deflection of 1 mm to help reduce vibrations.
This model has a shore hardness of 45 Shore A, which contributes to its vibration damping capabilities.
The outside diameter is 15 mm and the foot height is 12 mm.
It is suitable for use with large static generator engines, compressors, motors, and electronic control panels.
Yes, it complies with RoHS standards, ensuring environmental safety.
This is a female to female bobbin type anti-vibration mount designed for screw installation.
This anti-vibration mount is manufactured in India.
The shear load capacity of this anti-vibration mount is up to 2.97 kg.
